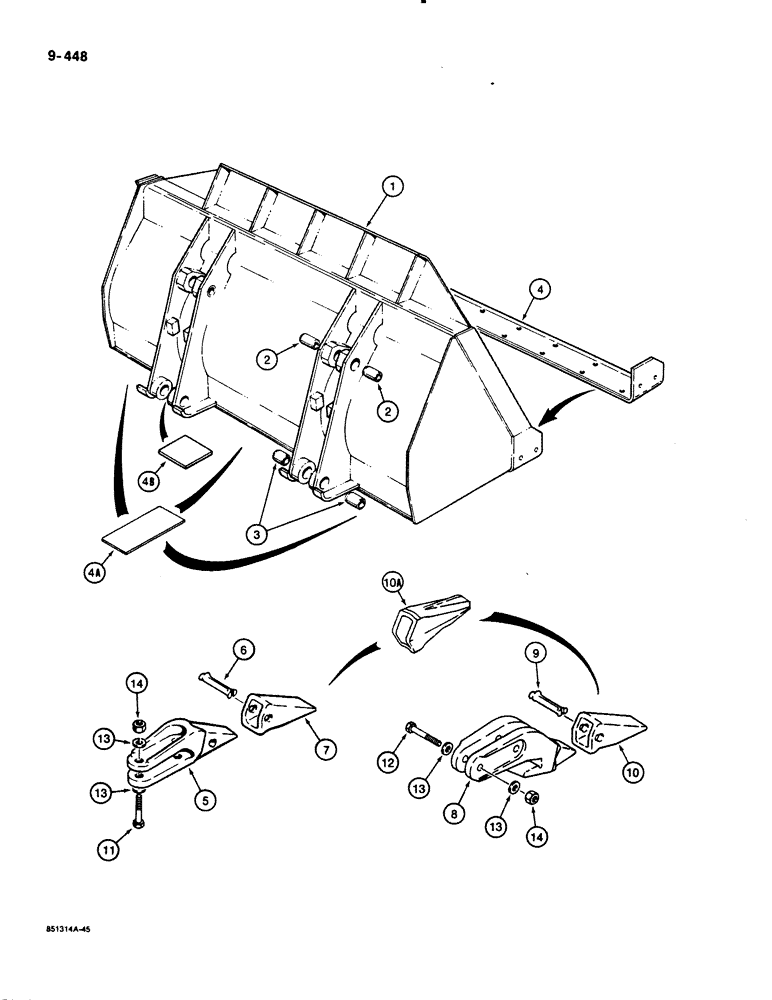

Запчасти Case 1450B (9-448) - LOADER BUCKET, *WITH CORNER TEETH - TEETH USE 1" DIA 2-1/4 CUBIC YARD BCKT (1.72 CUBIC METER) (09) - CHASSIS/ATTACHMENTS

1

R52681

BUCKET ASSEMBLY - machinery item, order from Machinery Price List, Includes: Ref. 2 - 4B

1шт.

2

D53823

BUSHING

- bucket, upper

4шт.

3

R28235

BUSHING

- bucket, lower

4шт.

4

R51169

EDGE, CUTTING

CUTTING EDGE - bucket, uses 1" diameter mounting hardware for teeth

1шт.

4a

R52652

LARGE PLATE

PLATE - wear, weld on

3шт.

4b

R52844

PLATE

- reinforcement, weld on

2шт.

R51174

TEETH

ASSEMBLY - bucket, center, heavy duty, use 1"dia mounting hardware, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly, heavy duty, use 1"dia mounting hardware

1шт.

6

R29117

PIN, ROLL

flex, heavy duty, use 1"dia mounting hardware

1шт.

7

R51388

POINT

tooth, standard forged, if used, heavy duty, use 1"dia mounting hardware

1шт.

R51175

TOOTH

ASSEMBLY - corner, left-hand tooth assembly shown, heavy duty, use 1"dia mounting hardware, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

SHANK - corner tooth, heavy duty, use 1"dia mounting hardware

1шт.

9

R29117

PIN, ROLL

flex, heavy duty, use 1"dia mounting hardware

1шт.

10

R51388

POINT

tooth, standard forged, if used, heavy duty, use 1"dia mounting hardware

1шт.

10a

R54257

POINT

tooth, star, service replacement option, if used, heavy duty, use 1"dia mounting hardware

1шт.

11

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4", grade 8, heavy duty, use 1"dia mounting hardware

12шт.

12

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

- hex head, 1" - 8 NC x 4-1/2", grade 8, heavy duty, use 1"dia mounting hardware

4шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1", hardened, heavy duty, use 1"dia mounting hardware

32шт.

14

131-1221

LOCK NUT,1"-8, GC

hex, self-locking, 1" - 8, heavy duty, use 1"dia mounting hardware NC, plated

16шт.
