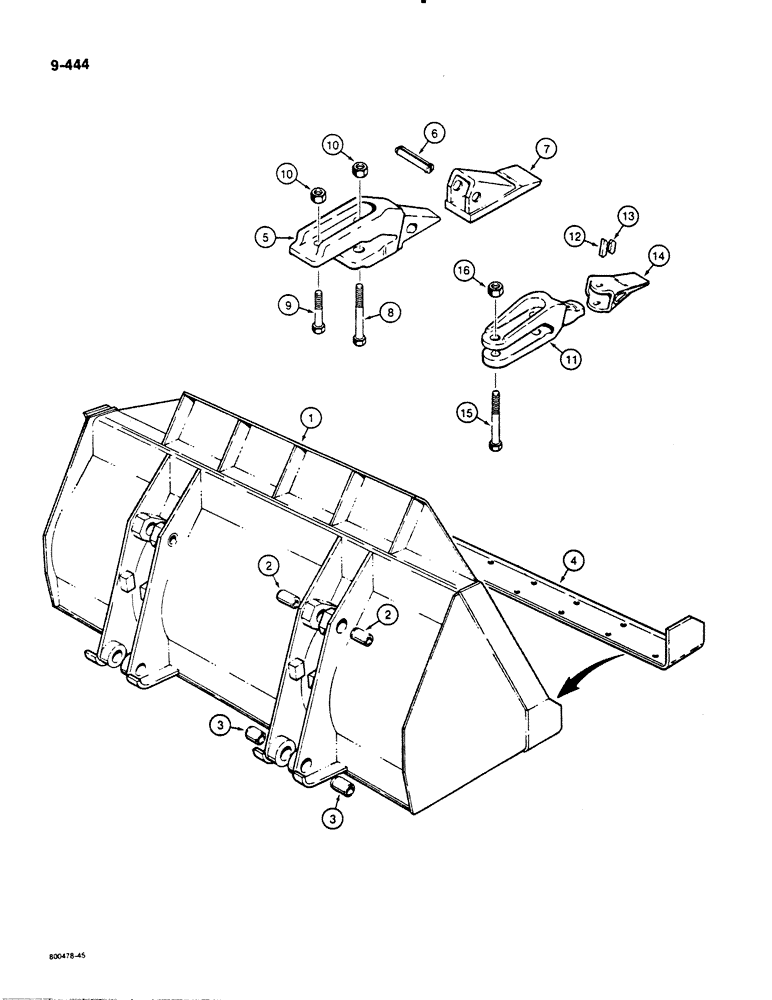

Запчасти Case 1450B (9-444) - LODR BUCKET, *W/O CORNER TEETH, 2-1/4" CUBIC YARD BCKT (1.72 CUBIC METER) (09) - CHASSIS/ATTACHMENTS

1

R28155

BUCKET ASSEMBLY - machinery item, order from Machinery Price List, Includes: Ref. 2 - 4

1шт.

2

D53823

BUSHING

bucket, upper

4шт.

3

R28235

BUSHING

bucket, lower

4шт.

4

R28276

BLADE

CUTTING EDGE - bucket

1шт.

R35260

TOOTH

ASSEMBLY - bucket, Includes: Ref. 5 - 7

8шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly, standard bucket

1шт.

6

L32090

PIN

FLEX PIN - tooth assembly, standard bucket

1шт.

7

L32089

POINT

tooth assembly, standard bucket

1шт.

8

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

Standard bucket teeth Hex, 3/4"-10 x 3 1/4", G5

8шт.

9

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Standard bucket teeth Hex, 3/4"-10 x 2 3/4", G5

8шт.

10

25-1012

NUT,3/4"-10, G5

Standard bucket teeth 3/4"-10, G5

16шт.

R31774

TOOTH

ASSEMBLY - bucket, heavy duty, Includes: Ref. 11 - 14

8шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly, heavy duty bucket

1шт.

12

R31916

PIN

- tooth assembly, heavy duty bucket

1шт.

13

R31917

KEY

LOCK - pin, heavy duty bucket teeth

1шт.

14

R31915

POINT

tooth assembly, heavy duty bucket

1шт.

15

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

Heavy duty bucket teeth Hex, 3/4"-10 x 3 1/4", G5

16шт.

16

25-1012

NUT,3/4"-10, G5

Heavy duty bucket teeth 3/4"-10, G5

16шт.
