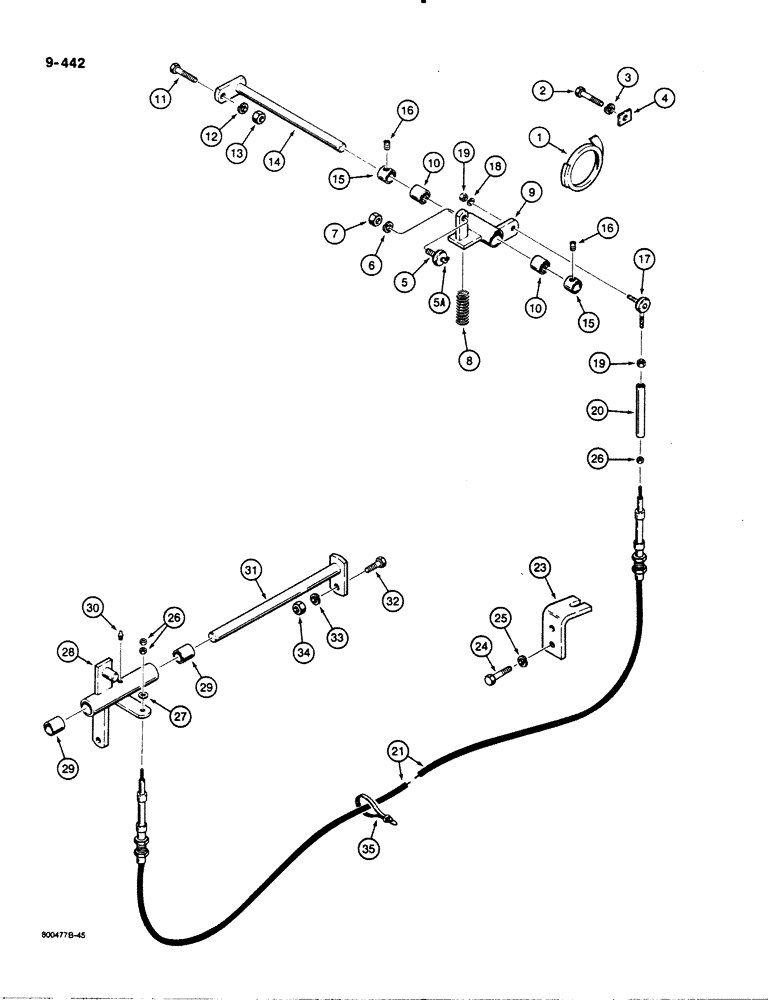

Запчасти Case 1450B (9-442) - LOADER HEIGHT CONTROL, CABLE AND LINKAGE AT MAIN FRAME UPRIGHT (09) - CHASSIS/ATTACHMENTS

1

R40714

TUBE

CAM - height control, 4-1/2" (114 mm) OD, no longer used, order R47188 cam and R47192 bellcrank (ref. 9)

1шт.

1

R47188

TUBE

CAM - height control, 5" (127 mm) OD, must be used with R47192 bellcrank (ref. 9)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

R40709

PLATE

- height control

1шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

FOLLOWER - cam, Includes: Ref. 5A

1шт.

5a

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16" drive type

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

8

R27874

SPRING

- height control, rests on main frame upright

1шт.

9

R32127

BEARING

BELLCRANK - cam follower mounting lug is 2-1/8" (53 mm) high, no no longer used, order R47192 bellcrank and R47188 cam (ref. 1), Includes: Ref. 10

1шт.

9

R47192

TUBE

BELLCRANK - cam follower mounting lug is 1-11/16" (43 mm) high, must be used with R47188 cam (ref. 1), Includes: Ref. 10

1шт.

10

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - needle, bellcrank

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

R29103

TUBE

SHAFT - lever mounting

1шт.

15

D43620

COLLAR

- locking, control lever, uses 5/16" set screw, no longer available, replace with D81756 collar assembly

2шт.

16

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

If used Hex Soc, 5/16"-18 x 5/16", Cup Pt

2шт.

15

D81756

COLLAR

ASSEMBLY - locking, includes 1/4" set screw, Includes: Ref. 16

2шт.

16

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC

1шт.

17

R43627

BALL

JOINT - 1/4" - 28 NF

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

19

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

20

R29087

CONNECTOR, ELEC

SLEEVE - cable

1шт.

21

R28833

CABLE

- height control

1шт.

23

R29086

BRACKET

- cable retaining

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

129-37

NUT,#10-32

2шт.

27

195-512

WASHER,#10

- flat, 3/16", plated

1шт.

28

R29043

ROCKER

ARM ASSEMBLY - rocker, height control, Includes: Ref. 29 and 30

1шт.

29

R47704

BRONZE BUSHING,0.753" ID x 1.003" OD x 0.50"

BUSHING - bronze, replaces needle bearing in some rocker arms

2шт.

30

219-410

LUBE NIPPLE,3/16" NPTF

location on arm may vary 3/16" x .47" lg, Drive

1шт.

31

R29047

SHAFT

- rocker arm

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
