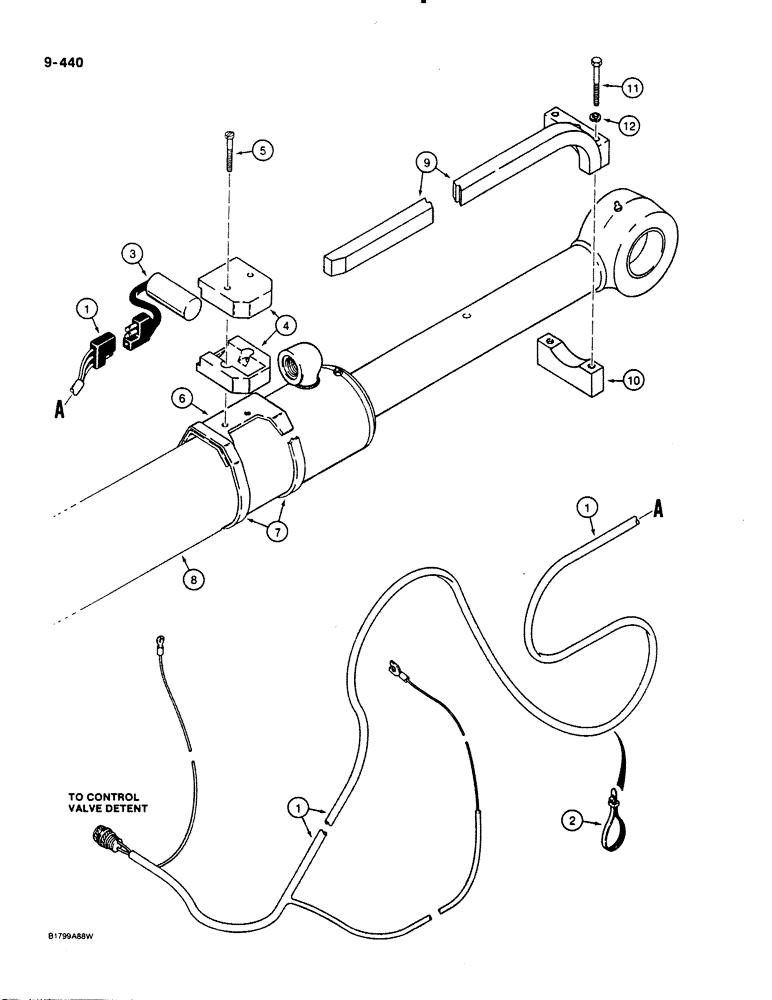

Запчасти Case 1450B (9-440) - LOADER RETURN-TO-DIG, *WITH ELECTRICAL SENSING-TYPE SWITCH, IF USED (09) - CHASSIS/ATTACHMENTS

1

R53038

HARNESS

- return-to-dig switch to magnetic detent section of control valve and to engine oil pressure switch behind the instrument panel, includes magnetic detent connector

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

R47120

SWITCH

- return-to-dig, electrical sensing-type

1шт.

4

L117005

CLAMP

- return-to-dig switch, plastic

2шт.

5

182-589

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1-3/4", plated

2шт.

6

R52656

LARGE PLATE

BRACKET - switch mounting

1шт.

7

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - adjustable, switch mounting bracket to bucket cylinder

2шт.

8

G34520

CYLINDER

- loader bucket, left-hand, parts list Fig. 8-366

1шт.

9

R53033

ARM

- return-to-dig

1шт.

10

R53032

BLOCK

- arm retaining

1шт.

11

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
