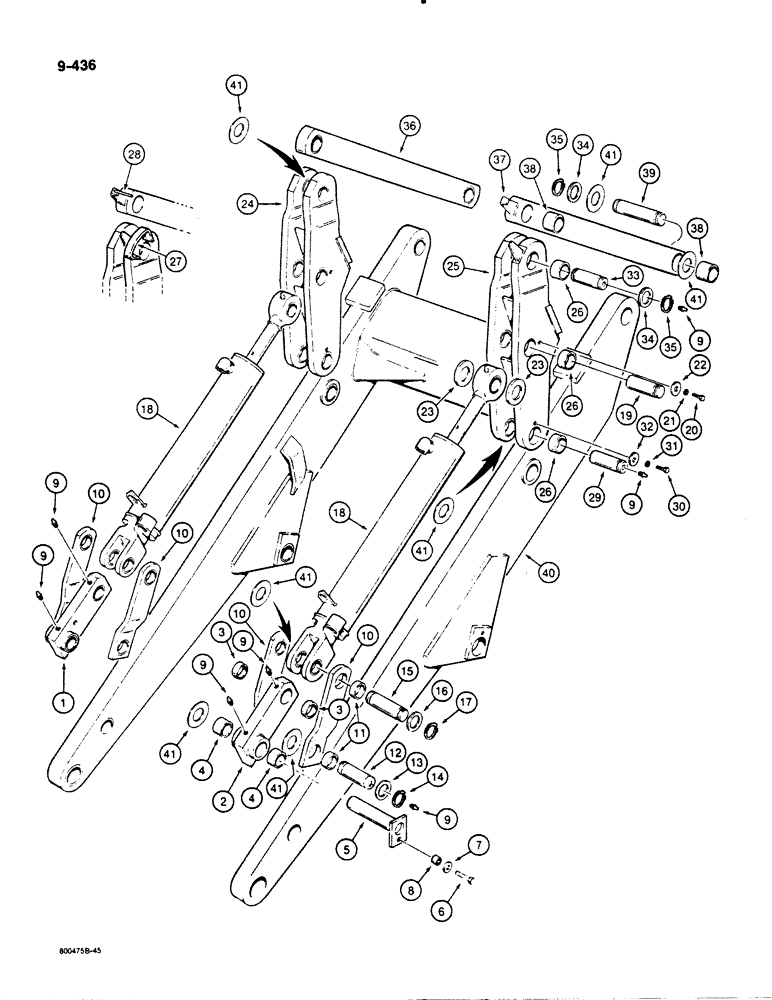

Запчасти Case 1450B (9-436) - LOADER LIFT FRAME, BUCKET CYLINDERS AND LINKS (09) - CHASSIS/ATTACHMENTS

1

R35652

LINK

- main frame to bucket cylinder, left-hand, Includes: Ref. 3 and 4

1шт.

2

R40711

DRAG LINK

LINK - main frame to bucket cylinder, right-hand, Includes: Ref. 3 and 4

1шт.

3

G34984

BUSHING

- 7/8" (22 mm) wide x 2-1/4" (57 mm) ID

2шт.

4

D52580

BUSHING

- 1-1/2" (38 mm) wide x 2-1/4" (57 mm) ID

2шт.

5

R44446

AXLE PIN

PIN - link to main frame

2шт.

6

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242 Hex, 3/4"-10 x 2", G8

2шт.

7

D31328

WASHER

- special

2шт.

8

T25138

BUSHING

SPACER - pin

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

10шт.

10

R28246

LINK

- bucket cylinder to lift frame, Includes: Ref. 11

4шт.

11

G34984

BUSHING

- link

2шт.

12

R32121

PIN

- link to lift frame

2шт.

13

L47706

WASHER

- special

4шт.

14

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

4шт.

15

R28285

PIN

- link to bucket cylinder

2шт.

16

L47706

WASHER

- special

4шт.

17

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

4шт.

18

G34520

CYLINDER

- loader bucket, parts list Fig. 8-366

2шт.

19

R28279

PIN

- bucket cylinder, rod end

2шт.

20

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

23

F62081

BUSHING

WASHER - special, spacer

4шт.

24

R41247

LEVER

- loader bucket, left-hand

1шт.

25

R41248

LEVER

- loader bucket, right-hand, Includes: Ref. 26

1шт.

26

G34984

BUSHING

- lever

6шт.

27

R27638

INDICATOR

- clam bucket position, see Fig. 9-566 for decal

1шт.

28

D51707

PIN

POINTER - clam bucket position

1шт.

29

R32029

PIN

- bucket lever to loader lift frame

2шт.

30

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

32

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

33

R41276

AXLE PIN

PIN - lever to bucket link

2шт.

34

L47706

WASHER

- special

8шт.

35

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

8шт.

36

R28186

LINK

- bucket, left-hand

1шт.

37

R28188

LINK

- bucket, right-hand, Includes: Ref. 38

1шт.

38

L45223

BUSHING

- links

2шт.

39

R34482

PIN

- bucket mounting

2шт.

40

REF

INSTRUCTION

FRAME - loader lift, for part number and bushings see Fig. 9-434

1шт.

41

D29125

WASHER,57.94mm ID x 114.3mm OD x 1.59mm Thk

- shim, linkage, 1/16" (1.5 mm) thick, hardened

1шт.
