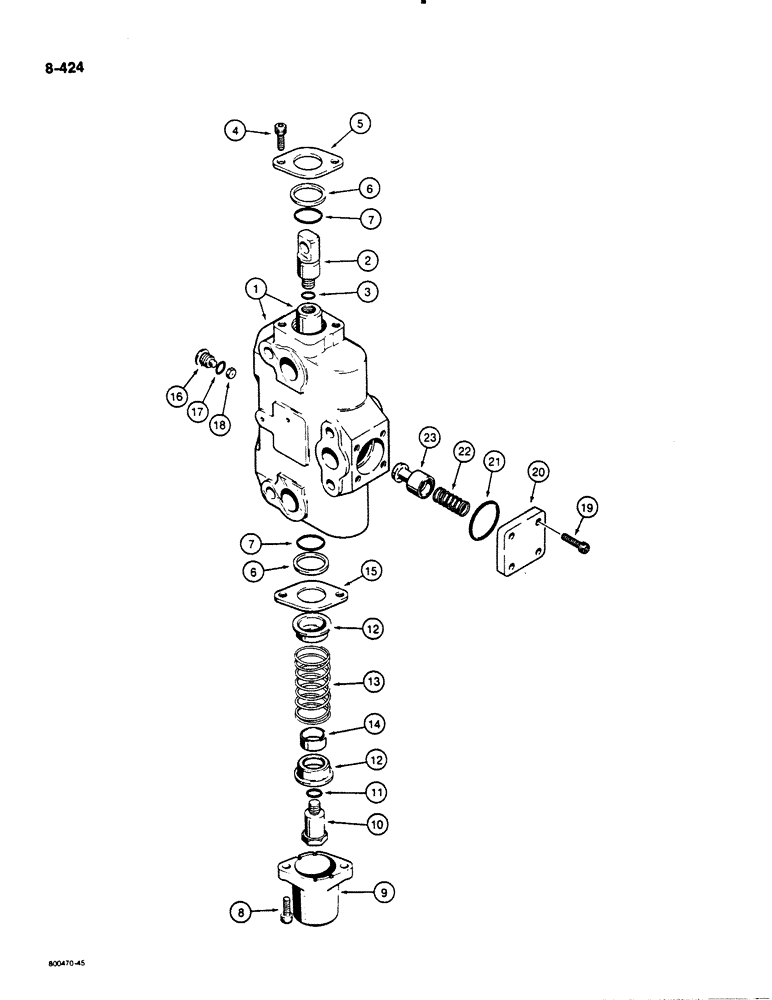

Запчасти Case 1450B (8-424) - DOZER TILT, TILT AND PITCH, OR, ANGLE SECTION (08) - HYDRAULICS

D80365

VALVE

SECTION ASSEMBLY - dozer blade tilt, tilt and pitch, or angle, Includes: Ref. 1 - 23

1-2шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

R30844

CONNECTOR, ELEC

EYE - spool, connector, Includes: Ref. 3

1шт.

4

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

2шт.

5

R30862

SPACER

PLATE - eye end, spacer

1шт.

6

D54585

WASHER

RETAINER - seal, spool

2шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

2шт.

8

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

2шт.

9

R30859

CAP

- end

1шт.

10

R30845

SCREW

BOLT - special, spool end, Includes: Ref. 11

1шт.

12

R30856

COLLAR

SEAT - centering spring

2шт.

13

R30861

SPRING

CENTERING SPRING - spool

1шт.

14

R30855

BUSHING

SPACER - spool travel

1шт.

15

R30857

SPACER

- end cap

1шт.

16

R30847

PLUG

- load response, Includes: Ref. 17

1шт.

18

R31053

PLATE

- orifice

1шт.

19

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

4шт.

20

D70588

PLATE ASSY.

PLATE - load check

1шт.

21

D70589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

- load check plate

1шт.

22

D77636

VALVE SPRING

SPRING - poppet

1шт.

23

D77634

SPOOL

POPPET - load check

1шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, spool eye

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, bolt

1шт.

17

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

1шт.
