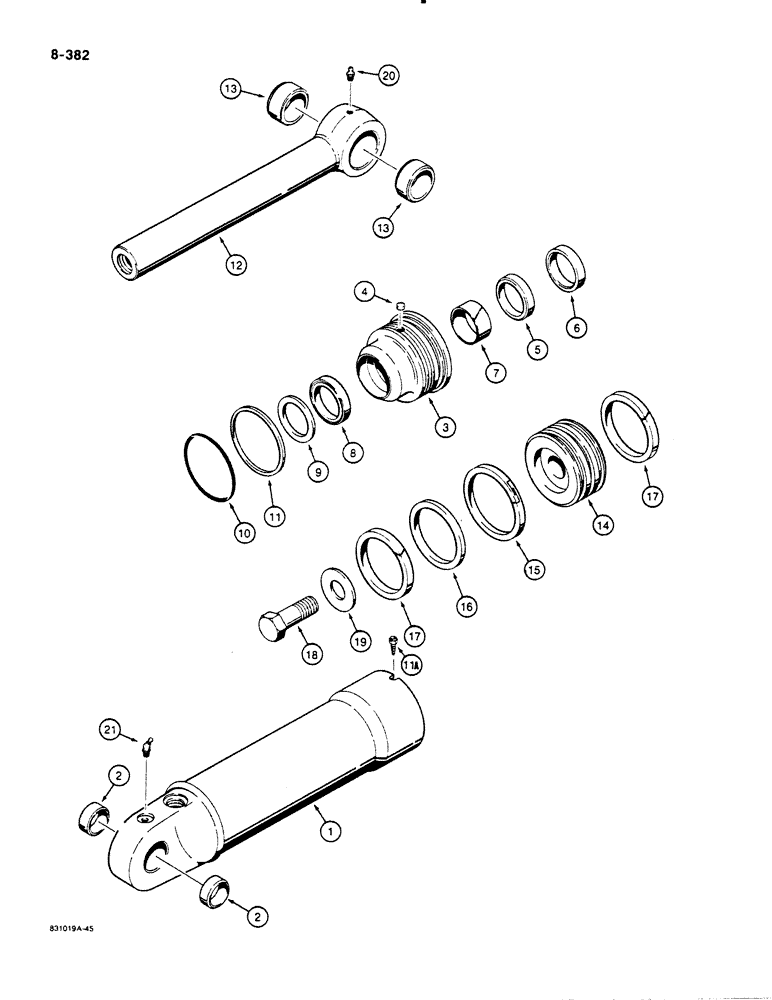

Запчасти Case 1450B (8-382) - RIPPER CYLINDERS (08) - HYDRAULICS

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, ripper, right-hand, Includes: Ref. 1 - 21

1шт.

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - 4" (102 mm) ID x 10" (254 mm) stroke, ripper, left-hand, Includes: Ref. 1 - 21

1шт.

1

G100284

TUBE,18.75" L

- G101272 cylinder, right-hand, Includes: Ref. 2

1шт.

1

G100285

TUBE,18.75" L

- G101273 cylinder, left-hand, not shown, Includes: Ref. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G109423

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G109423

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109423

1шт.

8

G100778

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N G109423

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109423

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of Seal Kit P/N G109423

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G100290

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- rubber, piston

1шт.

Part of Seal Kit P/N G109423

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G109423

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G109423

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G109423

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, Ref. 8 P/N G107923, Ref. 9, 10, 11, 15, 16 and 17

1шт.
