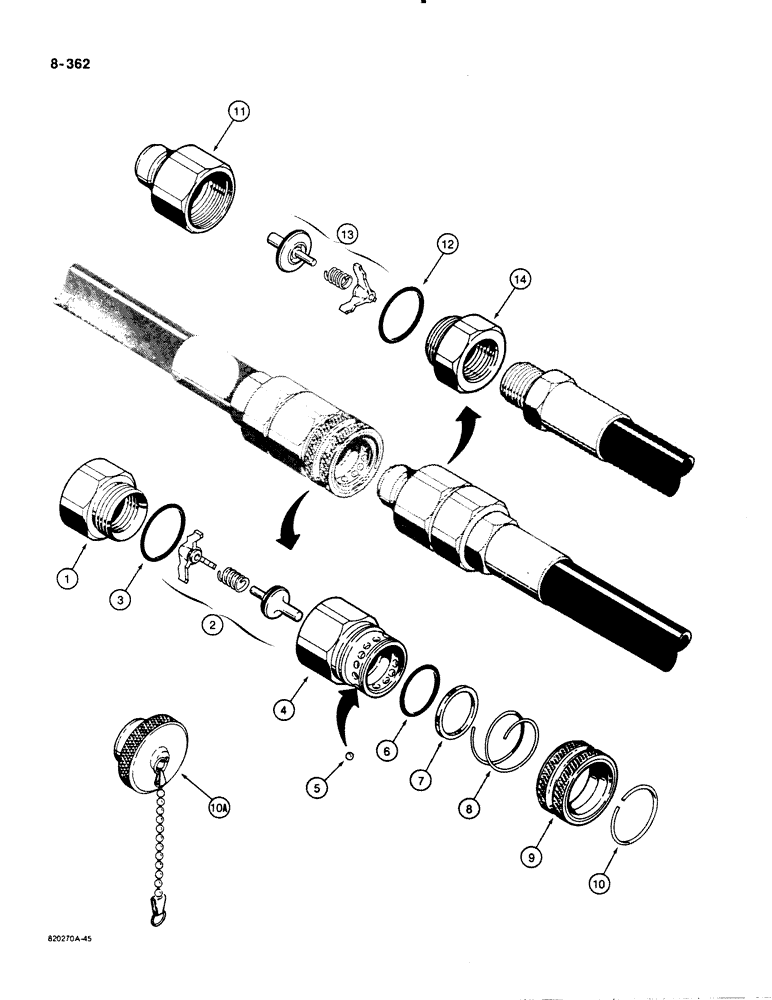

Запчасти Case 1450B (8-362) - HYDRAULIC QUICK DISCONNECT COUPLINGS, D52800 FEMALE COUPLING (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - quick disconnect, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

end

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

coupling

1шт.

4

D53916

BODY

coupling

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

O-RING - body

1шт.

7

D54276

RING

BACKUP - O-ring

1шт.

8

D31979

VALVE SPRING

sleeve

1шт.

9

D31980

SLEEVE CYLINDER

ball retaining

1шт.

10

D31981

RING

retaining

1шт.

10a

D39924

PLUG

dust, aluminum, for female coupling

1шт.

D52694

QUICK MALE COUPLING

ASSEMBLY - quick disconnect, male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

coupling, male

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

body, male coupling

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, male

1шт.

14

D31975

FITTING

end, male coupling

1шт.
