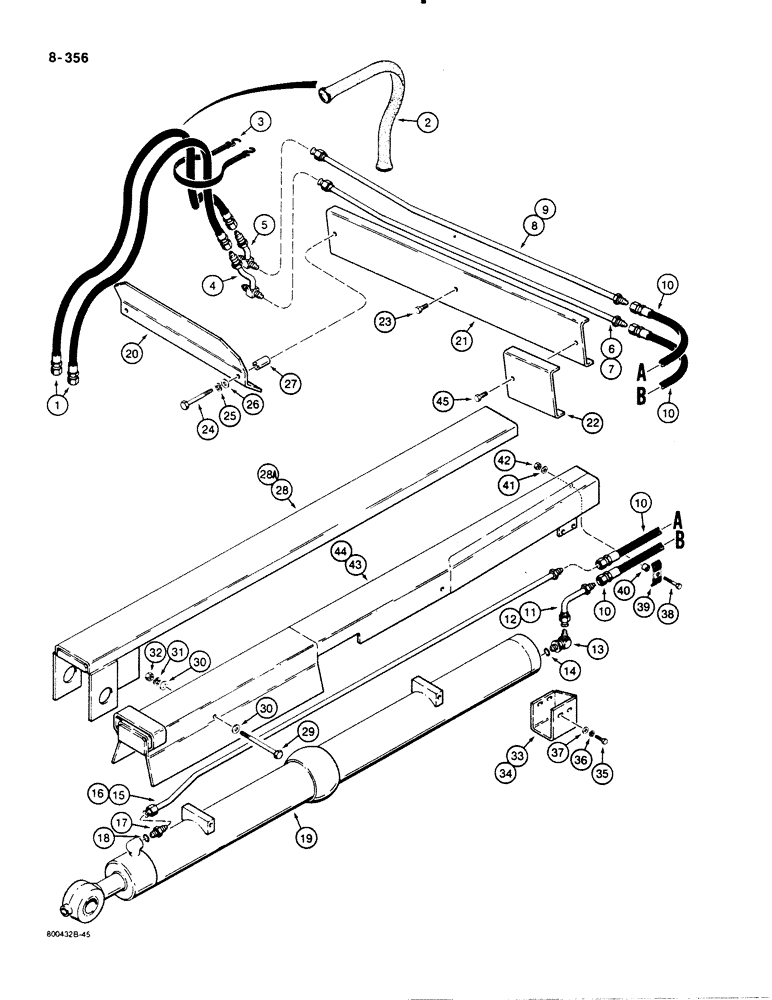

Запчасти Case 1450B (8-356) - DOZER ANGLE HYDRAULIC CIRCUIT, ANGLE TILT PITCH DOZER MODELS GRILLE TO CYL. (08) - HYDRAULICS

1

W10686

HOSE

- 56" (1422 mm) long

2шт.

2

R52544

HOSE PROTECTION

SLEEVE - hoses, replaces tie strap used on some models

1шт.

3

R34737

STRAP

- hoses

1шт.

4

R37246

TUBE,1/2" OD x 3.03, 2.24" L

TEE - lower

1шт.

5

R37244

TEE

- upper

1шт.

6

R37229

TUBE,0.5" OD x 45.05, 4.4" L

- left-hand, lower

1шт.

7

R37231

TUBE,1/2" OD x 47.1, 4.4" L

- right-hand, lower

1шт.

8

R37235

TUBE,1/2" OD x 45.5, 4.5" L

- right-hand, upper

1шт.

9

R37233

TUBE,1/2" OD x 46.7, 4.5" L

- left-hand, upper

1шт.

10

R38217

HOSE,12.7mm ID x 1143mm L, SAE 100R2

- 45" (1143 mm) long

4шт.

11

R38284

TUBE,0.5" OD

- left-hand, closed end of cylinder

1шт.

12

R38286

TUBE,0.5" OD x 2.55, 3.85" L

- right-hand, closed end of cylinder

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

15

R37326

TUBE,0.5" OD x 61.7, 1.44" L

- right-hand, rod end of cylinder

1шт.

16

R37328

TUBE,0.5" OD x 61.7, 1.44" L

- left-hand, rod end of cylinder

1шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 18 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

19

G102497

CYLINDER BLOCK

CYLINDER - angle, parts list Fig. 8-380

2шт.

20

R37251

GUARD

- fittings, center

1шт.

21

R37250

GUARD ASSY.

GUARD - tubes

2шт.

22

R38125

GUARD

- end

2шт.

23

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , Replaces regular bolt, lock washer used on some models Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.

24

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4", plated

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

27

R37265

SPACER

- center guard

2шт.

28

R41888

GUARD ASSY.

GUARD - cylinder rod, 5-3/16" wide between rear mounting ears, if used

2шт.

28a

R49246

GUARD

- cylinder rod, 4-13/16" wide between rear mounting ears, if used

2шт.

29

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

4шт.

30

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

8шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

33

R38398

GUARD ASSY.

GUARD - cylinder, left-hand

1шт.

34

R38399

GUARD ASSY.

GUARD - cylinder, right-hand

1шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

37

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

38

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

39

R25782

CLAMP

- hoses to cylinder guard

2шт.

40

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- clamp

2шт.

41

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

42

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

43

R37303

PROTECTOR

GUARD - cylinder, left-hand

1шт.

44

R37304

PROTECTOR

GUARD - cylinder, right-hand

1шт.

45

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated, Replaces regular bolt, lock washer, and flat washer used on some models

2шт.
