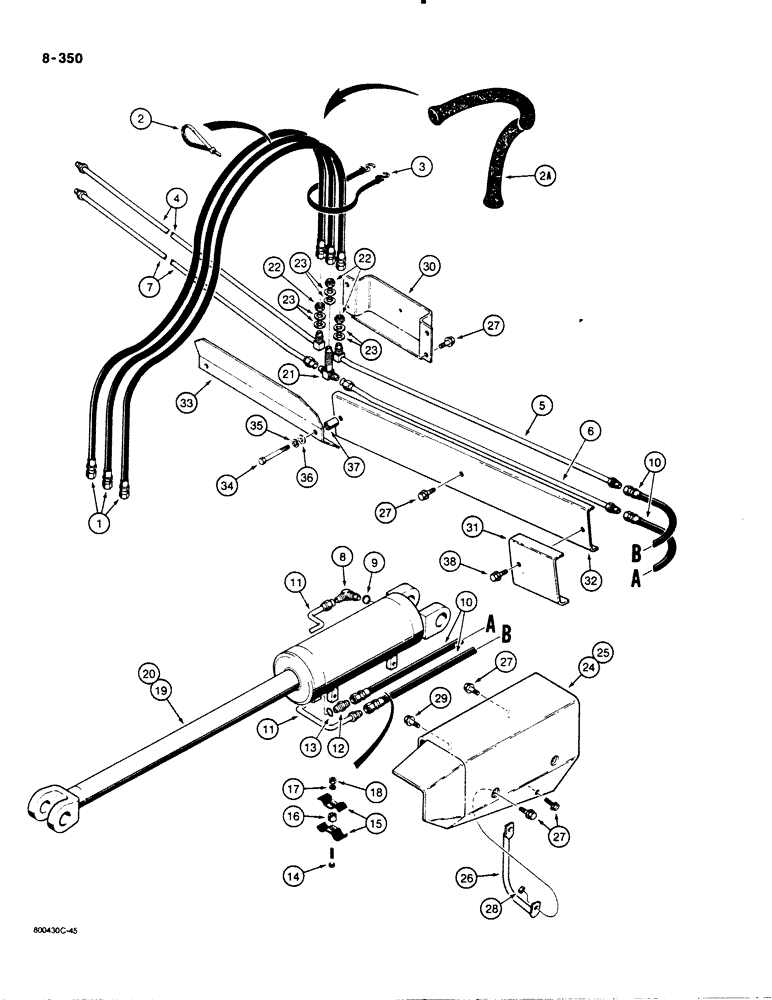

Запчасти Case 1450B (8-350) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT, ANGLE TILT PITCH DZER MODELS, GRILLE TO CYL. (08) - HYDRAULICS

1

W10686

HOSE

- 56" (1422 mm) long

3шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - hoses, no longer used, replace with R52544 hose sleeve (ref. 2A)

1шт.

2a

R52544

HOSE PROTECTION

SLEEVE - hoses

1шт.

3

R34737

STRAP

- hoses

1шт.

4

R37241

TUBE

- upper, left-hand, to left-hand tilt cylinder, closed end

1шт.

5

R37242

TUBE,1/2" OD x 45.54, 5.13" L

- upper, right-hand, to right-hand tilt cylinder, closed end

1шт.

6

R37237

PIPE,1/2" OD x 46.04, 4.75" L

TUBE - lower, right-hand, to right-hand tilt cylinder, rod end

1шт.

7

R37237

PIPE,1/2" OD x 46.04, 4.75" L

TUBE - lower, left-hand, to left-hand tilt cylinder, rod end

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

W11468

HOSE

, Serial Range: --cylinder

4шт.

11

R38385

TUBE,0.5" OD x 14.75, 5.8" L

- to closed end of cylinder

2шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 13 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

R15257

CLAMP

- hoses

4шт.

16

R46103

SPACER

- clamp

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

G101023

CYLINDER

- tilt and pitch, left-hand, parts list Fig. 8-378

1шт.

20

G101022

CYLINDER

- tilt and pitch, right-hand, parts list Fig. 8-378

1шт.

21

R28969

FITTING

TEE - male

1шт.

22

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

23

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

6шт.

24

R37288

GUARD

- tilt cylinder, left-hand

1шт.

25

R37289

GUARD

- tilt cylinder, right-hand

1шт.

26

R38301

ROD

- guard

2шт.

27

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

14шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

29

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

30

R41555

GUARD ASSY.

GUARD - at grille

1шт.

31

R38125

GUARD

- end

2шт.

32

R37250

GUARD ASSY.

GUARD - tubes

2шт.

33

R37251

GUARD

- center

1шт.

34

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2", plated

2шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

36

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

37

R37265

SPACER

- center guard

2шт.

38

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated, Replaces regular hex head bolt, lock washer, and flat washer used on some models

2шт.
