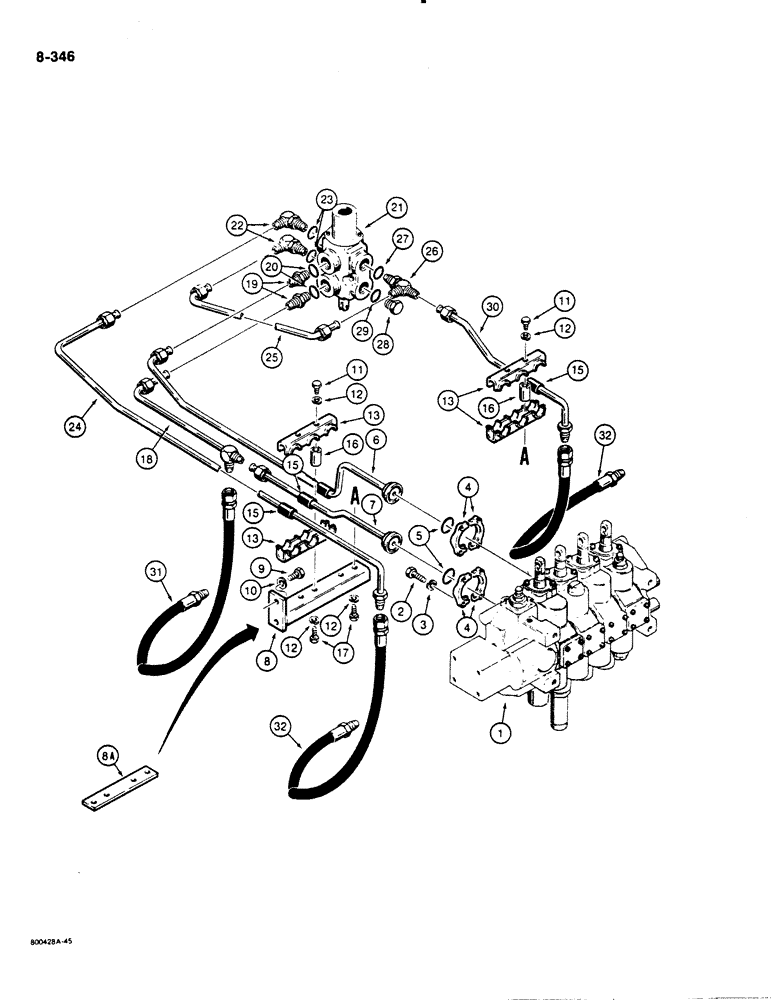

Запчасти Case 1450B (8-346) - DOZER TILT & PITCH HYD CIRT, ANGLE TILT PITCH DZER MODELS CONTROL VALVE THRU SELECTOR VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Fig. 8-404 or 8-408

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

A12306

FLANGE

CLAMP - split flange

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

2шт.

6

R41693

TUBE

- upper, control valve to selector valve

1шт.

7

R41691

SIGHTGLASS,0.5" OD

TUBE - lower, at control valve

1шт.

8

R41473

BRACKET

- tube mounting, no longer used, service with R46291 bracket (ref. 8A)

1шт.

8a

R46291

BRACKET

- tube mounting

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used, not used with Ref. 8A bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

if used, not used with ref. 8A bracket 3/8"

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

May replace 1/2" long bolt on some models Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

13

R41741

CLAMP

- tubes, split, includes both halves

2шт.

15

R41746

BUSHING

- clamp, No. 10-1/2" (13 mm) ID

4шт.

16

R41745

NUT

- special, two-way

4шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

R41687

TUBE

- to selector valve, lower rear port

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 20 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

21

R24819

VALVE

- selector, parts list, mounting, and control on Fig. 8-352

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

24

R41681

TUBE

- from selector valve, top left port

1шт.

25

R41689

TUBE

- from selector valve, lower left port

1шт.

26

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- male, adjustable, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

28

214389

PLUG,3/4" - 16 ORB

Selector valve, lower right port, Includes Ref. 29 Hex Hd, 3/4"-16 ORB

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

30

R41679

TUBE

- from selector valve, upper right port

1шт.

31

W16795

HOSE ASSY.

HOSE - lower, from lower rear port of selector valve

1шт.

32

R41695

HOSE ASSY.

HOSE - upper and center, from selector valve, upper left and upper right ports

2шт.
