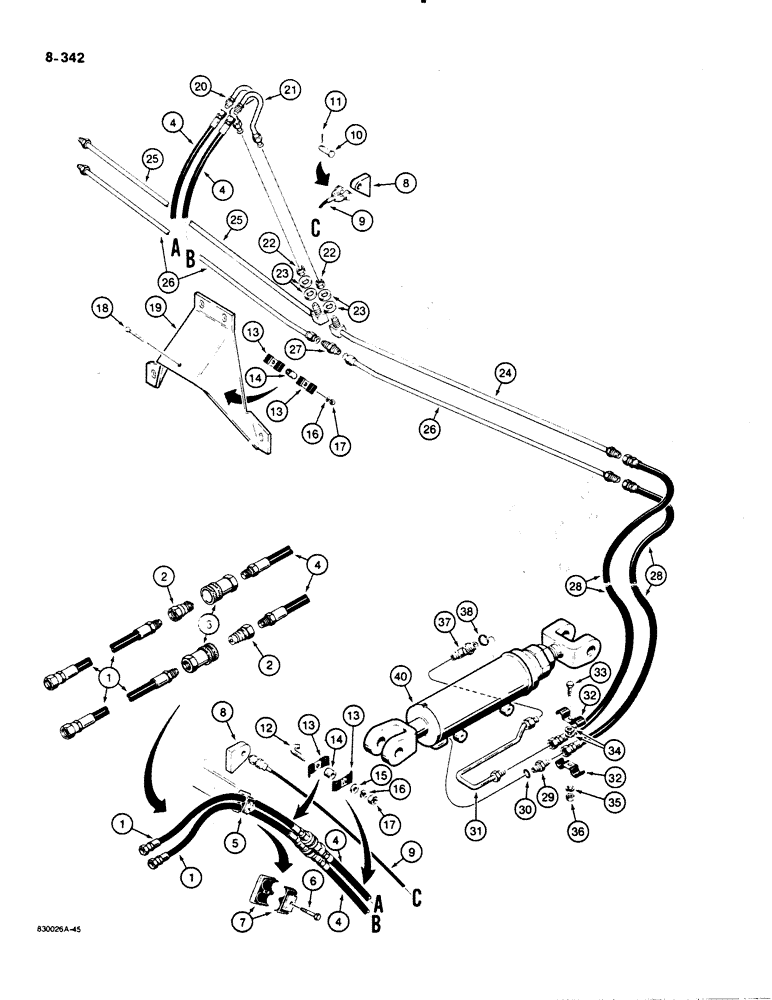

Запчасти Case 1450B (8-342) - OPTIONAL DZER TILT HYD CIRT FOR, MECHANICAL ANGLE DZER MODELS, SHROUD TO CYL, TUBES ON BACK OF BLADE (08) - HYDRAULICS

1

D33715

HOSE ASSY.

HOSE - shroud to couplings, 27" (686 mm) long

2шт.

2

R35915

FITTING

COUPLING - quick disconnect, male

2шт.

3

R36699

FITTING

COUPLING - quick disconnect, female

2шт.

4

R39344

HOSE ASSY.

HOSE - couplings to blade, 70" (1778 mm) long

2шт.

5

R43442

CLAMP

ASSEMBLY - hose, weld onto shroud, Includes: Ref. 6 and 7

1шт.

6

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

7

N6914

CLAMP

- split, includes both halves

1шт.

8

R43443

PLATE

LUG - cable mounting, weld to shroud and back of blade

2шт.

9

R43469

CABLE

- shroud to dozer blade, Includes: Ref. 10 and 11

1шт.

10

A32965

PIN,15.88mm OD x 74.61mm L

CLEVIS PIN - 5/8" x 2-3/8"

2шт.

11

132-91

COTTER PIN,3/16" x 1"

PIN, Split (Cotter), 3/16" x 1"

2шт.

12

R43520

BOLT

- J, cable retaining

2шт.

13

D40236

CLAMP

- hoses

6шт.

14

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

3шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

R48102

FRAME

GUARD - center of blade, see Fig. 8-344 for additional guards

1шт.

20

R48100

TUBE ASSY.

TUBE - under center guard, left-hand

1шт.

21

R48117

TUBE ASSY.

TUBE - under center guard, right-hand

1шт.

22

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

23

D35268

SHIM,1/32" Thk

Washer - flat, 3/4" 1/32" Thk

4шт.

24

R37241

TUBE

- upper, right-hand, to closed end of cylinder

1шт.

25

R37242

TUBE,1/2" OD x 45.54, 5.13" L

- upper, left-hand, to closed end of cylinder

1шт.

26

R37237

PIPE,1/2" OD x 46.04, 4.75" L

TUBE - lower, to rod end of cylinder

2шт.

27

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, male

1шт.

28

W11354

HOSE

- 36" (914 mm) long

4шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, rod end of cylinder, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

31

R43671

TUBE,0.5" OD x 15.35, 5" L

- to closed end of cylinder

2шт.

32

R15257

CLAMP

- tube

4шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

34

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

37

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, closed end of cylinder, Includes: Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

39

G103331

CYLINDER ASSY.

CYLINDER - tilt, left-hand, parts list Fig. 8-376, not shown

1шт.

40

G103332

CYLINDER ASSY.

CYLINDER - tilt, right-hand, parts list Fig. 8-376

1шт.
