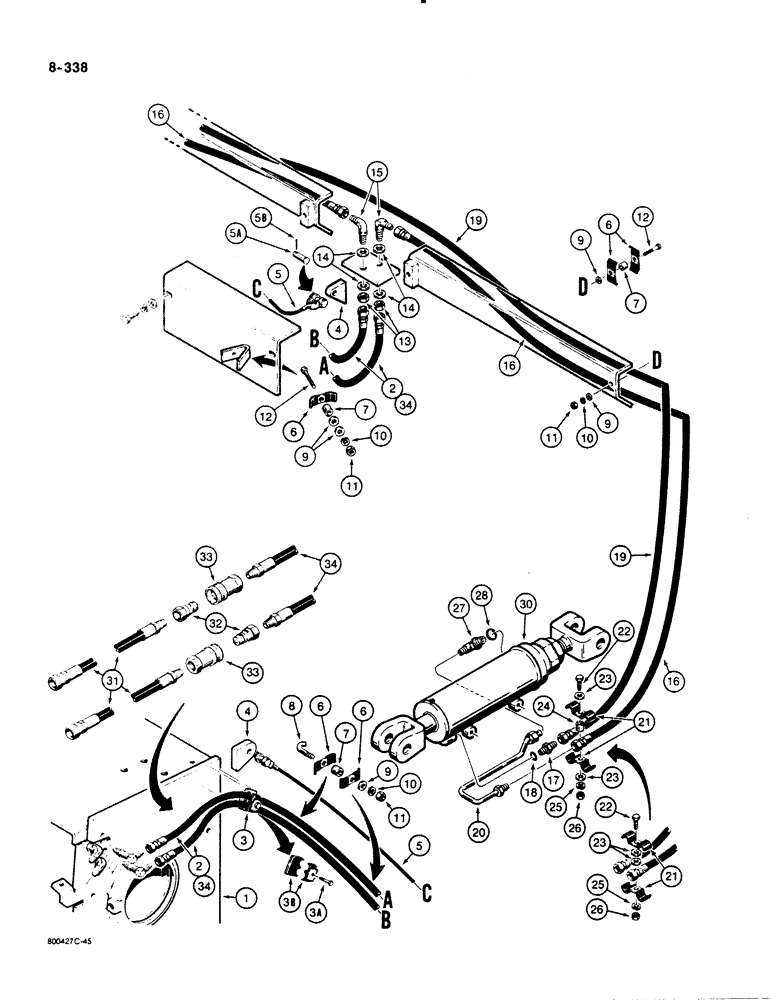

Запчасти Case 1450B (8-338) - OPTIONAL DZER TILT HYD CIRT FOR MECHANICAL ANGLE DZER SHROUD TO CYL MODELS W/HOSES ON BACK OF BLADE (08) - HYDRAULICS

1

REF

INSTRUCTION

SHROUD - radiator, for correct shroud part number see Fig. 9-488

1шт.

2

R43909

HOSE ASSY.

HOSE - to tilt cylinders, 108" (2743 mm) long, if used, see refs. 31-34

2шт.

3

R43442

CLAMP

- hose, weld onto shroud, Includes: Ref. 3A and 3B

1шт.

3a

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

3b

N6914

CLAMP

- split, includes both halves

1шт.

4

R43443

PLATE

LUG - cable mounting, weld onto shroud and back of blade

2шт.

5

R43469

CABLE

- shroud to dozer blade, Includes: Ref. 5A and 5B

1шт.

5a

A32965

PIN,15.88mm OD x 74.61mm L

CLEVIS PIN - 5/8" x 2-3/8"

2шт.

5b

132-91

COTTER PIN,3/16" x 1"

PIN, Split (Cotter), 3/16" x 1"

2шт.

6

D40236

CLAMP

- hoses and cable

9шт.

7

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

5шт.

8

R43520

BOLT

- J, cable retainer

2шт.

9

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

5шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

3шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

14

D35268

SHIM,1/32" Thk

Washer - flat, 3/4" 1/32" Thk

4шт.

15

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

16

R43910

HOSE ASSY.

HOSE - to closed end of cylinder, 84" (2134 mm) long

2шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, rod end of cylinder, Incl. Ref 18 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

19

R44318

HOSE

- left-hand cylinder to right-hand cylinder, rod ends, 170" (4318 mm) long

1шт.

20

R43671

TUBE,0.5" OD x 15.35, 5" L

- to tilt cylinder, closed end

2шт.

21

R15257

CLAMP

- tube

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

24

R46103

SPACER

- clamp, no longer used, replace by moving ref. 23 washer as shown

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, closed end of cylinder, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29

G103331

CYLINDER ASSY.

CYLINDER - tilt, left-hand, parts list Fig. 8-376, not shown

1шт.

30

G103332

CYLINDER ASSY.

CYLINDER - tilt, right-hand, parts list Fig. 8-376

1шт.

31

D33715

HOSE ASSY.

HOSE - shroud to couplings, 27" (686 mm) long, if used

2шт.

32

R35915

FITTING

COUPLING - quick disconnect, male, if used

2шт.

33

R36699

FITTING

COUPLING - quick disconnect, female, if used

2шт.

34

R47152

HOSE ASSY.

HOSE - couplings to blade, 76" (1930 mm) long, if used

2шт.
