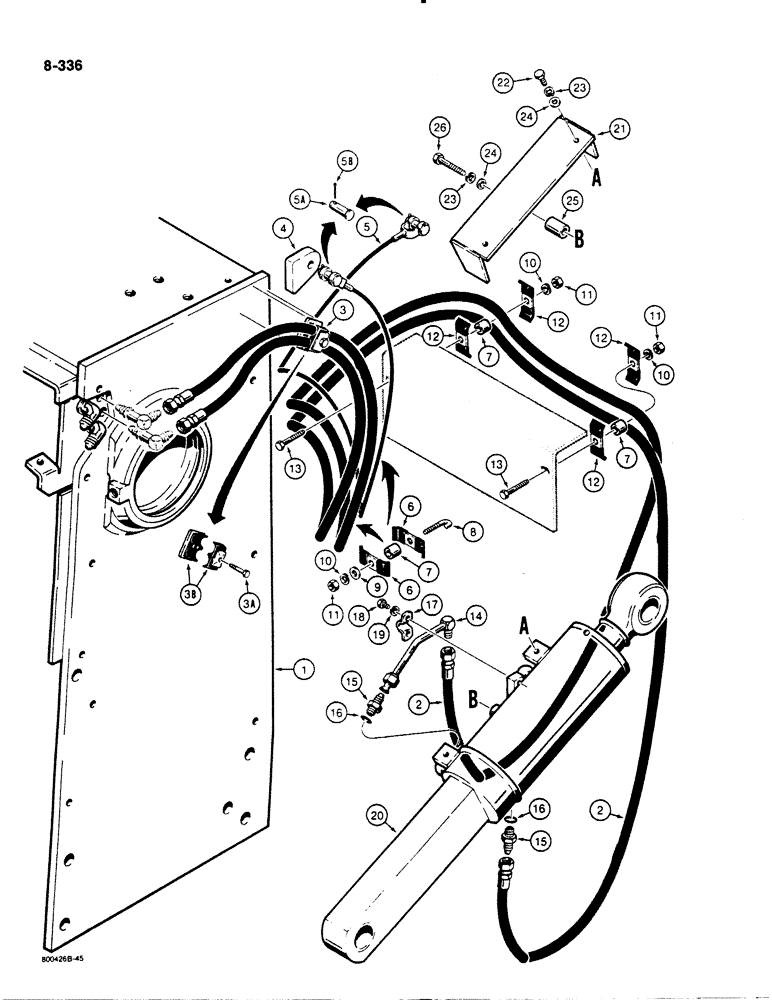

Запчасти Case 1450B (8-336) - DOZER TILT HYDRAULIC CIRCUIT, TILT DOZER MODELS, SHROUD TO CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

SHROUD - radiator, for correct shroud part number see Fig. 9-488

1шт.

2

R43441

HOSE ASSY.

to tilt cylinder, 135" (3429 mm) long, 74" (1880 mm) gauge tilt dozer models

2шт.

2

R43446

HOSE

to tilt cylinder, 155" (3937 mm) long, 78" (1981 mm) gauge LGP tilt dozer models

2шт.

3

R43442

CLAMP

hose, weld onto shroud, Includes: Ref. 3A and 3B

1шт.

3a

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

3b

N6914

CLAMP

split, includes both halves

1шт.

4

R43443

PLATE

cable mounting, weld onto shroud

1шт.

5

R43444

CABLE

shroud to dozer blade, 74" (1880 mm) gauge tilt dozer models, Includes: Ref. 5A and 5B

1шт.

5

R43445

CABLE PULLING GRIP

shroud to dozer blade, 78" (1981 mm) gauge LGP tilt dozer models, Includes: Ref. 5A and 5B

1шт.

5a

A32965

PIN,15.88mm OD x 74.61mm L

CLEVIS - 5/8" x 2-3/8", R43444 and R43445 cables

2шт.

5b

132-91

COTTER PIN,3/16" x 1"

PIN, Split (Cotter), , R43444 and R43445 cables 3/16" x 1"

2шт.

6

R36022

CLAMP

hoses and cable

4шт.

7

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

4шт.

8

R43520

BOLT

J, cable retainer

2шт.

9

195-25

WASHER,3/8"

flat, 3/8"

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

D40236

CLAMP

hoses, back side of blade

4шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14

R29008

TUBE,1/2" OD x 3.84, 6.68" L

to tilt cylinder, closed end

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

17

R26118

CLAMP

tube

1шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - tube

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

G34550

CYLINDER

tilt, parts list Fig. 8-374

1шт.

21

R28337

GUARD

tilt cylinder

1шт.

22

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Tilt cyl guard Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Tilt cylinder guard 1/2"

3шт.

24

195-33

WASHER,1/2"

flat, , tilt cyl guard 1/2"

3шт.

25

R28472

SPACER

tilt cyl guard

1шт.

26

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Tilt cyl guard

1шт.
