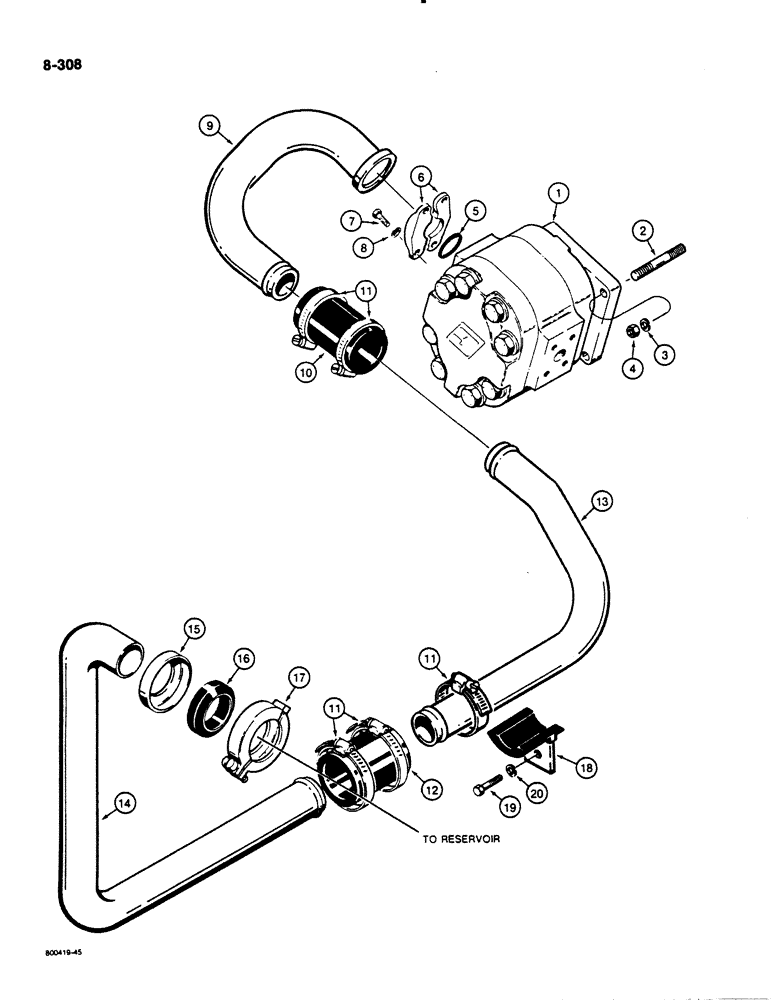

Запчасти Case 1450B (8-308) - EQMNT HYD. CIRT, RESERVOIR TO PUMP, LODR PR. TO P.I.N. 8381917, DZER AND DRWBR PR. TO TRCTR 8381778 (08) - HYDRAULICS

1

R38214

PUMP

ASSEMBLY - loader models, used prior to tractor P.I.N. 8381917, parts list Fig. 8-316

1шт.

For the hydraulic circuit on models with a Sperry Vickers pump, see Figures 8-312 and 8-314

1шт.

1

R42142

PUMP

ASSEMBLY - dozer and drawbar models, used prior to tractor P.I.N. 8381778, parts list Fig. 8-318

1шт.

For the hydraulic circuit on models with a Sperry Vickers pump, see Figures 8-312 and 8-314.

1шт.

2

G102127

STUD

- 1/2" - 13 NC x 3-3/8"

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

5

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2", dozer and drawbar models

1шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- 1-1/2", loader models

1шт.

6

A14141

FLANGE

CLAMP - split flange, dozer and drawbar models

2шт.

6

A14157

FLANGE

CLAMP - split flange, loader models

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

R43862

TUBE,2 - 2.81" OD

- to pump, dozer and drawbar models, used prior to tractor P.I.N. 8381778

1шт.

9

R43811

TUBE,1.998" ID x 2 - 2.38" OD

- to pump, loader models, used prior to tractor P.I.N. 8381917

1шт.

10

R43917

HOSE

, Serial Range: --pump

1шт.

11

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

5шт.

12

R43919

HOSE

- between tubes

1шт.

13

R43814

TUBE,2" OD

- intermediate

1шт.

14

R43813

TUBE,2" OD

- at reservoir

1шт.

15

R30066

RETAINER

- gasket

1шт.

16

R30065

GASKET

- tube

1шт.

17

R30064

CLAMP

- tube, includes hardware

1шт.

18

R43815

BRACKET

- support, tube, loader models

1шт.

18

R38740

BRACKET

- support, tube, dozer models

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
