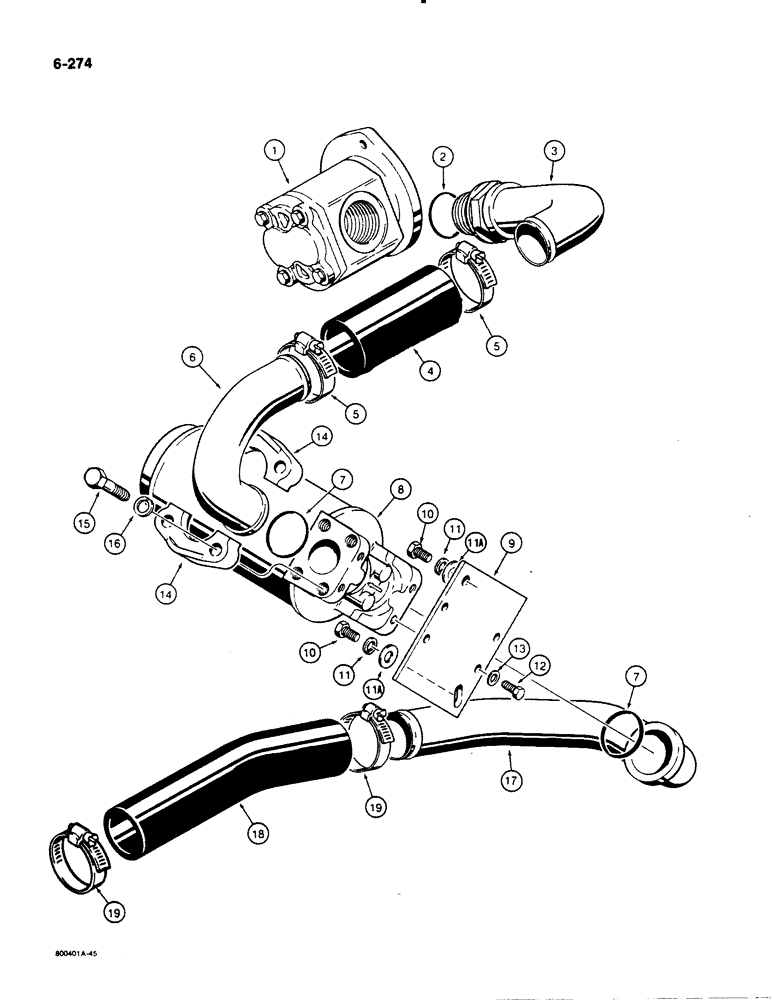

Запчасти Case 1450B (6-274) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO CHARGING PUMP-SUCTION LINE (06) - POWER TRAIN

1

R45996

PUMP

- transmission charging, parts list Fig. 6-286, mounting parts on Fig. 6-268 or 6-270

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Tube

1шт.

3

R44767

TUBE,2" OD x 4.6, 4" L

- pump

1шт.

4

R43919

HOSE

- tube

1шт.

5

214-177

CLIP

CLAMP - hose

2шт.

6

R44765

TUBE,2" OD x 8, 4.9" L

- filter

1шт.

7

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- filter

2шт.

8

R44777

FILTER

- oil, suction, parts list Fig. 6-284

1шт.

9

R44771

PLATE

- mounting, filter

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11a

D41740

WASHER

- hardened, 3/8"

2шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

A14157

FLANGE

CLAMP - filter

4шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

R44769

TUBE,1.75 - 2.38" OD

- from transmission

1шт.

18

R44773

LARGE HOSE

HOSE - suction, from transmission

1шт.

19

R44789

CLAMP

- hose

2шт.
