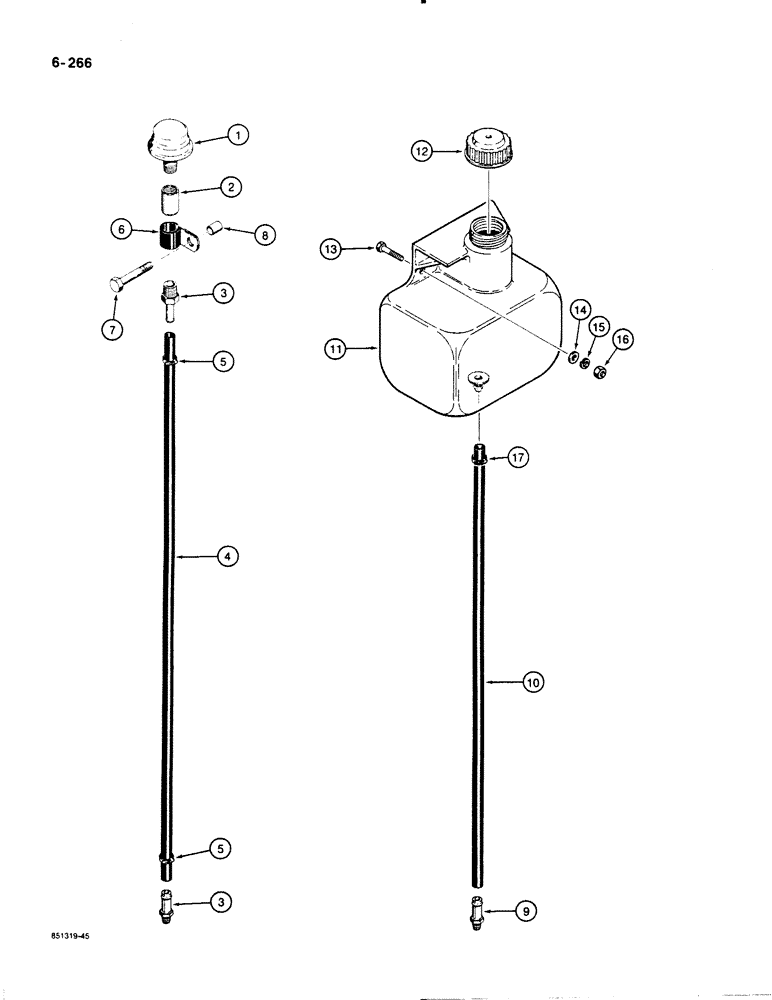

Запчасти Case 1450B (6-266) - TRANSMISSION BREATHER OR RECOVERY BOTTLE, PARTS USED ON MODELS W/BREATHER & FLUID RECOVERY BOTTLE (06) - POWER TRAIN

1

31543

BREATHER

- transmission housing

1шт.

2

221-336

COUPLING,Pipe, 1/4" NPT

- breather Pipe, 1/4" NPT

1шт.

3

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - straight

2шт.

4

R44038

LARGE HOSE

HOSE - breather to transmission housing, 38" (965 mm) long, cut from A21561 bulk, see below

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

6

49885

CLAMP

- breather

1шт.

7

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

8

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp mounting

1шт.

9

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - hose, at transmission housing

1шт.

10

R44038

LARGE HOSE

HOSE - recovery bottle to transmission housing, 38" (965 mm) long, cut from A21561 bulk, see below

1шт.

11

R50467

RESERVOIR

BOTTLE - plastic, transmission fluid recovery

1шт.

12

R50468

CAP

CAP - recovery bottle

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- at recovery bottle #4, 0.25/0.62 Type F Worm

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
