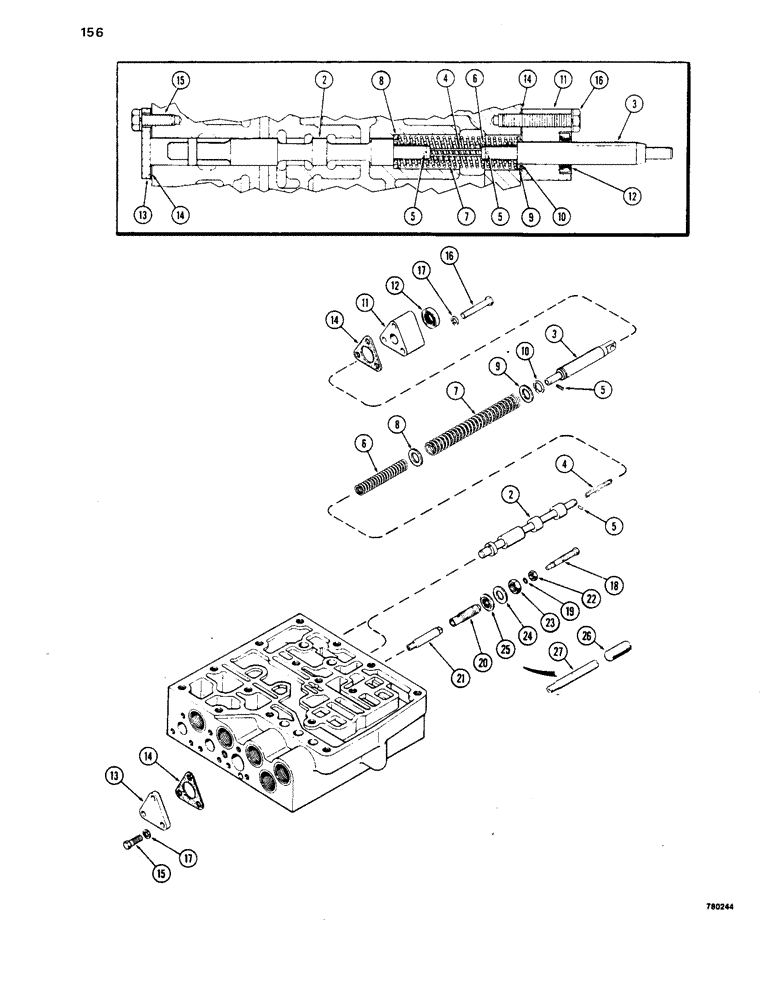

Запчасти Case 1450 (156) - TRANSMISSION CONTROL VALVE, BRAKE SPOOL (06) - POWER TRAIN

1

A51833

SPOOL

ASSEMBLY - brake, not shown, Includes: Ref. 2 - 10

2шт.

2

A51834

SPOOL

- brake

1шт.

3

A51835

ROD

- brake actuator

1шт.

4

A51836

BRACKET

CLIP - brake spool return

1шт.

Part of overhaul kit P/N G101836

1шт.

5

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

2шт.

Part of overhaul kit P/N G101836

1шт.

6

A51839

SPRING

- brake actuator

1шт.

Part of overhaul kit P/N G101836

1шт.

7

A50743

SPRING

- brake spool return

1шт.

Part of overhaul kit P/N G101836

1шт.

8

A50741

WASHER

- lower

1шт.

9

A50740

WASHER

- upper

1шт.

10

L42909

SNAP RING,#62, .586", Ext

RING - snap

1шт.

11

A50751

HOUSING

- actuator rod

2шт.

12

G105700

OIL SEAL

- oil, actuator rod

2шт.

Part of seal kit P/N G101835

1шт.

13

A50752

PLATE

- brake spool cover

2шт.

14

A50753

GASKET

- cover plate and rod housing

4шт.

Part of seal kit P/N G101835

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

17

92-5

LOCK WASHER,5/16"

12шт.

18

A50823

NEEDLE

VALVE - retard, use A142437, A50733 and 176-396

1шт.

19

A50758

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

- needle valve ( replaced A50768 ), retard

1шт.

Part of seal kit P/N G101835

1шт.

20

A50759

SLEEVE

- use A142437, A50733 and 176-396, retard

1шт.

21

A50760

SEAT

- valve, use A142437, A50733 and 176-396, retard

1шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, retard valve

1шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF, retard valve

1шт.

24

195-33

WASHER,1/2"

- flat, , retard valve 1/2"

1шт.

25

A50733

SEAL

- retard valve

1шт.

Part of seal kit P/N G101835

1шт.

26

176-396

SET SCREW,1/2"-13 x 1 1/4", Slotted

SCREW - set, slotted, 1/2" - 20 NF x 1-1/4", retard valve

1шт.

27

A142437

FITTING

MODULATOR - orifice, retard valve

1шт.

G101835

GASKET KIT

KIT - seal, Includes: Refs. 12, 14, 19 and 25, also see Figures 152 thru 159A, retard valve

1шт.

G101836

VALVE

KIT - overhaul, Includes: Refs. 4 - 7 plus G101835 kit, also see Figures 152 thru 159A, retard

1шт.
