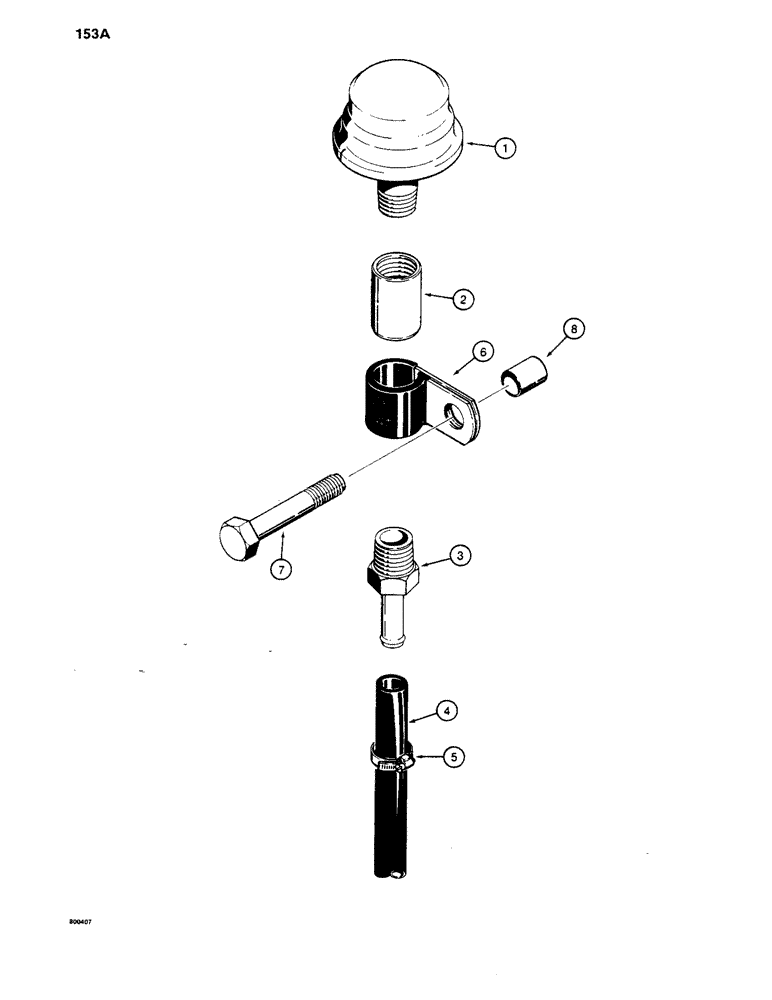

Запчасти Case 1450 (153A) - TRANSMISSION BREATHER (06) - POWER TRAIN

1

A27173

BREATHER

- transmission housing

1шт.

2

221-336

COUPLING,Pipe, 1/4" NPT

- breather Pipe, 1/4" NPT

1шт.

3

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

- barb, hose stem

2шт.

4

REF

INSTRUCTION

HOSE - breather to transmission housing, 38" (965 mm) long, cut from A21561 bulk hose, see below

1шт.

Part of Hose P/N A21561

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

6

NLS

NO LONGER SERVICED

- breather

1шт.

7

111-263

CARRIAGE BOLT - 5/16" - 18 NC x 1-3/4", plated Short NK, 5/16"-18 x 1 3/4", G2

1шт.

8

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- breather

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk, Includes Ref. 4

1шт.
