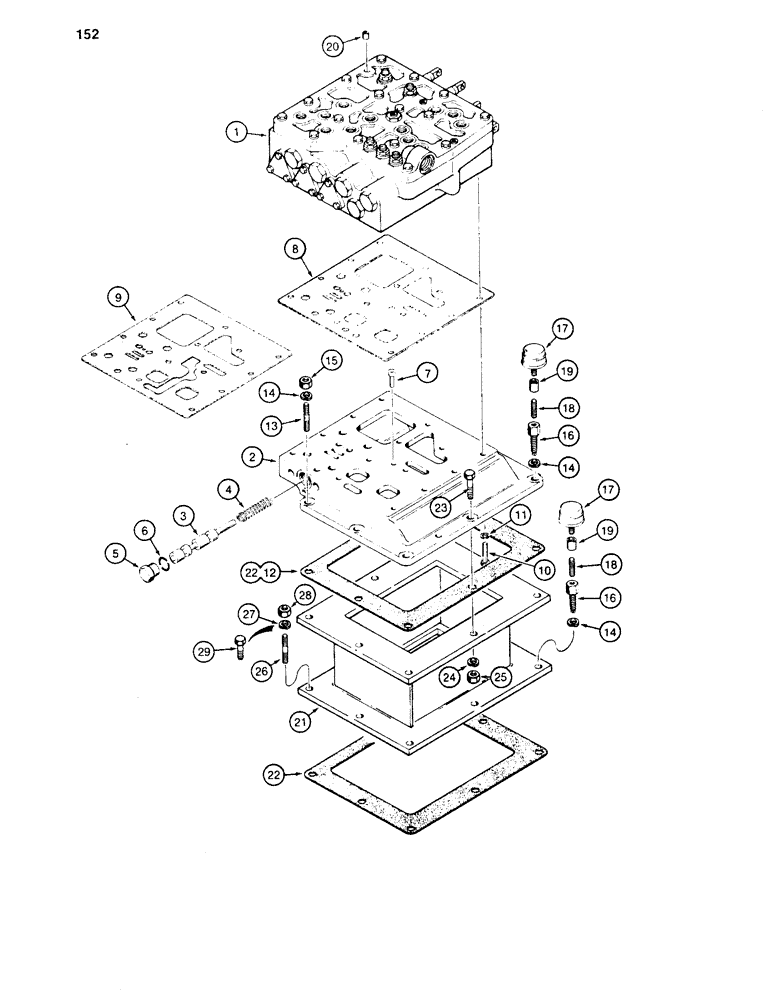

Запчасти Case 1450 (152) - TRANS CONTROL VALVE & BASE (06) - POWER TRAIN

G105225

VALVE

CONTROL AND BASE ASSEMBLY - transmission, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY - parts list Figures 154 thru 158

1шт.

A136287

BASE

ASSEMBLY - control valve, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - valve

1шт.

3

A50782

SPOOL

- equalizer

1шт.

4

A50783

SPRING

- equalizer spool

1шт.

Part of control valve overhaul kit P/N G101836.

1шт.

5

86625138

PLUG,7/18" - 14

Spool port, Includes Ref. 6 Hex Soc, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of control valve seal kit P/N G101835

1шт.

7

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

SCREW - hex socket head, self-locking, 1/4" - 20 NC x 3/4"

1шт.

Part of control valve overhaul kit P/N G101836.

1шт.

8

G103502

GASKET

- control valve to base, no longer used, order G105098 gasket

1шт.

9

G105098

GASKET

- control, Serial Range: valve-base

1шт.

Part of control valve overhaul kit P/N G101836.

1шт.

Part of control valve seal kit P/N G101835

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

14шт.

12

A50717

GASKET

- control valve base to transmission housing

1-2шт.

Part of control valve overhaul kit P/N G101836.

1шт.

Part of control valve seal kit P/N G101835

1шт.

13

G102110

BOLT

- 1/2" - 13 NC x 1-7/8", replaced by G102126 stud

6шт.

13

G102126

STUD

- 1/2" - 13 NC x 2-1/2", if used

6шт.

14

92-8

LOCK WASHER,1/2"

6-7шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

16

A51601

BOLT

- breather, if used

1шт.

The transmission breather may be mounted on the transmission control valve base or spacer, as shown here, or it may be located by the equipment control valve linkage using a longer hose to attach to the transmission. For optional mounting and parts, see Figure 153A.

1шт.

17

A27173

BREATHER

- transmission housing

1шт.

The transmission breather may be mounted on the transmission control valve base or spacer, as shown here, or it may be located by the equipment control valve linkage using a longer hose to attach to the transmission. For optional mounting and parts, see Figure 153A.

1шт.

18

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - 1/4" NPT x 2"

1шт.

The transmission breather may be mounted on the transmission control valve base or spacer, as shown here, or it may be located by the equipment control valve linkage using a longer hose to attach to the transmission. For optional mounting and parts, see Figure 153A.

1шт.

19

221-336

COUPLING,Pipe, 1/4" NPT

- breather to nipple Pipe, 1/4" NPT

1шт.

The transmission breather may be mounted on the transmission control valve base or spacer, as shown here, or it may be located by the equipment control valve linkage using a longer hose to attach to the transmission. For optional mounting and parts, see Figure 153A.

1шт.

20

221-841

PLUG

- square head, 1/4" NPT, if used

1шт.

21

G100548

RISER

SPACER - weldment, order G101524 and 13-820 bolts, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

1шт.

21

G101524

RISER

SPACER - casting, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

1шт.

22

A50717

GASKET

- base housing, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

2шт.

Part of control valve seal kit P/N G101835

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-/3/4", special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

7шт.

24

92-8

LOCK WASHER,1/2"

special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft 1/2"

7шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

7шт.

26

G102110

BOLT

- 1/2" - 13 NC x 1-7/8", no longer used, order 13-820 bolts, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

6шт.

26

G102126

STUD

- 1/2" - 13 NC x 2-1/2", no longer used, order 13-820 bolts, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

6шт.

27

92-8

LOCK WASHER,1/2"

no longer used, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft 1/2"

6шт.

28

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, no longer used, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

6шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Special parts used w/ control valve spacer, tractor S/N 8379501 & aft, trans S/N 2806301 & aft Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6-7шт.

G101835

GASKET KIT

KIT - seal, Includes: Refs. 6, 9, 12, and 22, also includes parts on Figures 152 thru 159A, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

1шт.

G101836

VALVE

KIT - overhaul, Includes: Refs. 4, 7, 9 and 12 plus G101835 kit, also includes refs on Figures 153A thru 159A, special parts used w/ control valve spacer, trac s/n 8379501 & aft, trans s/n 2806301 & aft

1шт.
