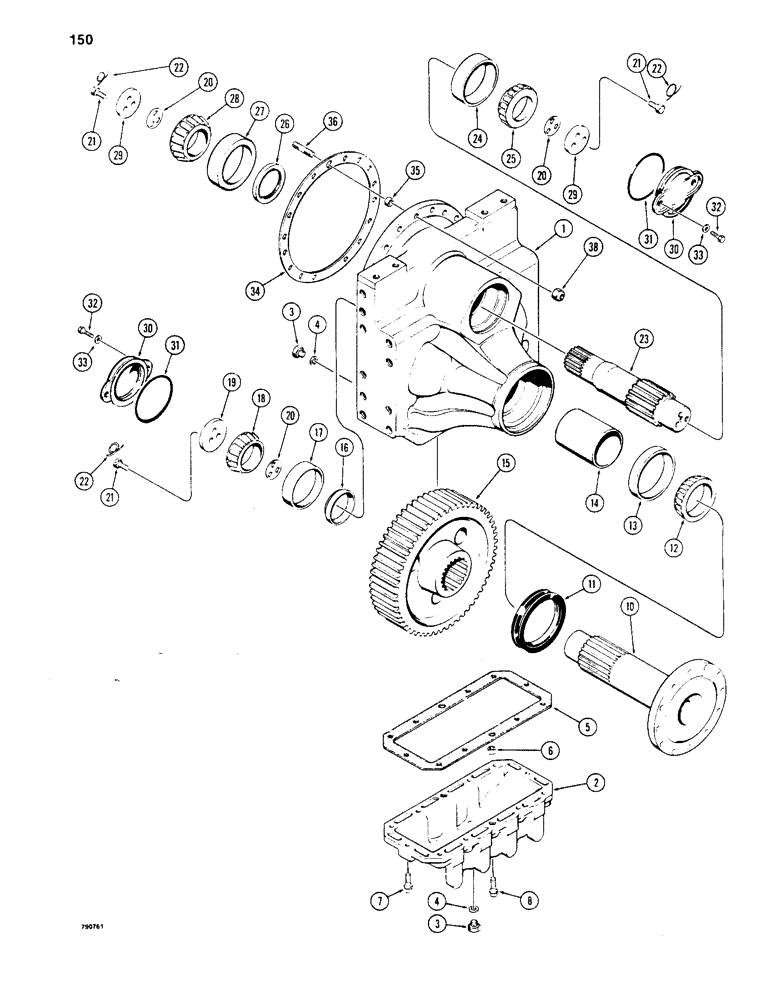

Запчасти Case 1450 (150) - TRANSMISSION FINAL DRIVE, REF 30 RETAINED BY BOLTS (06) - POWER TRAIN

G101539

DRIVE

ASSEMBLY - final, Includes: Ref. 1 - 33

2шт.

1

G101311

HOUSING

- final drive

1шт.

2

A51632

COVER

- bottom

1шт.

3

A140222

PLUG

- drain and fill

2шт.

4

G102141

SEALING WASHER

WASHER - copper

2шт.

Part of seal kit P/N G101833

1шт.

5

A50540

GASKET

- bottom cover

1шт.

Part of seal kit P/N G101833

1шт.

6

A50011

SLEEVE

DOWEL

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

8

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1-3/4"

2шт.

10

G100098

SHAFT

- final drive

1шт.

11

A50547

SEAL

- face

1шт.

Part of seal kit P/N G101833

1шт.

12

L33736

ROLLER BEARING

CONE - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

13

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

14

A51723

BUSHING

SPACER - front

1шт.

15

G100294

GEAR

- 62 external and 46 internal teeth

1шт.

16

A50721

SPACER

- rear

1шт.

17

A50324

BEARING CUP

CUP - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

18

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

CONE - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

19

G102001

PLATE

- end

1шт.

Part of seal kit P/N G101833

1шт.

20

G101997

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

G101998

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

G101999

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit P/N G101833

1шт.

21

R19888

SCREW

BOLT - hex, drilled head, 9/16" - 18 NF x 1-1/4"

9шт.

22

391-804

ELECTRICAL WIRE

WIRE - tie

3шт.

Part of seal kit P/N G101833

1шт.

23

G35217

SHAFT

- pinion

1шт.

24

L30821

BEARING CUP

- bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

25

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

CONE - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

26

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil

1шт.

Part of seal kit P/N G101833

1шт.

27

A50713

BEARING ASSY

CUP - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

28

A50714

BEARING ASSY

CONE - bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

29

G102106

PLATE

- end

2шт.

Part of seal kit P/N G101833

1шт.

30

G102521

COVER

- pinion shaft, retained by bolts

2шт.

31

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

Part of seal kit P/N G101833

1шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

33

G49404

WASHER

- hardened

4шт.

34

A50726

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

34

A50725

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

35

A50727

SLEEVE

DOWEL

2шт.

36

A50592

STUD

- 5/8" - 11 NC x 2-3/4"

34шт.

38

232-41110

NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC

34шт.

G101833

KIT

- seal, Includes: Ref. 4, 5, 11, 19, 20, 22, 26, 29, 31 and 34

1шт.

G101834

DRIVE

KIT - overhaul, Includes: Ref. 12, 13, 17, 18, 24, 25, 27, 28, plus G101833 kit

1шт.
