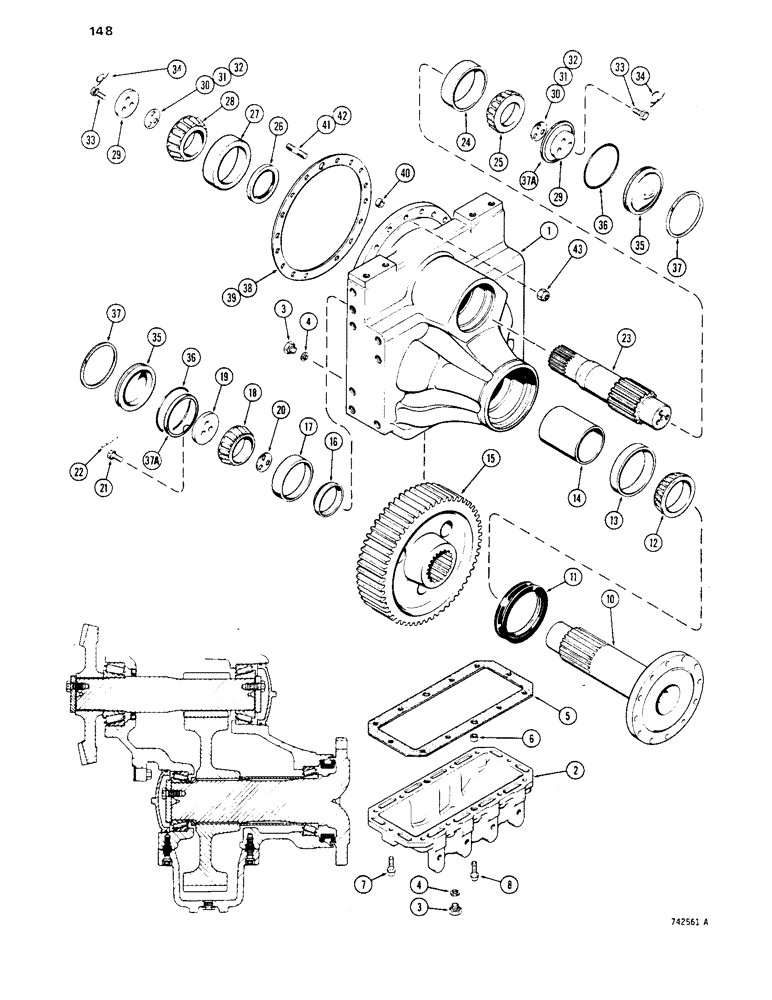

Запчасти Case 1450 (148) - TRANSMISSION FINAL DRIVE ASSEMBLY, REF 35 RETAINED BY RETAINING RING (06) - POWER TRAIN

A51450

DRIVE

ASSEMBLY - final, Includes: Ref. 1 - 4

2шт.

1

A51721

HOUSING

- final drive, use G101678 kit, see below

1шт.

Part of kit P/N G101678

1шт.

2

A51632

COVER

- bottom

1шт.

3

A140222

PLUG

- fill and drain

2шт.

4

A58608

GASKET

- nylon, order G102141 washer for service

2шт.

Part of seal kit P/N G101833

1шт.

4

G102141

SEALING WASHER

WASHER - copper, Includes: Ref. 5 - 37A

2шт.

5

A50540

GASKET

- bottom, Serial Range: cover-housing

1шт.

Part of seal kit P/N G101833

1шт.

6

A50011

SLEEVE

- dowel

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2"

10шт.

8

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1-3/4"

2шт.

10

G100098

SHAFT

- final drive

1шт.

11

A50547

SEAL

- face

1шт.

Part of seal kit P/N G101833

1шт.

12

L33736

ROLLER BEARING

CONE - bearing, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

13

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

14

A51723

BUSHING

SPACER - final drive gear, front

1шт.

15

G100294

GEAR

- 62 external and 46 internal teeth

1шт.

16

A50721

SPACER

- final drive gear, rear

1шт.

17

A50324

BEARING CUP

CUP - bearing, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

18

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

CONE - bearing, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

19

G102001

PLATE

- end

1шт.

Part of seal kit P/N G101833

1шт.

20

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

20

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit P/N G101833

1шт.

21

R19888

SCREW

BOLT - hex, drilled head, 9/16" - 18 NF x 1-1/4"

3шт.

22

391-804

ELECTRICAL WIRE

WIRE - tie

1шт.

Part of seal kit P/N G101833

1шт.

23

G35217

SHAFT

- pinion

1шт.

24

L30821

BEARING CUP

- bearing, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

25

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

CONE - bearing, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

26

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil

1шт.

Part of seal kit P/N G101833

1шт.

27

A50713

BEARING ASSY

CUP - bearing, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

28

A50714

BEARING ASSY

CONE - bearing, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

29

G102106

PLATE

- end

2шт.

Part of seal kit P/N G101833

1шт.

30

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

31

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

32

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit P/N G101833

1шт.

33

R19888

SCREW

BOLT - hex, drilled head, 1-1/16" - 18 NF x 1-1/4"

6шт.

34

391-804

ELECTRICAL WIRE

WIRE - tie

2шт.

Part of seal kit P/N G101833

1шт.

35

A51155

PLUG

COVER - pinion shaft, retained by retaining ring

2шт.

36

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

Part of seal kit P/N G101833

1шт.

37

A50814

SNAP RING,#550, 5.693, Int, Spiral

RING - snap

2шт.

37a

G101005

SPACER

- cover, if used

2шт.

38

A50726

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101833

1шт.

39

A50725

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit P/N G101833

1шт.

40

A50727

SLEEVE

- dowel, if used

2шт.

41

A50592

STUD

- 5/8" - 16 NC x 2-3/4"

34шт.

42

A50593

STUD

- 5/8" - 16 NC x 3", if used

2шт.

43

232-41110

NUT,5/8"-11, GC

NUT - hex, self lock, 5/8" - 11 NC

34шт.

G101834

DRIVE

KIT - overhaul, Includes: Refs. 12, 13, 17, 18, 24, 25, 27, 28 and G101833 kit

1шт.

G101833

KIT

- seal, Includes: Refs. 4 (A58608), 5, 11, 19, 20, 22, 26, 29 - 32, 34, 36, 38 and 39

1шт.

G101678

CONVERSION KIT

KIT - converts A51450 final drive to G101539 final drive, Includes: Ref. 1 and 30 thru 33 on figure 150

1шт.
