(142) - TRANSMISSION CLUTCHES, FOR IDENTIFICATION: ITEM 10 HAS 5/32" (2.29MM) STEEL CORE

Запчасти Case 1450 (142) - TRANSMISSION CLUTCHES, FOR IDENTIFICATION: ITEM 10 HAS 5/32" (2.29MM) STEEL CORE (06) - POWER TRAIN

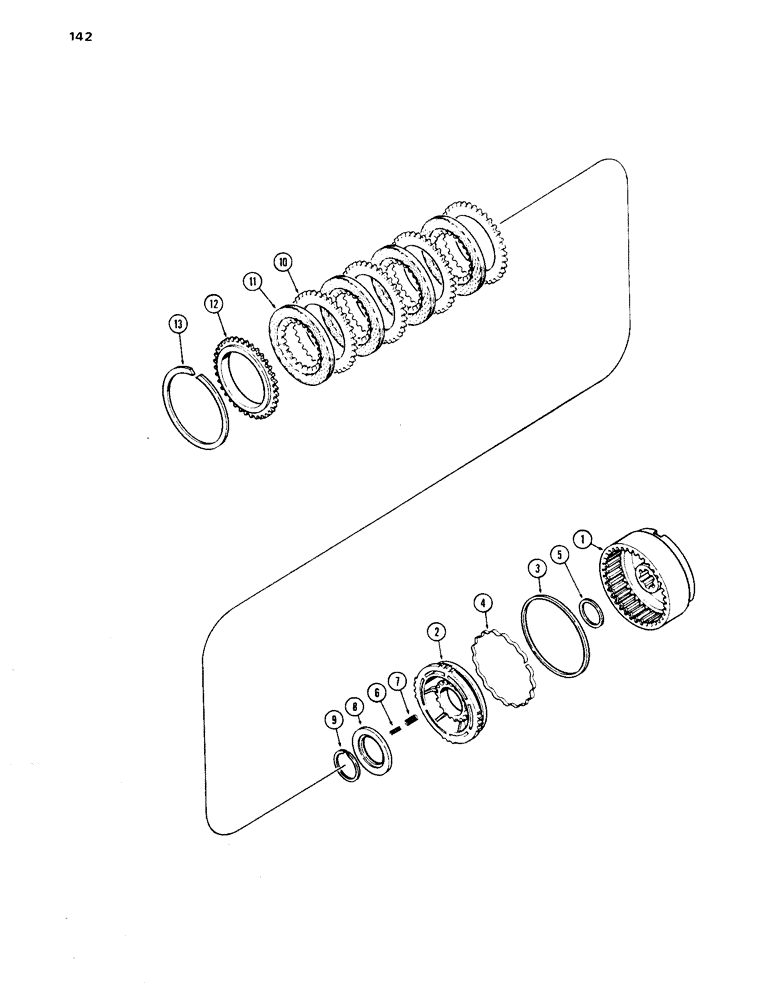

Схема запчастей Case 1450 - (142) - TRANSMISSION CLUTCHES, FOR IDENTIFICATION: ITEM 10 HAS 5/32" (2.29MM) STEEL CORE (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A51824

NO LONGER SERVICED

CLUTCH ASSEMBLY - order G102377

8шт.

1

A50670

DRUM

- clutch

1шт.

2

A50571

PISTON

- clutch

1шт.

3

A50414

SEALING RING

RING - piston

1шт.

Part of clutch seal kit P/N G101831

1шт.

4

G102095

SPRING

- wave type

1шт.

Wave spring is not included in G101831 kit. Needs to be ordered separately if clutch assembly being rebuilt has them.

1шт.

Part of clutch seal kit P/N G101831

1шт.

5

A50415

SEAL

RING - drum

1шт.

Part of clutch seal kit P/N G101831

1шт.

6

A51826

SPRING

- inner

18шт.

Part of clutch seal kit P/N G101831

1шт.

7

A51825

SPRING

- outer

18шт.

Part of clutch seal kit P/N G101831

1шт.

8

R11016

RETAINER

- spring

1шт.

9

A27233

RING

- snap

1шт.

10

A50028

PLATE

- steel, 46 external teeth

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

11

A50029

PLATE

- sintered, 29 internal teeth

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

12

A50030

PLATE

- backing

1шт.

13

30785

RING

SNAP .125" (3.16 mm)

1шт.

Part of clutch seal kit P/N G101831

1шт.

13

A51827

RING

SNAP .110" (2.79 mm)

1шт.

Part of clutch seal kit P/N G101831

1шт.

13

A51828

RING

SNAP .092" (2.34 mm)

1шт.

Part of clutch seal kit P/N G101831

1шт.

G102377

CLUTCH

ASSEMBLY - transmission, for ID: Ref. 10 has 1/8" (3.05mm) steel core

8шт.

1

A50670

DRUM

- clutch, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

2

A50571

PISTON

- clutch, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

3

A50414

SEALING RING

RING - piston, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Part of clutch seal kit P/N G101831

1шт.

4

G102095

SPRING

- wave type, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Wave spring is not included in G101831 kit. Needs to be ordered separately if clutch assembly being rebuilt has them.

1шт.

Part of clutch seal kit P/N G101831

1шт.

5

A50415

SEAL

RING - drum, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Part of clutch seal kit P/N G101831

1шт.

6

A51826

SPRING

- inner, for ID: Ref. 10 has 1/8" (3.05mm) steel core

18шт.

Part of clutch seal kit P/N G101831

1шт.

7

A51825

SPRING

- outer

18шт.

8

R11016

RETAINER

- spring, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

9

A27233

RING

- snap, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

G102416

KIT

- clutch plates

1шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

10

G101711

PLATE

- steel, 46 external teeth, for ID: Ref. 10 has 1/8" (3.05mm) steel core

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

11

G102354

PLATE

- sintered, 29 internal teeth, for ID: Ref. 10 has 1/8" (3.05mm) steel core

4шт.

A50028 and A50029 clutch plates may be serviced with the complete clutch plate kit G102416. Never mix A50028 or A50029 clutch plates with G101711 or G102354 clutch plates.

1шт.

12

G103391

PLATE

- backing, for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

13

30785

RING

SNAP RING - .125" (3/16 mm), for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Part of clutch seal kit P/N G101831

1шт.

13

A51827

RING

SNAP RING - .110" (2.79 mm), for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Part of clutch seal kit P/N G101831

1шт.

13

A51828

RING

SNAP RING - .092" (2.34 mm), for ID: Ref. 10 has 1/8" (3.05mm) steel core

1шт.

Part of clutch seal kit P/N G101831

1шт.

G101831

GASKET KIT

KIT - clutch seal, Includes: Refs. 3 - 7 and 13 for 5/32" (2.29 mm) steel core only, and also Includes: Refs. 3 - 6 and 13 for 1/8" (3.05 mm) steel core only and items on Figures 136 and 138

1шт.
