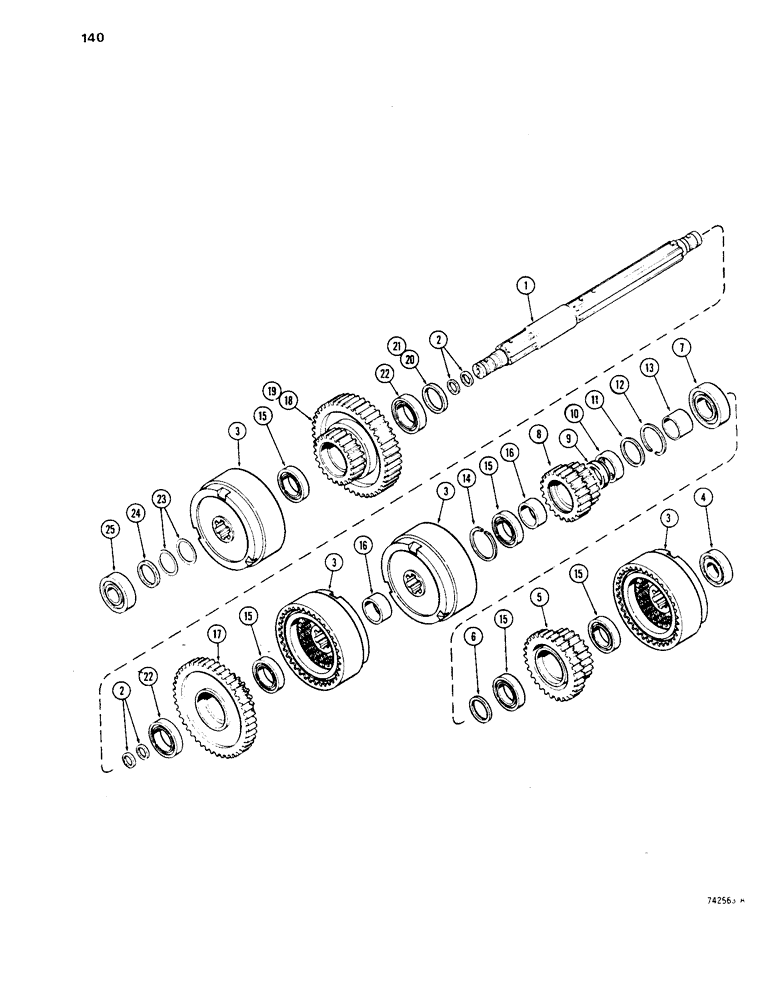

Запчасти Case 1450 (140) - TRANSMISSION LH AND RH CLUTCH SHAFTS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
G104202
SHAFT
ASSEMBLY - clutch
2шт.
2
A50389
SEAL
RING - seal
8шт.
Part of Seal Kit P/N G101829.
1шт.
3
REF
INSTRUCTION
CLUTCH ASSEMBLY - see Figure 142 for correct assembly and componentsø
8шт.
4
B18215
BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"
BEARING - ball
2шт.
5
A51752
GEAR
- 29 and 35 teeth
2шт.
6
A50665
RING
SPACER
2шт.
7
H756080
BALL BEARING
BEARING - ball
2шт.
G101326
GEAR
ASSEMBLY - low clutch, uses 2 spacers, use G101318, Includes: Ref. 8 - 12
2шт.
G101318
GEAR
ASSEMBLY - low clutch, uses 1 spacer, Includes: Ref. 8 - 12
2шт.
8
NSS
NOT SOLD SEPARAT
GEAR - low clutch
1шт.
Gears with bushings are to be serviced with G101318 gear assembly and Refs. 13 and 16.
1шт.
9
NSS
NOT SOLD SEPARAT
SPACER - wide, G101326 and G101318 gear only
1шт.
10
A51468
NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 25.4mm W
BEARING - needle
1шт.
11
A51822
BUSHING
SPACER - narrow, G101326 gear only
1шт.
12
A27414
RING
- snap
1шт.
13
A51757
BUSHING,49.98mm ID x 57.13mm OD x 35.76mm L
RACE - needle bearing
2шт.
14
A27579
RING
- snap
2шт.
15
G10418
BEARING, BALL
BEARING - ball
10шт.
16
A51842
SPACER
4шт.
17
G102300
GEAR
- driven, 29 and 51 teeth, LH and RH clutch
2шт.
18
G102300
GEAR
- driven, 29 and 51 teeth, RH clutch
1шт.
19
G102301
GEAR
- reverse, 29 and 51 teeth, LH clutch
1шт.
20
A50664
SPACER
- gear, LH clutch, 2.500" O.D., 2.188/2.220" I.D., .221/.224" width
1шт.
21
A50663
SPACER
- gear, RH clutch, 2.500" O.D., 2.188/2.220" I.D., 1.077/1.082" width
1шт.
22
T25088
BALL BEARING,55 mm ID x 90 mm OD x 18 mm
BEARING - ball
4шт.
23
A50668
SHIM,.032" Thk
Rear spacer .032" Thk
1шт.
Part of Seal Kit P/N G101829.
1шт.
24
A50667
SPACER
- rear
2шт.
G101829
GASKET KIT
KIT - seal, Includes: Refs. 2 and 23, also includes refs on Figures 134 thru 144
1шт.
Выбрано товаров: 31
