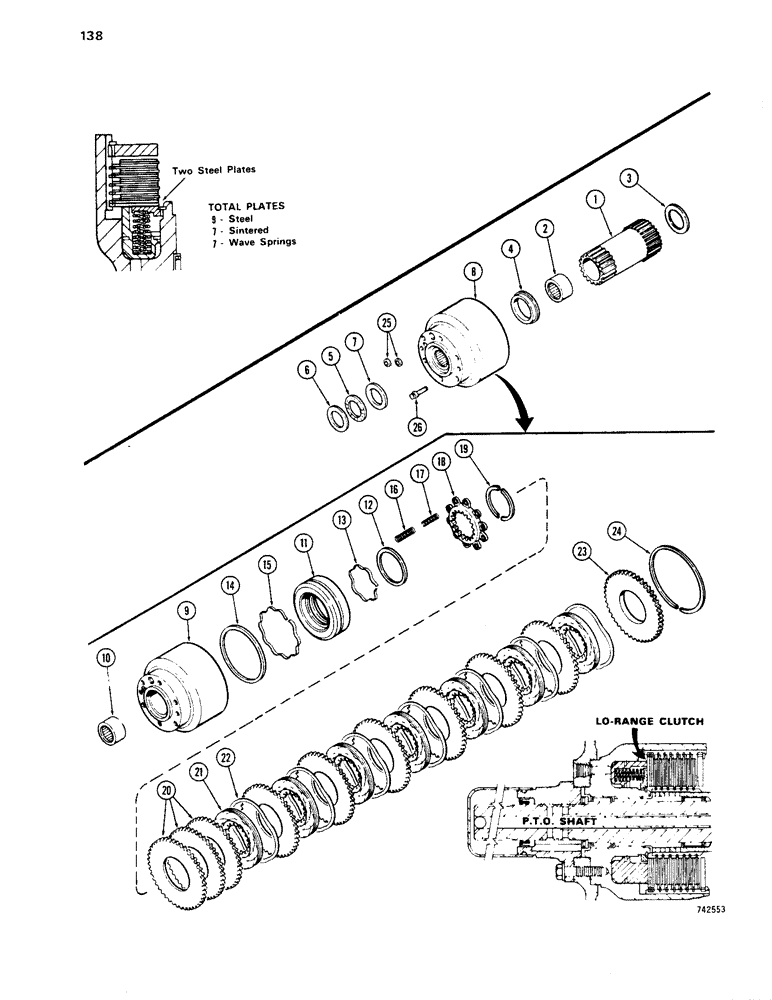

Запчасти Case 1450 (138) - TRANSMISSION SUN GEAR AND LOW RANGE CLUTCH (06) - POWER TRAIN

1

A51817

GEAR

ASSEMBLY - sun, A51441 and G100423 transmission, Includes: Ref. 2

1шт.

1

G102786

GEAR

ASSEMBLY - sun, G102840 transmission, Includes: Ref. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

BEARING - needle, each gear

1шт.

3

A51819

- thrust, front

1шт.

4

A50650

RING

WASHER - thrust

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - needle

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

WASHER - thrust, race

1шт.

7

T41021

RING RACE

WASHER - thrust, race

1шт.

8

G105820

CLUTCH

ASSEMBLY - low range, A51441 and G100423 transmissions, used before transmission SN 2845401, Includes: Ref. 9 - 24

1шт.

8

G105786

CLUTCH

ASSEMBLY - low range, G102840 transmission, transmission SN 2845401 and after, Includes: Ref. 9 - 24

1шт.

9

A51816

CLUTCH

HOUSING - G105820 clutch, uses A50646 bearing, no longer available, order G105821 housing and G105785 bearing

1шт.

9

G102114

HOUSING

- G105786 clutch, used A50646 bearing, no longer available, order G105784 housing and G105785 bearing

1шт.

9

G105821

FITTING

HOUSING - G105820 clutch, uses G105785 bearing

1шт.

9

G105784

HOUSING

- G105786 clutch, uses G105785 bearing

1шт.

10

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

- A51816 and G102114 clutch housing, 2-1/8" (54 mm) OD, Torrington No. J2816, if used, Includes: Ref. 11 - 15

1шт.

10

G105785

NEEDLE BEARING

- G105821 and G105784 clutch housings, 2-5/16" (59 mm) OD, Torrington No. HJ-283716 or McGill No. MR-28-N, if used, Includes: Ref. 11 - 15

1шт.

A50621

PISTON

ASSEMBLY

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- sealing, inner

1шт.

13

G102093

SPRING

- wave type

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - sealing, outer

1шт.

15

G102094

SPRING

- wave type

1шт.

16

A50627

SPRING

- outer

10шт.

17

A50628

SPRING

- inner

10шт.

18

A50629

RETAINER

- piston return springs

1шт.

19

A50630

RING

- snap

2шт.

20

A50640

PLATE

- steel

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

PLATE - sintered

7шт.

22

A50642

SPRING

- wave type, sintered plate, no longer required

7шт.

23

A50643

PLATE

- backing

1шт.

24

A50639

RING

- snap, backing plate retaining

1шт.

25

A50651

SEALING RING

SEAL - rubber

2шт.

Part of Seal Kit P/N G101829.

1шт.

26

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 7/8"

2шт.

G101831

GASKET KIT

KIT - clutch seal, Includes: Refs. 12 thru 17 above, see Figures 136 and 142 for additional refs in kit

1шт.

G101829

GASKET KIT

KIT - seal, Includes: Ref. 25, also includes refs on Figures 134 thru 144

1шт.
