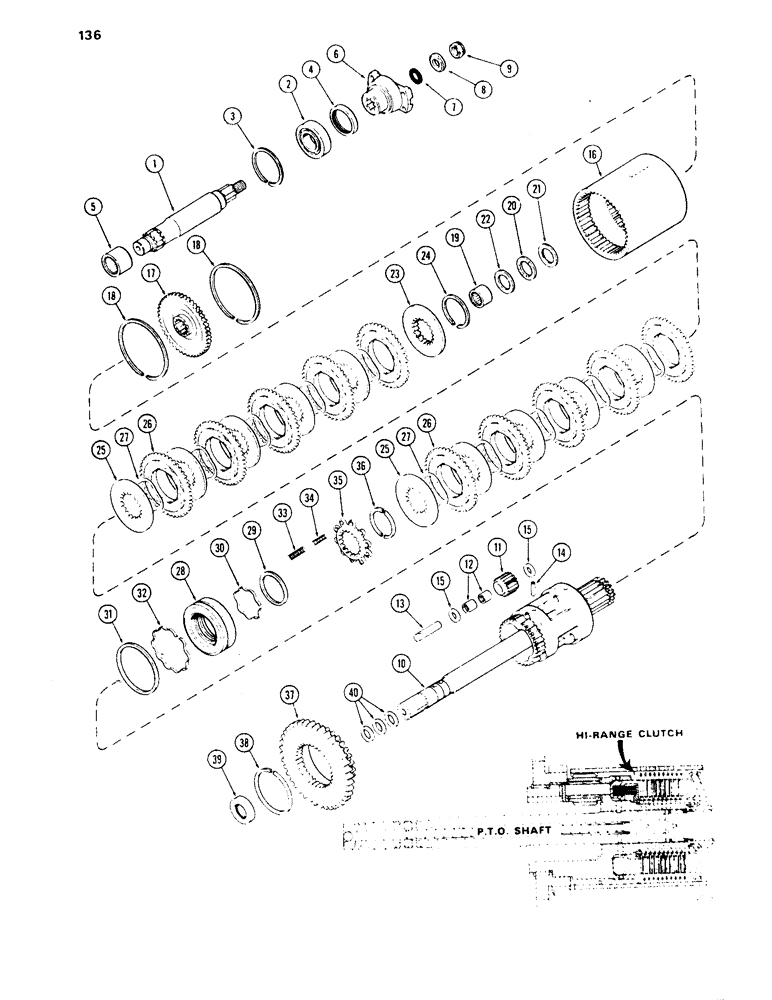

Запчасти Case 1450 (136) - TRANSMISSION INPUT SHAFT (06) - POWER TRAIN

1

A50605

SHAFT

- input

1шт.

2

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

- ball

1шт.

3

A51419

SNAP RING,#354, 3.684, Int, Spiral

RING

1шт.

4

A50420

SEAL

- oil

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

BEARING - needle

1шт.

6

A51746

YOKE

- input shaft, used before transmission SN 2806301

1шт.

6

G100590

YOKE

- input shaft, used on transmission SN 2806301 and after

1шт.

7

A50608

WASHER

- neoprene

1шт.

8

A51808

WASHER

- yoke retaining

1шт.

9

131-38

LOCK NUT,7/8"-14

NUT - hex, self-locking, 7/8" - 14 NF

1шт.

G102422

GEAR WHEEL

PLANETARY ASSEMBLY - used before transmission SN 2845401, Includes: Ref. 10 - 38

1шт.

G102784

PINION

PLANETARY ASSEMBLY - used on transmission SN 2845401 and after, Includes: Ref. 10 - 38

1шт.

10

A50964

GEAR WHEEL

CARRIER - G102422 planetary (before transmission SN 2845401)

1шт.

10

G102116

WHEEL GEAR

CARRIER - G102784 planetary (transmission SN 2845401 and after)

1шт.

11

A50616

GEAR

- trans planetary sys, 18 external teeth

3шт.

12

A62548

NEEDLE BEARING,0.62" ID x 0.88" OD x 0.875"

BEARING - needle, planetary, trans sys

6шт.

13

A50618

SHAFT

- planetary gear, trans sys

3шт.

14

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Transmission planetary system 1/8" x 7/8", Slotted

3шт.

15

A50617

WASHER

- thrust, trans planetary sys

6шт.

16

G102600

RING

GEAR - ring, G102422 planetary (before transmission SN 2845401)

1шт.

16

G102944

GEAR

- ring, G102784 planetary (transmission SN 2845401 and after)

1шт.

17

A50637

GEAR

- 70 external teeth, trans planetary sys

1шт.

18

A50639

RING

- snap, trans planetary sys

2шт.

19

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - needle, carrier, trans planetary sys

1шт.

20

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - needle, thrust, trans planetary sys

1шт.

21

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

WASHER - trans planetary sys

1шт.

22

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

WASHER - trans planetary sys

1шт.

23

A50634

PLATE

- backing, trans planetary sys

1шт.

24

A50635

SNAP RING,#287, 2.713, Ext

RING - snap, backing, trans planetary sys

1шт.

25

A50631

PLATE

- steel, 22 internal teeth, trans planetary sys

10шт.

26

G102263

DISC

PLATE - sintered, 70 external teeth, trans planetary sys

10шт.

27

A50633

SPRING

- wave type, sintered plate, trans planetary sys

10шт.

A50621

PISTON

ASSEMBLY - high range clutch, trans planetary sys, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON, trans planetary sys

1шт.

29

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- sealing, inner, trans planetary sys

1шт.

Part of clutch seal kit P/N G101831

1шт.

30

G102093

SPRING

- wave type, trans planetary sys

1шт.

Part of clutch seal kit P/N G101831

1шт.

31

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - outer, trans planetary sys

1шт.

Part of clutch seal kit P/N G101831

1шт.

32

G102094

SPRING

- wave type, trans planetary sys

1шт.

Part of clutch seal kit P/N G101831

1шт.

33

A50627

SPRING

- outer, trans planetary sys

10шт.

Part of clutch seal kit P/N G101831

1шт.

34

A50628

SPRING

- inner, trans planetary sys

10шт.

Part of clutch seal kit P/N G101831

1шт.

35

A50629

RETAINER

- piston return springs, trans planetary sys

1шт.

36

A50630

RING

- split, spring retainer, 2 half rings, trans planetary sys

1шт.

37

G102297

GEAR

- forward and reverse drive, trans planetary sys

1шт.

38

A50620

RING

- snap, gear retaining, trans planetary sys

1шт.

39

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, PTO shaft, trans planetary sys

1шт.

Part of Seal Kit P/N G101829.

1шт.

40

A51841

RING

- sealing, PTO shaft, trans planetary sys

3шт.

Part of Seal Kit P/N G101829.

1шт.

G101829

GASKET KIT

KIT - seal, Includes Refs. 39 and 40, also includes refs on Figures 134 thru 144, trans planetary sys

1шт.

G101831

GASKET KIT

KIT - clutch seal, Includes: Refs. 29 - 34, also includes refs on Figures 138 and 142, trans planetary sys

1шт.
