Запчасти Case 1450 (134) - TRANSMISSION HOUSING, COVERS, AND DIPSTICK (06) - POWER TRAIN

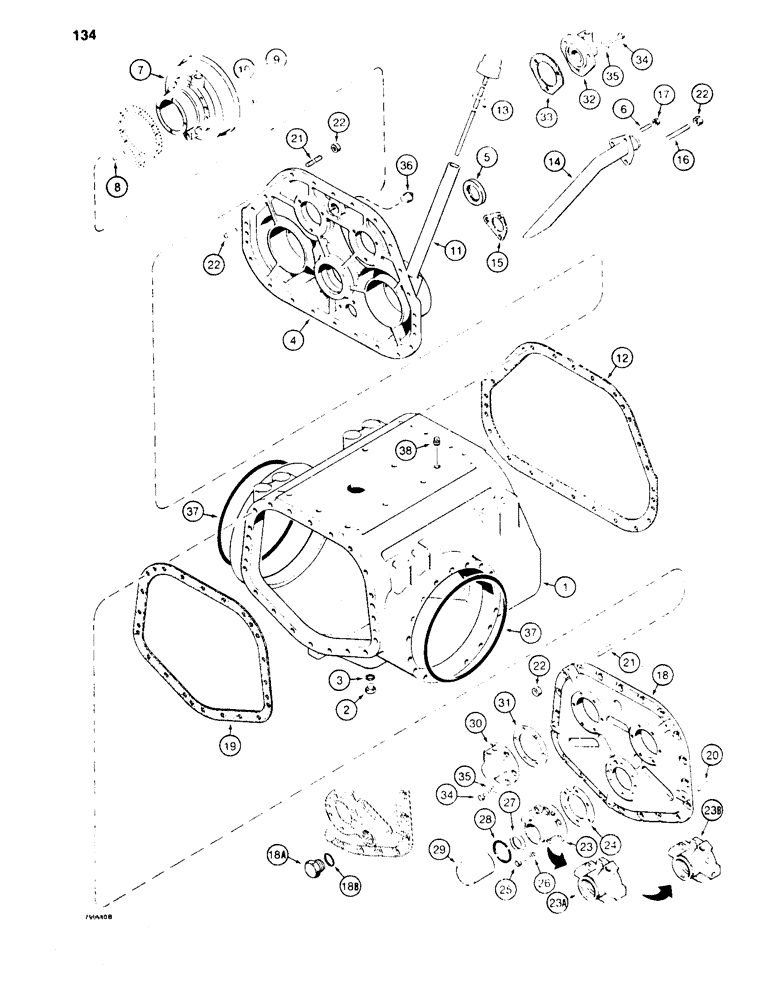

Схема запчастей Case 1450 - (134) - TRANSMISSION HOUSING, COVERS, AND DIPSTICK (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A51441

TRANSMISSION ASSEMBLY - used before transmission SN 2806301, see Figures 134 thru 166 for complete transmission

1шт.

G100423

CASE

TRANSMISSION ASSEMBLY - transmission SN 2806301 thru transmission SN 2845400, see Figures 134 thru 166 for complete transmission

1шт.

G102840

TRANSMISSION

ASSEMBLY - transmission SN 2845401 and after, see Figures 134 thru 166 for complete transmission

1шт.

1

A51169

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

A136583

HOUSING - transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G102756

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G103460

HOUSING

- transmission, when ordered as a replacement for any of the above housings, also order (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

2

A50014

PLUG

DRAIN PLUG - transmission housing

1шт.

3

A58608

GASKET

- nylon, no longer used, order G102141 copper washer

1шт.

3

G102141

SEALING WASHER

WASHER - copper, drain plug

1шт.

Part of Seal Kit P/N G101829.

1шт.

A51750

COVER ASSEMBLY - front, used with A51441 transmission only, before transmission SN 2806301, Includes: Ref. 4 - 11

1шт.

G100419

SCRAPER

COVER ASSEMBLY - front, used on transmission SN 2806301 and after only, uses 217-177 barb fitting, see figure 115, no longer used, order G104174 cover and 217-393 barb fitting, Includes: Ref. 4 - 11

1шт.

G104174

COVER

ASSEMBLY - front, used on transmission SN 2806301 and after, uses 217-393 barb fitting, see figure 115, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

5

A50420

SEAL

OIL SEAL - input shaft

1шт.

Part of Seal Kit P/N G101829.

1шт.

6

A50362

STUD

- oil suction tube

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - brake

2шт.

8

S64319

CALIPER

DOWEL - cover mounting

4шт.

9

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 NC x 2-1/4"

16шт.

10

A50689

WASHER

- flat, hardened

16шт.

11

A50596

TUBE

- oil filler

1шт.

12

G35210

GASKET

- front cover

1шт.

Part of Seal Kit P/N G101829.

1шт.

13

A50600

DIPSTICK

- transmission

1шт.

14

A51515

TUBE

- oil suction

1шт.

15

A51732

GASKET

- oil suction tube

1шт.

Part of Seal Kit P/N G101829.

1шт.

16

G102127

STUD

- 1/2" - 13 NC x 3-3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

G102759

COVER

- rear, replaces A50818 and A136169 rear covers

1шт.

18a

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

- hex head, 1-7/8" - 12 threads, may be used on service rear cover, Includes: Ref. 18B

1шт.

18b

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- plug

1шт.

19

G35211

GASKET

- rear cover

1шт.

Part of Seal Kit P/N G101829.

1шт.

20

S64319

CALIPER

DOWEL - cover mounting

4шт.

21

G102110

BOLT

- 1/2" NC x 2"

41шт.

22

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

42шт.

23

REF

INSTRUCTION

CAP - rear, input shaft, no longer available, order G102240 cap, ref 23A

1шт.

23a

G102240

CAP

- rear, input shaft, used before transmission SN 2845401 (models without diversion valve, shown on figures 163A-163B)

1шт.

23b

G102726

CAP

- rear, input shaft, used on transmission SN 2845401 and after (models with diversion valve G102234, see figures 163B and 163D)

1шт.

24

G102757

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit P/N G101829.

1шт.

24

G102758

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

Part of Seal Kit P/N G101829.

1шт.

25

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

If used Hex, 3/8"-16 x 1 5/8", G5

6шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

6шт.

26

D32117

COPPER WASHER

WASHER, COPPER

6шт.

Part of Seal Kit P/N G101829.

1шт.

27

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - PTO shaft

1шт.

Part of Seal Kit P/N G101829.

1шт.

28

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- cover, winch models only

1шт.

29

G101696

PROTECTIVE COVER

COVER - PTO shaft

1шт.

30

A50672

CAP

COVER - rear, clutch shafts

2шт.

31

1342256C1

SHIM

- .002" (.0508 mm) thick

1шт.

Part of Seal Kit P/N G101829.

1шт.

31

1342255C1

SHIM

- .007" (0.1778 mm) thick

1шт.

Part of Seal Kit P/N G101829.

1шт.

32

A50671

CAP

COVER - front, clutch shafts

2шт.

33

R11428

GASKET

- front covers, clutch shafts

2шт.

Part of Seal Kit P/N G101829.

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

35

D32117

COPPER WASHER

WASHER, COPPER

18шт.

Part of Seal Kit P/N G101829.

1шт.

36

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1" NPT, if used

1шт.

37

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- housing to final drive, used with G103460 housing

2шт.

Part of Seal Kit P/N G101829.

1шт.

38

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT, may be used with G103460 housing

1шт.

If your transmission assembly has the breather assembly mounted in the transmission control valve, you will need a 221-12 pipe plug for the hole in the top of G103460 housing. For alternative breather mounting, see Figure 153A.

1шт.

G101829

GASKET KIT

KIT - seal, Includes: Refs.. 3 (P/N G102141), 5, 12, 15, 19, 24, 26, 27, 31, 33, 35 and 37, includes other refs on Figures 134 thru 144

1шт.
