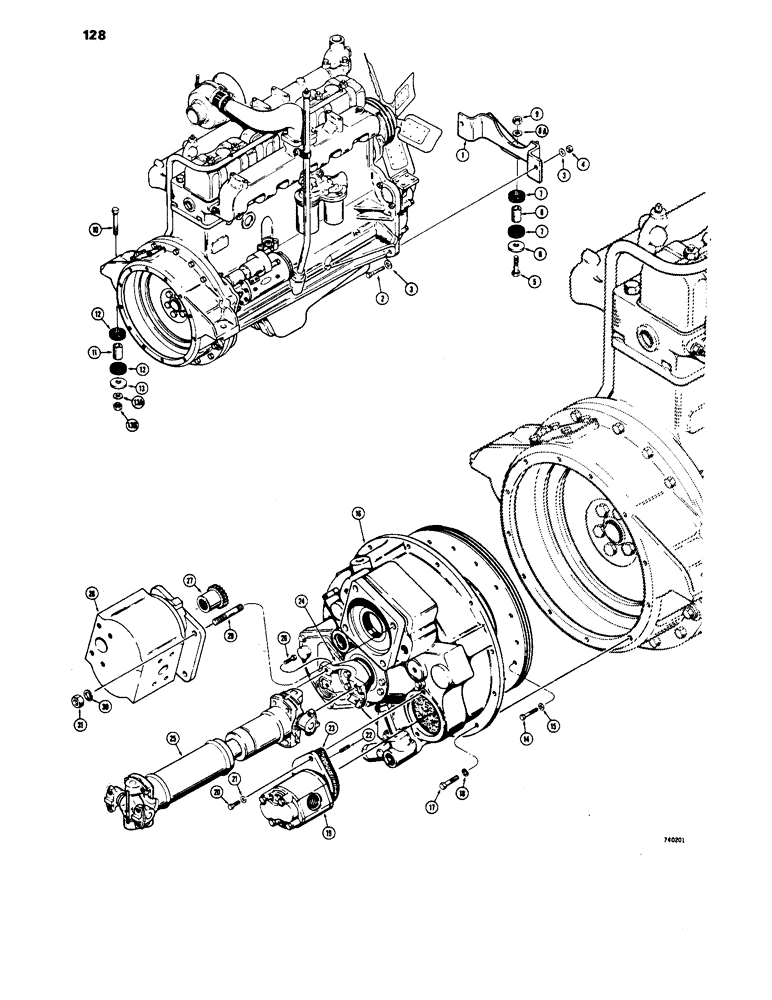

Запчасти Case 1450 (128) - ENGINE AND TORQUE CONVERTER MOUNTING (06) - POWER TRAIN

1

R35450

SUPPORT

- engine mount

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

HHCS - 3/4" - 10 NC x 2-3/4", grade 8

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

4

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

5

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 3-1/2", grade 8

1шт.

6

R33373

WASHER

- special

1шт.

7

R33359

PAD

WASHER - vibration damper

2шт.

8

R27264

SPACER

- engine mount

1шт.

8a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

9

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

10

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

HHCS - 3/4" - 10 NC x 4-1/2", grade 8

2шт.

11

R27264

SPACER

- engine mount

2шт.

12

R32663

SPACER

WASHER - vibration damper

4шт.

13

D31854

WASHER

- special

2шт.

13a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

13b

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

14

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

HHCS - 3/8" - 16 NC x 3/4"

16шт.

15

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special

16шт.

16

REF

INSTRUCTION

TORQUE CONVERTER - complete, see Figure 120

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

18

92-6

LOCK WASHER,3/8"

12шт.

19

R25586

PUMP

- torque converter, parts list Figure 126

1шт.

R25586R

REMAN-HYD PUMP

1450

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

D32117

COPPER WASHER

WASHER, COPPER, Special

2шт.

22

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

23

D32000

GASKET

- pump

1шт.

24

REF

INSTRUCTION

YOKE - drive, see page 137 for yokes

1шт.

25

REF

INSTRUCTION

SHAFT - drive, see Figures 130 and 132 for proper shafts

1шт.

26

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

27

D37030

HUB

GEAR pump drive

1шт.

28

REF

INSTRUCTION

PUMP - equipment, see Figures 200, 204

1шт.

29

D45312

STUD

- 1/2" - 13 NC x 3-1/8"

4шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.
