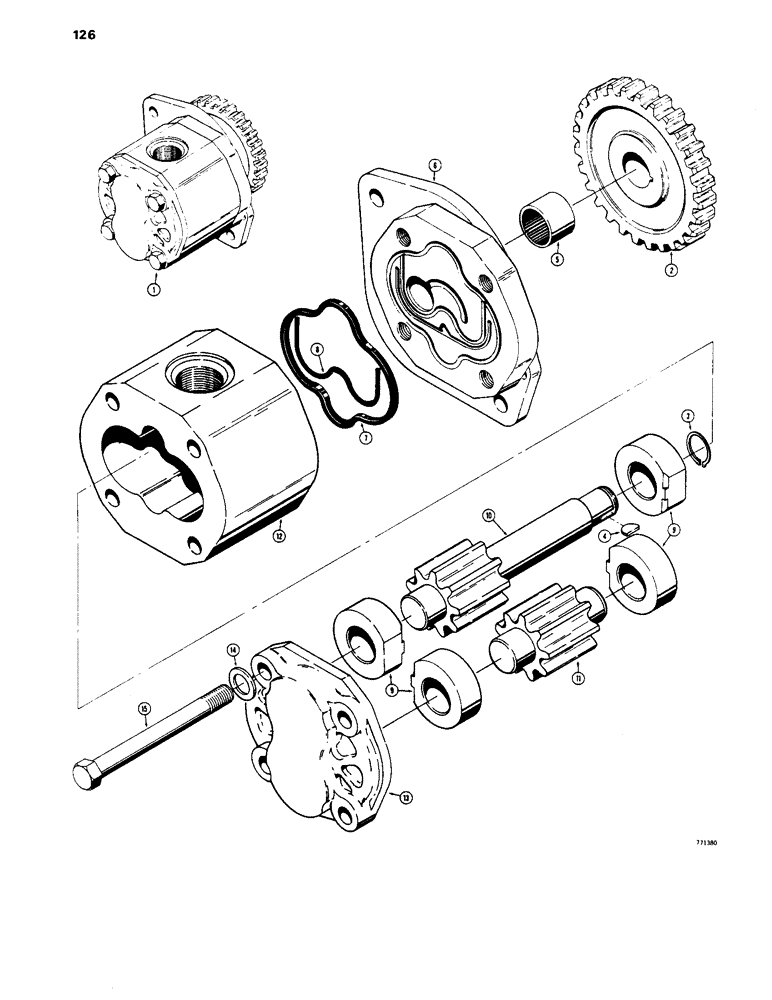

Запчасти Case 1450 (126) - R25586 TORQUE CONVERTER PUMP (06) - POWER TRAIN

1

R25586

PUMP

- torque converter, Warner Motive no. P2-15 AZ5-1-R-01, Includes: Ref. 2 - 15

1шт.

R25586R

REMAN-HYD PUMP

1450

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

D32020

GEAR

- pump drive

1шт.

3

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

4

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

5

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

6

R30679

COVER

- shaft end

1шт.

7

D53279

SEAL

- square type

2шт.

8

D53280

SEAL

O-RING

1шт.

9

R30036

BEARING,0.7505" ID x 1.5385" OD x 0.4130"

- gear

4шт.

R30034

GEAR

SET - drive and driven, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

12

R30033

HOUSING

- gear

1шт.

13

C11644

COVER

- port end

1шт.

14

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8"

4шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

4шт.
