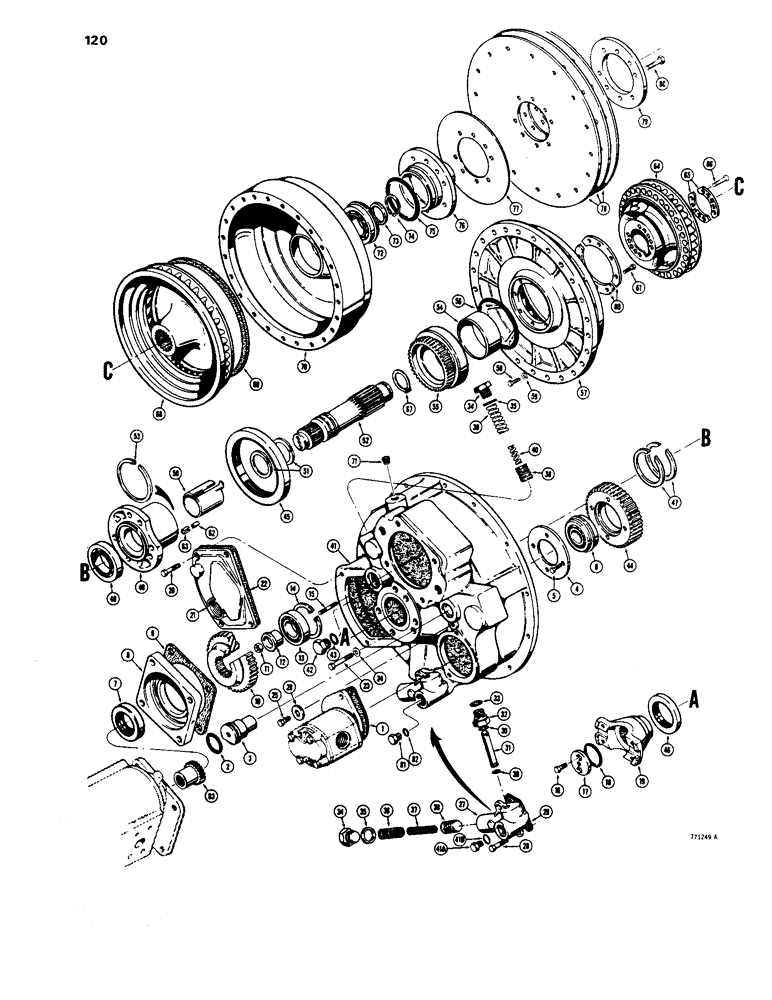

Запчасти Case 1450 (120) - TORQUE CONVERTERS (06) - POWER TRAIN

R28827

CONVERTER

TORQUE CONVERTER - dozer models, Twin Disc spec. no. N-63081, before tractor sn 8379501, (to service, order (1) R36913 torque converter and (1) R38920 drive shaft kit), Includes: Ref. 1 - 31

1шт.

If driveshaft yoke is stamped with driveshaft part number (see page 133), use torque converters for machine with S/N 8379501 and after.

1шт.

R36913

CONVERTER

TORQUE CONVERTER - dozer models, Twin Disc spec. no. N64095, tractor sn 8379501 and after, Includes: Ref. 1 - 31

1шт.

R28828

TORQUE CONVERTER - loader models, Twin Disc spec. no. N62906, before tractor sn 8379501, (to service, order (1) R36914 torque converter and (1) R38920 drive shaft kit), Includes: Ref. 1 - 31

1шт.

If driveshaft yoke is stamped with driveshaft part number (see page 133), use torque converters for machine with S/N 8379501 and after.

1шт.

R36914

CONVERTER

TORQUE CONVERTER - loader models, twin disc spec. no. N64096, tractor sn 8379501 and after, Includes: Ref. 1 - 31

1шт.

1

D32000

GASKET

- pump mount

1шт.

2

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

1шт.

3

R29100

SHAFT

- idler gear

1шт.

4

R29099

PLATE

- retaining

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

BEARING - ball

1шт.

7

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

- oil

1шт.

8

D31938

CARRIER

- oil seal

1шт.

9

D32004

GASKET

- carrier

1шт.

10

D32003

GEAR

- driven

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

12

D32032

BEARING,1.3782" OD x 1.03

RETAINER - bearing

1шт.

13

R29094

BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W

BEARING - ball

1шт.

14

D32069

RING

- snap

1шт.

15

D32067

STUD

- 3/8" - 24 NF x 1-1/2"

1шт.

16

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

17

D32018

PLATE

- yoke retaining

1шт.

18

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

1шт.

19

R28835

YOKE

- driveshaft, R28827 and R28828 converters

1шт.

19

R36611

YOKE

- driveshaft, R36913 and R36914 converters

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

R29098

PLATE

- cover

1шт.

22

D32005

GASKET

- cover

1шт.

23

15-640

SCREW,Hex, 3/8" - 16 x 2 1/2"

HHCS - 3/8" - 16 NC x 2-1/2"

6шт.

24

D32117

COPPER WASHER

WASHER, COPPER, Special

6шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

26

D32118

WASHER

- special

1шт.

27

D37378

HOUSING

BODY - relief valve

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

D32002

GASKET

- relief valve

1шт.

30

D32114

O-RING,0.75" ID x 0.875" OD

2шт.

31

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

- relief valve

1шт.

32

D37379

CONNECTOR, ELEC

CONNECTION - straight, R28827 and R28828 only

1шт.

33

D37371

OIL SEAL

O-RING

1шт.

34

D32013

PLUG

- relief valve

2шт.

35

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- relief valve

1шт.

36

D72857

SPRING

- outer, used converter sn 3D2983 and after

1шт.

Converters before S/N 3D2983, use one each of Ref. 36 and 37 when replacing either spring.

1шт.

37

D72856

SPRING

O-RING - inner, used converter sn 3D2983 and after

1шт.

38

D32014

PISTON

- relief valve

2шт.

39

D32031

SPRING

- outer

1шт.

40

D32021

SPRING

- inner ( replaced D32031)

1шт.

41

R29097

HOUSING

- use D77622 housing, 218-5160 and 221-814 plugs

1шт.

41

D77622

HOUSING

1шт.

42

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 43 Hex Hd, 7/16"-20 ORB

1шт.

43

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

44

R29096

GEAR

- idler

1шт.

45

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

- oil

1шт.

46

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

- oil

1шт.

47

D32070

RING

- snap

2шт.

48

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball

1шт.

49

R31283

CARRIER

- guide, use D75861 carrier, D75859 bushing and A20231 ring

1шт.

49

D75861

GUIDE

CARRIER - guide, used with A20231 ring

1шт.

50

D32027

SLEEVE

- split

1шт.

51

A20229

RING

- piston

2шт.

52

D32026

SHAFT

- output

1шт.

53

A20231

RING

1шт.

D75862

GEAR

ASSEMBLY - pump drive, Includes: Ref. 54 and 55

1шт.

54

D75859

BUSHING,89.09mm ID x 93.75mm OD x 27.18mm L

1шт.

55

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

55

D49383

IMPELLER

- converter, loader models, Includes: Ref. 56 - 81

1шт.

56

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

Latch

1шт.

57

D37376

TURBINE

IMPELLER - converter, dozer models

1шт.

58

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

59

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

24шт.

60

D32016

PLATE

- clamp

2шт.

61

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

8шт.

62

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, LOCK, 5/16" dia x 3/8"

4шт.

63

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

64

D37377

GUIDE

WHEEL - converter, dozer models

1шт.

64

D31936

GUIDE

WHEEL - converter, loader models

1шт.

65

D32010

PLATE

- clamp

2шт.

66

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - fillister head, 5/16" - 18 NC x 1"

6шт.

67

A22889

RING

- snap

1шт.

68

D31935

TURBINE

- converter

1шт.

69

D31998

GASKET

- ring

1шт.

70

D32007

HOUSING

- rotating

1шт.

71

221-841

PLUG

- square socket, 1/4"

1шт.

72

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

BEARING - ball

1шт.

73

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - bearing

1шт.

74

A26946

RING

- snap

1шт.

75

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

76

D32015

WHEEL

PILOT - flywheel

1шт.

77

D32025

SHIM

- flex plate

1шт.

78

D32017

PLATE

FLEX PLATE - converter

3шт.

79

D32028

WASHER

- support

1шт.

80

121-421

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 1 1/4", Gr 8

HHCS - 1/2" - 13 NC x 1-1/4", lock, grade 8

6шт.

81

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 82 Hex Hd, 9/16"-18 ORB

1шт.

82

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

83

D37030

HUB

GEAR - equipment pump drive

1шт.

R38109

KIT

- overhaul, Includes: Ref. 6, 13, 14, 47, 48, 50, 51, 54, 67, 72, 74 and 76

1шт.

R38108

GASKET KIT

KIT - seal, Includes: Ref. 1, 7, 9, 18, 22, 24, 29, 30, 33, 35, 43, 45, 46, 51, 69, 75 and 77

1шт.
