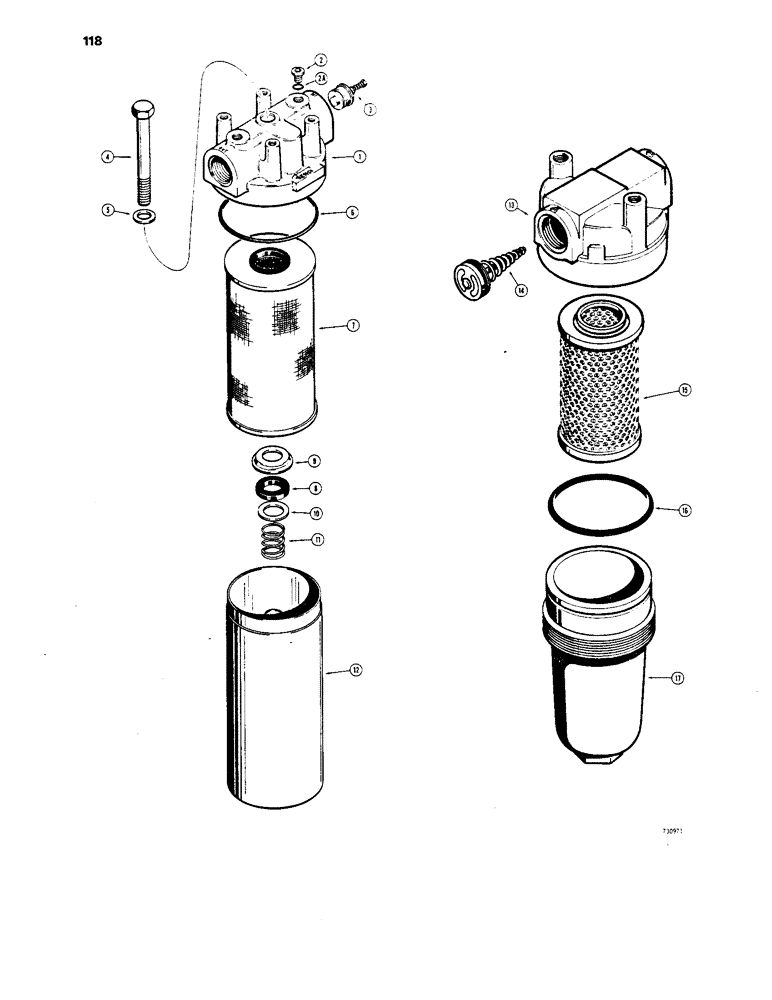

Запчасти Case 1450 (118) - R38132 OIL FILTER (06) - POWER TRAIN

R38132

FILTER, ENGINE OIL

FILTER - complete, transmission, Includes: Ref. 1 - 12

1шт.

1

R31952

HEAD (CYLINDER)

HEAD - filter

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 2A Hex Soc, 7/16"-20 ORB

2шт.

2a

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

R31961

VALVE

- bypass

1шт.

4

28-1084

BOLT,Hex, 5/8" - 18 x 5-1/4", Gr 8

HHCS - 5/8" - 18 NF x 5-1/4", grade 8

1шт.

5

R31957

GASKET

- bolt

1шт.

D83130

FILTER, ELEMENT

KIT, Includes: Ref. 6 - 8

1шт.

6

R31959

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

R31955

GASKET

- element

1шт.

9

R31954

CAP

- gasket

1шт.

10

F67231

WASHER

- special

1шт.

11

R31956

VALVE SPRING

SPRING - element

1шт.

12

R31953

BOWL

HOUSING - element

1шт.

R26466

FILTER

- complete; Incl. D43798 Head, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501, Includes: Ref. 13 - 17

1шт.

D43798

HEAD

ASSEMBLY, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501

1шт.

13

NSS

NOT SOLD SEPARAT

HEAD - filter, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501, Includes: Ref. 14

1шт.

14

D49376

VALVE

- relief, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501

1шт.

15

R30103

FILTER

SCREEN - filter, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501

1шт.

16

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501

1шт.

17

R30102

HOUSING

- filter, R26466 Transmission oil filter (suction line) Uses fittings without o-rings/prior to to tractor P.I.N. 8379501

1шт.

R36416

FILTER

- complete, Incl. D73719 Head, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after, Includes: Ref. 13 - 17

1шт.

D73719

HEAD

ASSEMBLY, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HEAD, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after

1шт.

14

D49376

VALVE

- relief, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after

1шт.

15

R30103

FILTER

SCREEN - filter, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after

1шт.

16

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after

1шт.

17

R30102

HOUSING

- filter, R36416 Transmission oil filter (suction line) Uses fittings with o-rings/tractor P.I.N. 8379501 & after

1шт.
