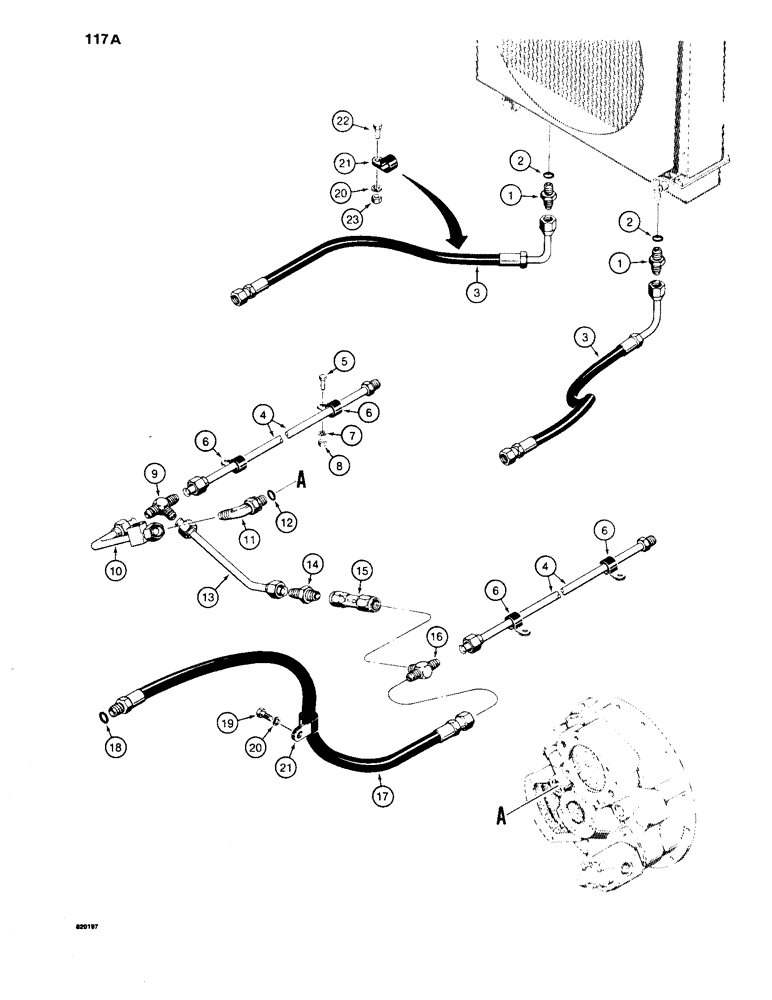

Запчасти Case 1450 (117A) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (06) - POWER TRAIN

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 2

2шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

3

R28804

HOSE

- hydraulic, at radiator

2шт.

4

R28808

TUBE

- radiator to torque converter, dozer and drawbar models

2шт.

4

R28806

TUBE - radiator to torque converter, loader models

2шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-style, tubes

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

9

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

10

R32572

TUBE

- hydraulic, at converter

1шт.

11

D38975

FITTING

ELBOW - 90 degree, adjustable, male, Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

13

R28816

TUBE,0.75" OD x 16.2, 3.63" L

- hydraulic, crossover

1шт.

14

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

15

R27233

VALVE

RELIEF VALVE - cooling system

1шт.

16

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- male

1шт.

17

R28803

HOSE

- radiator to transmission, 40" (1016 mm) long, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

19

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

20

92-5

LOCK WASHER,5/16"

3шт.

21

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

- hose, P-style

3шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.
