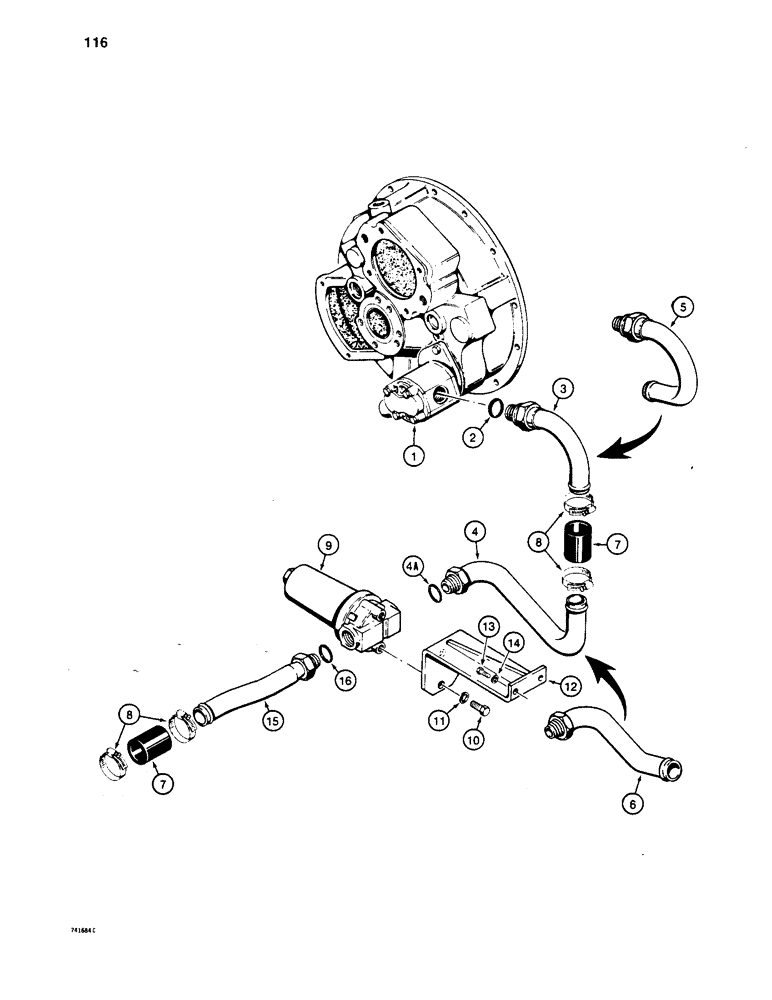

Запчасти Case 1450 (116) - CRAWLER HYDRAULIC CIRCUITS, TRANSMISSION TO TORQUE CONVERTER PUMP (06) - POWER TRAIN

1

R25586

PUMP

ASSEMBLY - torque converter, parts list Figure 126

1шт.

R25586R

REMAN-HYD PUMP

1450

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube at pump

1шт.

3

R28821

TUBE

- at pump, no longer used, order R43264 and R43262 tubes, see refs 5 and 6, Includes: Ref. 4A

1шт.

4

R34246

TUBE

- to filter, before tractor SN 8379501, Includes: Ref. 4A

1шт.

4

R36463

TUBE

- to filter, tractor SN 8379501 and after, no longer used, order R43262 and R43264 tubes, see refs 5 and 6, Includes: Ref. 4A

1шт.

4a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

5

R43264

TUBE,1.5" OD x 4.05, 4.5" L

- at pump, use with R43262 tube

1шт.

6

R43262

TUBE,1.5" OD

- to filter, use with R43264 tube

1шт.

7

R43922

HOSE

- 1-1/2" (38 mm) ID x 4" (102 mm) long

2шт.

8

R33384

CLAMP

- adjustable, hose

4шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - suction, see Figure 118 for correct assembly and components

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

R28812

BRACKET - filter mounting

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

R34248

TUBE

- used before tractor SN 8379501

1шт.

15

R36459

TUBE

- used on tractor SN 8379501 and after, Includes: Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.
