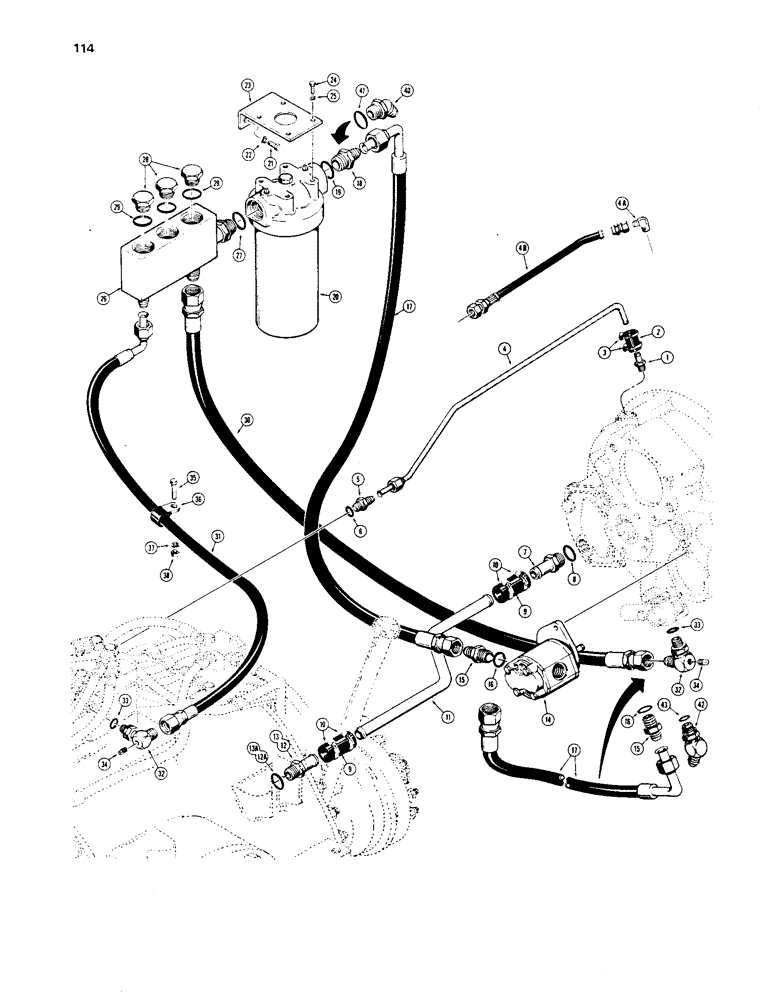

Запчасти Case 1450 (114) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Barb, Used with R31431 tube 3/8" Hose X 1/4" NPTF Beaded

1шт.

2

R31433

HOSE

- 3/8" ID x 1-13/32" long (10 mm x 36 mm)

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

4

R31431

TUBE

- if used

1шт.

4a

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degree, male, A51456 hose

1шт.

4b

A51456

HYDRAULIC HOSE

HOSE - if used

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male, Incl. Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

- straight, hose stem, Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

2шт.

10

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

11

R36565

TUBE

-, Serial Range: converter-transmission

1шт.

12

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

BARB FITTING - 1-1/16" - 12 NF OD thread, if used, Includes: Ref. 12A

1шт.

12a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 217-177 barb fitting

1шт.

13

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

BARB FITTING - 1-5/16" - 12 NF OD thread, if used, Includes: Ref. 13A

1шт.

13a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 217-393 barb fitting

1шт.

14

R25586

PUMP

- torque converter, parts list Figure 126

1шт.

R25586R

REMAN-HYD PUMP

1450

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight (requires 1-2), Includes: Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

R31064

HOSE

ASSEMBLY - if used, see ref 30, test block to pressure regulator valve (requires 1-2)

2шт.

18

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight male, use 218-5144 fitting, ref 40, Incl. Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

R38132

FILTER, ENGINE OIL

FILTER - oil, parts list figure 118

1шт.

21

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 3/4"

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

R31062

BRACKET

- mounting, filter

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

R31063

BLOCK

- test, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 29 Hex Hd, 1 1/16"-12 ORB

3шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

R31065

HOSE

- 45" (1143 mm) long, if used, see item 17, test block to pressure regulator valve

1шт.

31

R31066

HOSE

ASSEMBLY - test block to transmission valve

1шт.

32

R30286

FITTING

- 90 degree, adjustable, used with ref 30 hose only at pressure regulator valve (requires 1-2), Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT (requires 1-2)

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

T50104

CLAMP

- P-style

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

40

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - 45 degree, adjustable, Includes: Ref. 41

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

218-5528

ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring

- 45 degree, male, if used, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.
