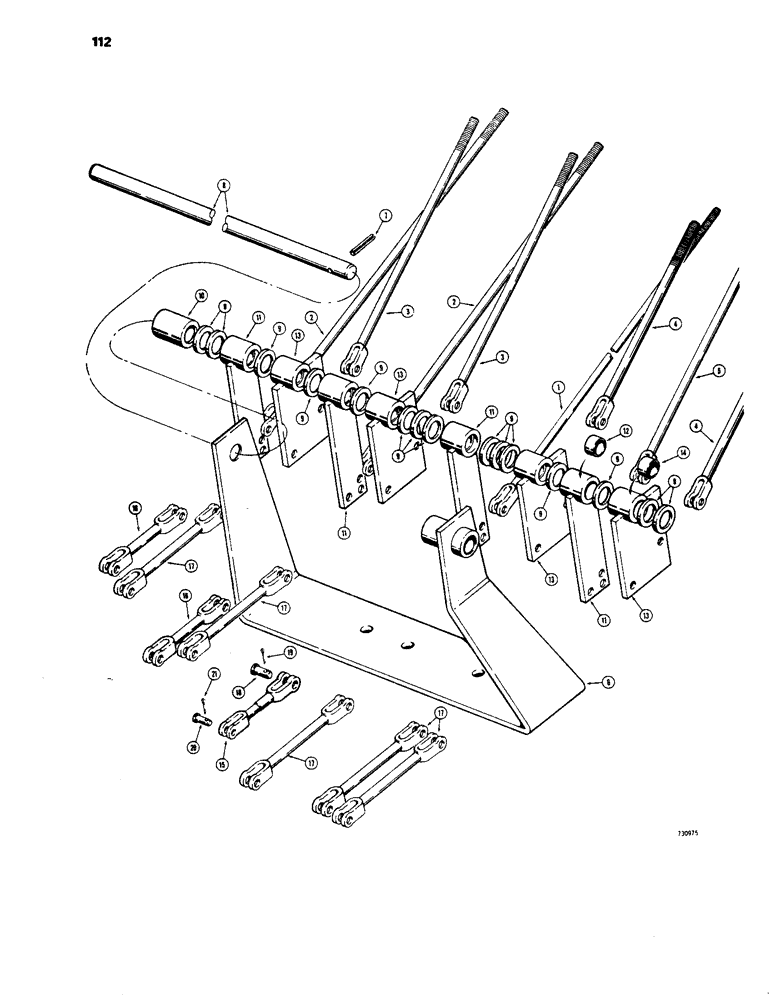

Запчасти Case 1450 (112) - TRANSMISSION LINKAGE AND BELLCRANKS, BEFORE TRACTOR SN 8379501 (06) - POWER TRAIN

1

R31417

ROD

- modulator, Serial Range: control,-brake

1шт.

2

R31416

ROD

- brake, Serial Range: control,-brake

2шт.

3

R31334

ROD

- track, Serial Range: speed,-tower

2шт.

4

R31415

ROD

- forward and, Serial Range: reverse,-tower

2шт.

5

R31335

ROD

-, Serial Range: high-low,-tower

1шт.

6

R31382

BRACKET - bellcrank retaining

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

8

R31393

SHAFT

- bellcrank

1шт.

9

A7915

SHIM,.0359" Thk

(20 gauge) .0359" Thk

15шт.

10

R31392

BUSHING

SPACER - bellcrank

1шт.

11

R31389

LEVER

BELLCRANK - long, Includes: Ref. 12

4шт.

12

R31144

BUSHING

- bellcrank

1шт.

13

R31385

LEVER

BELLCRANK - short, Includes: Ref. 14

4шт.

14

R31144

BUSHING

- bellcrank

1шт.

15

R31396

ROD

- modulator, at valve

1шт.

16

R31394

ROD

- brake, at valve

2шт.

17

R31395

ROD

- track speed and direction, at valve

5шт.

18

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

33шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

33шт.

20

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

21

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
