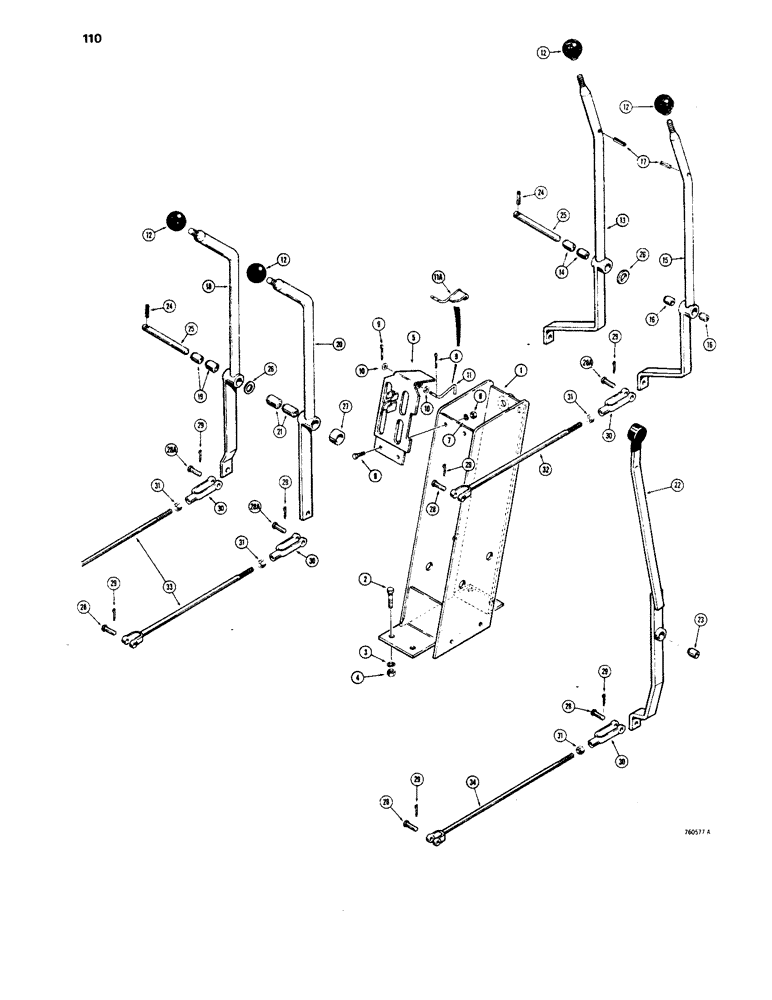

Запчасти Case 1450 (110) - TRANSMISSION CONTROL TOWER AND LEVERS (06) - POWER TRAIN

1

R28894

BOOM

TOWER - control

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

R28887

LARGE PLATE

PLATE - lock

1шт.

6

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

10

195-17

WASHER,1/4"

- flat, 1/16"

2шт.

11

REF

INSTRUCTION

LOCK - neutral start, use R36318 lock

1шт.

11a

R36318

LOCK

- neutral start

1шт.

12

70213

KNOB

- lever

4шт.

13

R28912

LEVER

- track speed, LH, Includes: Ref. 14

1шт.

14

R31144

BUSHING

- lever

2шт.

15

R28914

LEVER

- track speed, RH, Includes: Ref. 16

1шт.

16

R31144

BUSHING

- lever

2шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

18

R28917

LEVER

- forward and reverse, LH, Includes: Ref. 19

1шт.

19

R31144

BUSHING

- lever

2шт.

20

R28919

LEVER

- forward and reverse, RH, Includes: Ref. 21

1шт.

21

R31144

BUSHING

- lever

2шт.

22

R26827

LEVER

- dual range, high and low, Includes: Ref. 23

1шт.

23

R31144

BUSHING

- lever

1шт.

24

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN - roll, 3/8" x 1-1/4"

2шт.

25

R26815

SHAFT

- lever

2шт.

26

A7915

SHIM,.0359" Thk

(20 gauge) .0359" Thk

1шт.

27

R26854

SPACER

- rear shaft

1шт.

28

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

5шт.

28a

D45388

PIN

- clevis

5шт.

29

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

10шт.

30

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, adjustable

5шт.

31

25-115

NUT,5/16"-24, G5

- hex, lock, 5/16"-24 NF

5шт.

32

R31334

ROD

- track speed, before tractor sn 8379501

2шт.

32

R27499

ROD

- track speed, tractor sn 8379501 and after

2шт.

33

R31415

ROD

- forward and reverse, before tractor sn 8379501

2шт.

33

R36499

ROD

- forward and reverse, tractor sn 8379501 and after

2шт.

(19.27" Long)

1шт.

34

R31335

ROD

- connecting, high-low, before tractor sn 8379501

1шт.

34

R27499

ROD

- connecting, high-low, tractor sn 8379501 and after

1шт.
