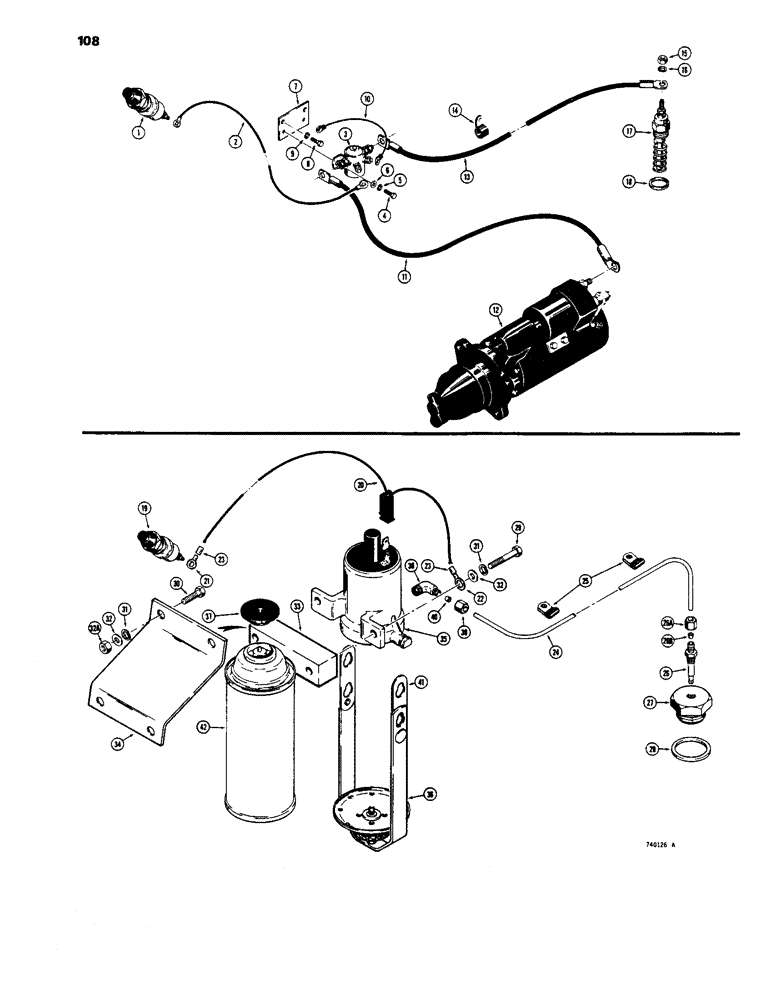

Запчасти Case 1450 (108) - ENGINE PRE-HEATER, COLD START AID (ETHER INJECTION) (04) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button

1шт.

2

R29263

WIRE -, Serial Range: switch-solenoid

1шт.

3

D31479

SOLENOID SWITCH

SOLENOID - switch

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

7

D47796

BRACKET

- solenoid mounting

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - 5/16" - 10 NC x 3/4"

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

D31548

ELECTRICAL WIRE

WIRE - ground

1шт.

11

D47797

CABLE

-, Serial Range: solenoid-starter

1шт.

12

REF

INSTRUCTION

STARTER - engine, see Figures 84 to 89A for starter

1шт.

13

L11368

CABLE

-, Serial Range: solenoid-heater

1шт.

14

49838

CLAMP

- cable

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

A66333

HEATER

- manifold

1шт.

18

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

19

D34924

SWITCH

- push button, cold start aid (ether injection)

1шт.

20

R29794

CABLE

ASSEMBLY - solenoid, cold start aid (ether injection)

1шт.

21

223-325

TERMINAL - electrical, at switch, cold start aid (ether injection)

1шт.

22

223-326

TERMINAL - electrical, at ground, cold start aid (ether injection)

1шт.

23

223-83

SLEEVE

- insulating, if used, cold start aid (ether injection)

2шт.

24

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE - nylon, cold start aid (ether injection)

1шт.

25

D43839

CLAMP

- tube, cold start aid (ether injection)

2шт.

L35955

NOZZLE CAP

INJECTOR - manifold, cold start aid (ether injection), Includes: Ref. 26 - 26B

1шт.

26

NSS

NOT SOLD SEPARAT

NOZZLE, cold start aid (ether injection)

1шт.

26a

222-110

TUBE NUT,3/8"-24

NUT - compression, cold start aid (ether injection)

1шт.

26b

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression, cold start aid (ether injection)

1шт.

27

L10283

PLUG

- reducing, cold start aid (ether injection)

1шт.

28

A20916

MANIFOLD GASKET

GASKET - plug, cold start aid (ether injection)

1шт.

29

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

R29258 spacer, Cold start aid (Ether injection) Hex, 5/16"-18 x 2", G5

2шт.

30

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", R32981 bracket, cold start aid (ether injection)

4шт.

31

92-5

LOCK WASHER,5/16"

(Requires 2-4), cold start aid (ether injection) 5/16"

4шт.

32

195-21

WASHER,5/16"

- flat, (Requires 2-4), Cold start aid (Ether injection) 5/16"

4шт.

32a

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

33

R29258

SPACER

- solenoid, if used, use R32981 bracket, (4) 13-516 bolts, (2) 25-105 nuts, (2) 92-5 lock washers and (2) 195-21 flat washers for service, cold start aid (ether injection)

1шт.

34

R32981

BRACKET

- solenoid, if used, cold start aid (ether injection)

1шт.

R29793

GLOW PLUG

SOLENOID ASSEMBLY - bail and solenoid, cold start aid (ether injection), Includes: Ref. 35 - 40

1шт.

35

NSS

NOT SOLD SEPARAT

SOLENOID - electrical, cold start aid (ether injection)

1шт.

36

A45687

CLAMP

BAIL - can, cold start aid (ether injection)

1шт.

37

R30786

GASKET

- can, cold start aid (ether injection)

1шт.

38

A44809

FITTING

- 90deg., compression, cold start aid (ether injection), Includes: Ref. 39 and 40

1шт.

39

222-110

TUBE NUT,3/8"-24

NUT - compression, cold start aid (ether injection)

1шт.

40

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression, cold start aid (ether injection)

1шт.

41

R30812

LINK

- bail extension, cold start aid (ether injection)

2шт.

42

REF

INSTRUCTION

CAN - ether, 12 oz. (354.88 ml) aerosol, models without R32981 bracket and R30812 link must use 12 Oz. (354.88 ml) size, cold start aid (ether injection)

1шт.

42

B17072

START SPRAY FLUID

CAN - ether, 16 oz. (473.17 ml), cold start aid (ether injection)

1шт.
