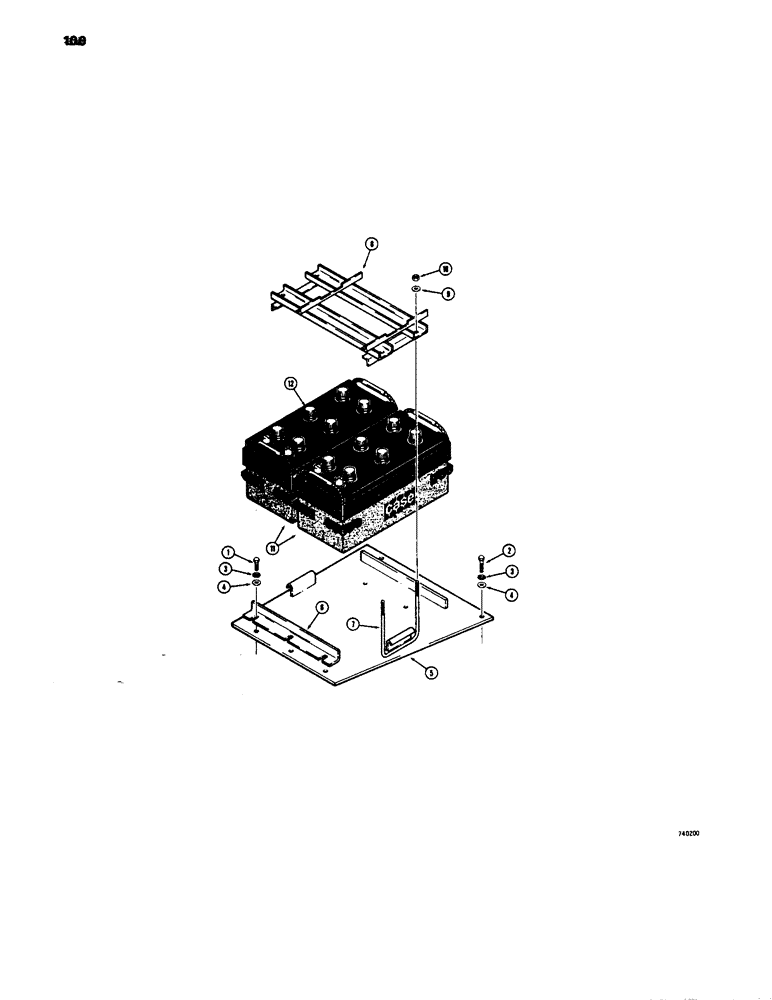

Запчасти Case 1450 (100) - BATTERY AND HOLDDOWN (04) - ELECTRICAL SYSTEMS

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

5шт.

4

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

5

R28673

PLATE - battery support

1шт.

6

R28678

CLAMP

- battery, angle

1шт.

7

R29281

BOLT

- battery holddown, "U"

2шт.

8

R28679

HOLDER

HOLDDOWN - battery

1шт.

9

195-25

WASHER,3/8"

- flat, 1/2"

4шт.

10

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

4шт.

11

D44178

DRY BATTERY

- 12 volt, Includes: Ref. 12

2шт.

12

R30819

CYLINDER END CAP

CAP - battery, non-spill

6шт.
