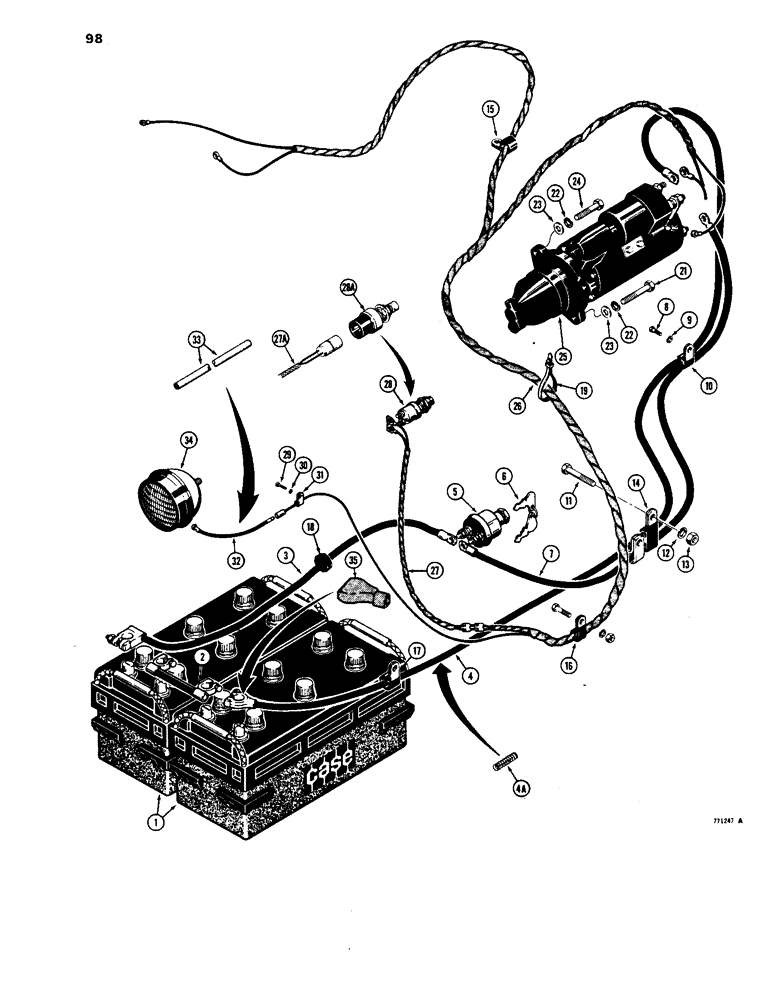

Запчасти Case 1450 (098) - REAR ELECTRICAL WIRING, INSTRUMENT PANEL TO STARTER, BATTERY USED TRAC SN 8380101 & AFT (04) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

BATTERIES - see Figure 100 for related parts

2шт.

2

R36419

CABLE

- battery

1шт.

3

R29237

CABLE

- negative

1шт.

4

R40407

CABLE

- positive

1шт.

4a

R44806

LOOM

CONDUIT - plastic

1шт.

5

R25784

SWITCH

- master disconnect, Includes: Ref. 6

1шт.

6

D36822

KEY

- set of two

1шт.

7

R40403

CABLE PULLING GRIP

CABLE -, Serial Range: switch-starter

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

R14668

CLAMP

- cables

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

14

D49498

CLAMP

2шт.

15

R14668

CLAMP

1шт.

16

49838

CLAMP

1шт.

17

49774

CLAMP

1шт.

18

D50667

GROMMET

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - wire

1шт.

20

F43611

CLIP

1шт.

21

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 2"

2шт.

22

92-8

LOCK WASHER,1/2"

3шт.

23

R24323

WASHER

- hardened

3шт.

24

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

25

R26137

STARTER MOTOR

MOTOR - starting, 24V, parts list Figures 84 and 86

1шт.

26

R29352

HARNESS

- rear

1шт.

27

R27209

ELECTRICAL WIRE

WIRE - D34924 switch

1шт.

27a

R40985

ELECTRICAL WIRE

WIRE - R40432 switch

1шт.

28

D34924

SWITCH

- uses spade connection, use R40998 kit - see Figure 106

1шт.

28a

R40432

SWITCH

- uses plug connections

1шт.

29

F42236

STEP BOLT

BOLT - shoulder

1шт.

30

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

31

F43611

CLIP

CLAMP

3шт.

32

A18911

ELECTRICAL WIRE

WIRE - rear light

1шт.

33

D42919

LOOM

- wire

1шт.

34

L45149

HEADLIGHT

LIGHT - rear, parts list Figure 104

1шт.
