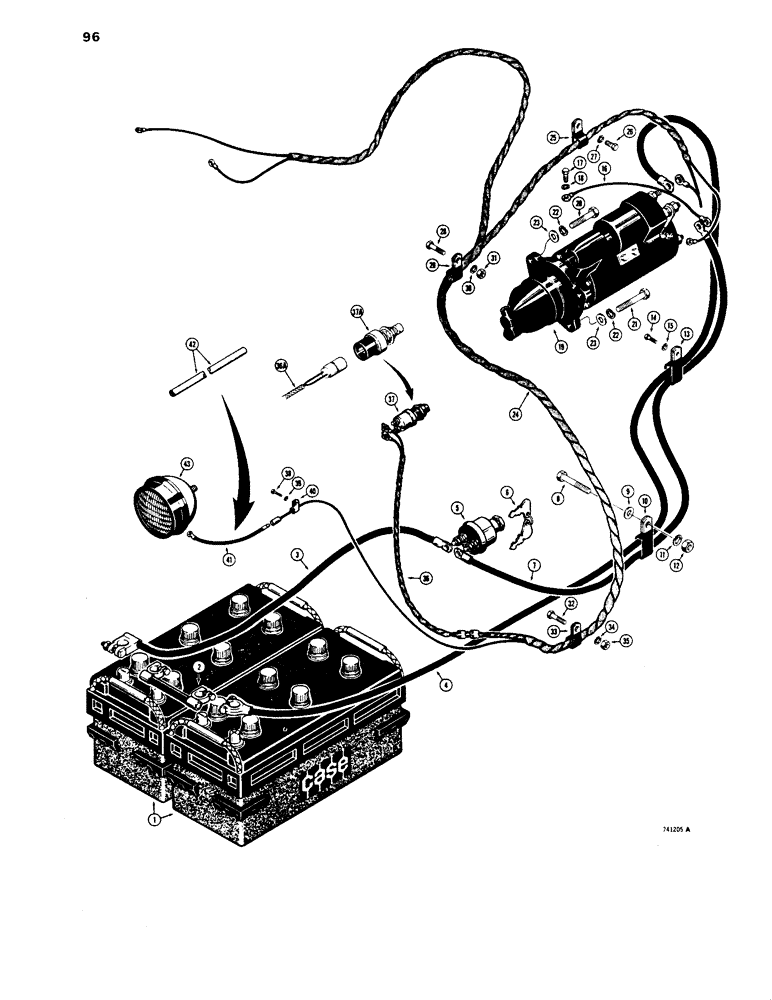

Запчасти Case 1450 (096) - REAR ELECTRICAL WIRING, INSTRUMENT PANEL TO STARTER, BATTERY USED BEFORE TRAC SN 8380101 (04) - ELECTRICAL SYSTEMS

1

D44178

DRY BATTERY

BATTERIES - See Figure 100 for related parts

2шт.

2

R36419

CABLE

- battery, jumper

1шт.

3

R29237

CABLE

- battery to master disconnect, negative

1шт.

4

R40407

CABLE

- battery to starter, positive

1шт.

5

R25784

SWITCH

- master disconnect, Includes: Ref. 6

1шт.

6

D36822

KEY

- set of two, switch

1шт.

7

R29238

CABLE

-, Serial Range: switch-starter

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

1шт.

10

D35908

CLAMP,1" Clamping pipe

- cables

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

25-1010

NUT,5/8"-11, G5

1шт.

13

49840

CLAMP

- cables

1шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

D43390

CABLE

- ground

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

R26137

STARTER MOTOR

MOTOR - starting, 24V, parts list Figure 84 and 86

1шт.

20

13-932

BOLT,Hex, 9/16" - 12 x 2", Gr 5

HHCS - 1/2" - 13 NC x 2"

2шт.

21

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

22

92-8

LOCK WASHER,1/2"

3шт.

23

R24323

WASHER

- hardened

3шт.

24

R29352

HARNESS

- rear light and starter button

1шт.

25

49852

PTO SHAFT

- harness

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

D47783

CLAMP

- hose and harness

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

49839

CLAMP

- harness

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

36

R27209

ELECTRICAL WIRE

WIRE - D34924 switch

1шт.

36a

R40985

ELECTRICAL WIRE

WIRE - R40432 switch

1шт.

37

D34924

SWITCH

- uses spade connection, use R40998 kit, see Figure 106

1шт.

37a

R40432

SWITCH

- uses plug connection

1шт.

38

F42236

STEP BOLT

BOLT - shoulder

1шт.

39

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

40

F43611

CLIP

CLAMP - wire

3шт.

41

A18911

ELECTRICAL WIRE

WIRE - rear light

1шт.

42

D42919

LOOM

- wire

1шт.

43

L45149

HEADLIGHT

LIGHT - rear, parts list Figure 104

1шт.
