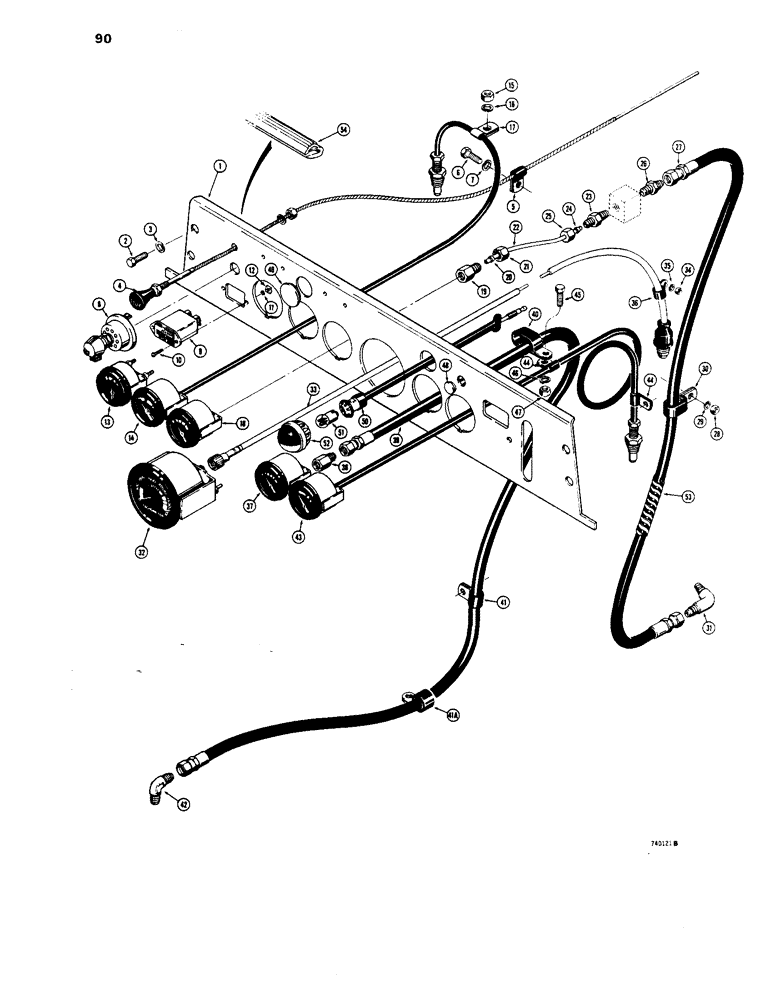

Запчасти Case 1450 (090) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

R29345

PANEL - instrument

1шт.

2

113-279

BOLT

HHCS - 3/8" - 16 NC x 3/4", plated

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

R42064

KNOB

CONTROL - engine shut-off, fuel

1шт.

5

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- cable

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

R27539

SWITCH

- light

1шт.

9

L49907

GAUGE

METER - hour

1шт.

10

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, fillister head, no. 5 - 40 NC x 1/2"

2шт.

11

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

12

129-44

SQUARE NUT,Sq, #5-40

2шт.

13

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

14

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

15

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

16

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

17

49857

CLAMP

- cable

1шт.

18

R38647

ELECTRICAL GAUGE

GAUGE - pressure, engine oil

1шт.

D35091

PIPE FITTING

FITTING - compression, female, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - straight, female

1шт.

20

D37176

SLEEVE

1шт.

21

D37362

TUBE NUT

1шт.

22

D43836

TUBE

- nylon

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - compression, male, original equipment - weather head, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - straight, male

1шт.

24

D37176

SLEEVE

1шт.

25

D37362

TUBE NUT

1шт.

26

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - straight, male

1шт.

27

D95117

HOSE

- engine oil pressure, 57" (148 mm)

1шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

D47783

CLAMP

- hose

1шт.

31

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90deg.

1шт.

32

R27126

TACHOMETER

- RPM

1шт.

33

R29332

FLEXIBLE DRIVE SHAFT

CABLE - tachometer

1шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

49851

SHIELD

- cable

1шт.

37

R38646

GAUGE

- oil pressure, transmission

1шт.

38

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

FITTING - straight, male, female

1шт.

39

R31108

HOSE

- transmission oil pressure, 108" (2743 mm)

1шт.

40

D47783

CLAMP

- hose

1шт.

41

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- hose

1шт.

41a

49774

CLAMP

- hose

1шт.

42

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

FITTING - 45deg., male

1шт.

43

R38645

GAUGE

- temperature, torque converter

1шт.

44

49859

CLAMP

- tube

2шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

48

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16", if used

1-2шт.

49

353-413

PLUG,Dome, 1.187" hole, Nylon

- button, 1-3/16", if used

2шт.

L43830

HEADLIGHT

LIGHT - dash, Includes: Ref. 50 - 52

2шт.

50

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

51

T39535

BULB

- light, No. 1251

1шт.

52

L30467

LENS

- light

1шт.

53

R12586

TAPE

WRAP - D95117 hose

1шт.

54

F43092

SEAL

- panel

1шт.
