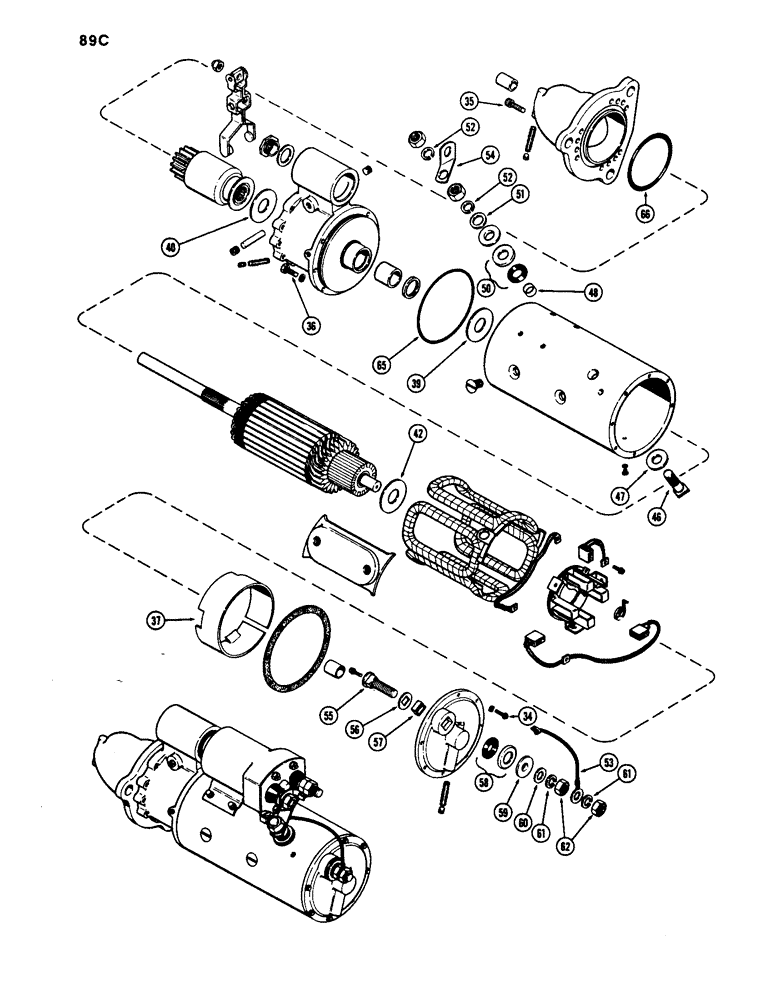

Запчасти Case 1450 (089C) - R37343 STARTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
R37343
X
STARTER ASSEMBLY - continued from Figure 89A, Includes: Ref. 34 - 66
1шт.
A45662
KIT
PACKAGE - mounting bolts, Includes: Ref. 34 - 36
1шт.
34
NSS
NOT SOLD SEPARAT
BOLT - commutator cover to frame, no. 10 - 32 x 3/4" hex head
7шт.
35
NSS
NOT SOLD SEPARAT
BOLT - drive housing to intermediate housing, 1/4 - 28 x 7/8" socket head
6шт.
36
NSS
NOT SOLD SEPARAT
BOLT - intermediate housing to frame, 1/4 - 28 x 1" hex head
7шт.
37
A45641
INSULATOR
INSULATION - field, package of 10
1шт.
A45657
KIT
PACKAGE - thrust washers, Includes: Ref. 39 - 42
1шт.
39
NSS
NOT SOLD SEPARAT
WASHER - intermediate housing, 1/8" (3.18 mm) thick
1шт.
39
NSS
NOT SOLD SEPARAT
WASHER - intermediate housing, 1/32" (0.79 mm) thick
1шт.
40
NSS
NOT SOLD SEPARAT
WASHER - drive housing, 3/32" (2.38 mm) thick
1шт.
42
NSS
NOT SOLD SEPARAT
WASHER - commutator end, 1/32" (0.79 mm) thick
4шт.
42
NSS
NOT SOLD SEPARAT
WASHER - commutator end, 3/64" (1.19 mm) thick
2шт.
A45660
KIT
PACKAGE - field terminal stud, Includes: Ref. 46 - 52
1шт.
46
NSS
NOT SOLD SEPARAT
STUD - field terminal
1шт.
47
NSS
NOT SOLD SEPARAT
WASHER - insulation, inner
1шт.
48
NSS
NOT SOLD SEPARAT
WASHER - insulation, inner
1шт.
NSS
NOT SOLD SEPARAT
WASHER - insulation, in frame
1шт.
50
NSS
NOT SOLD SEPARAT
WASHER - insulation, outer
1шт.
51
NSS
NOT SOLD SEPARAT
WASHER - steel, outer
1шт.
52
NSS
NOT SOLD SEPARAT
WASHER - cap
1шт.
53
A45643
ASSEMBLY
LEAD - solenoid to commutator end terminal stud
1шт.
54
A45642
CONNECTION
CONNECTOR - solenoid to field terminal
1шт.
A45663
KIT
PACKAGE - commutator end terminal stud, Includes: Ref. 55 - 62
1шт.
55
NSS
NOT SOLD SEPARAT
STUD - terminal
1шт.
56
NSS
NOT SOLD SEPARAT
WASHER - insulation, inner, neoprene
1шт.
57
NSS
NOT SOLD SEPARAT
WASHER - insulation, inner
1шт.
58
NSS
NOT SOLD SEPARAT
BUSHING - insulation, in end frame
1шт.
59
NSS
NOT SOLD SEPARAT
WASHER - insulation, outer, bakelite
1шт.
60
NSS
NOT SOLD SEPARAT
WASHER - steel, outer
1шт.
61
NSS
NOT SOLD SEPARAT
WASHER - 1/2" lock
2шт.
62
NSS
NOT SOLD SEPARAT
NUT - terminal stud, 1/2" - 13 hex
2шт.
63
A45638
PLUG
- neoprene, package of 6
1шт.
64
A45646
SNAP RING
O-RING - 3/16 x 5/16 x 1/16" (4/76 x 7.94 x 1.59 mm), package of 10
1шт.
65
D31954
O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro
- 4-1/8 x 4-3/8 x 1/8" (104.78 x 111.13 x 3.18 mm)
1шт.
66
A27994
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
- 3-1/4 x 3-1/2 x 1/8" (82.55 x 88.9 x 3.19 mm)
1шт.
Выбрано товаров: 35
