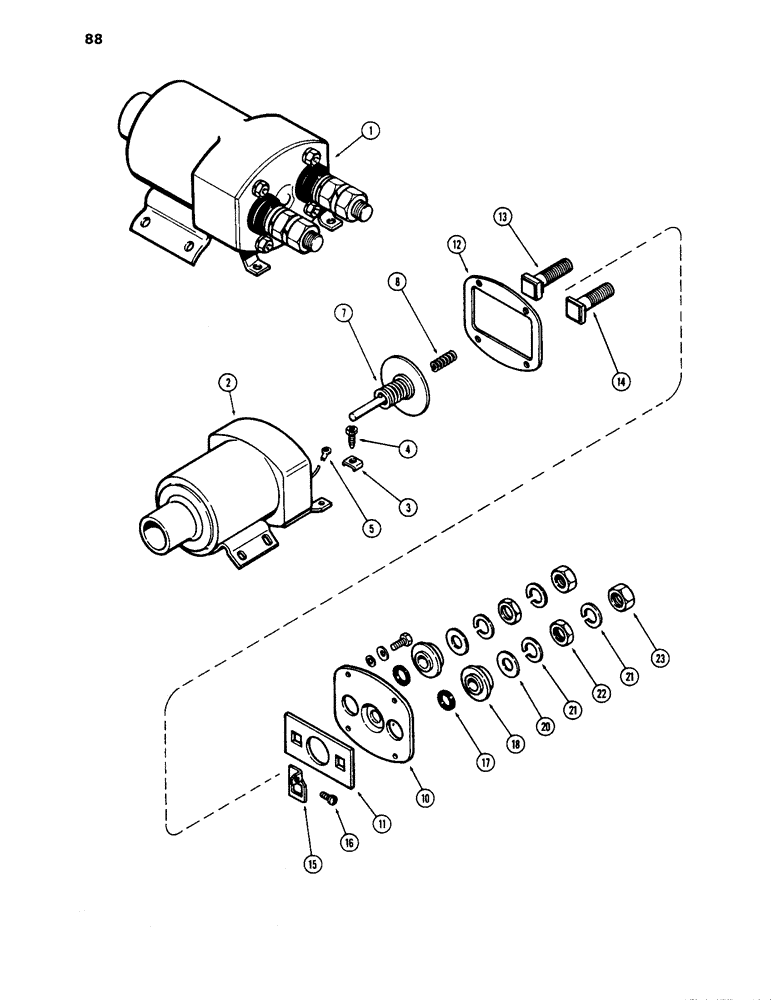

Запчасти Case 1450 (088) - A42376 SOLENOID (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY.

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

1шт.

5

A42408

ELECTRICAL WIRE

WIRE - gound

1шт.

7

D32498

CONTACT

ASSY.

1шт.

8

A42411

VALVE SPRING

SPRING - contact return

1шт.

A42412

PLATE

ASSY. - terminal, Includes: Ref. 10 - 23

1шт.

10

A42410

PLATE

- terminals

1шт.

11

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

12

A42260

GASKET

- terminal plate

1шт.

13

A42413

STUD

TERMINAL - battery (1/2" N.C. with 21/32" thread length)

1шт.

14

D32506

STUD

TERMINAL - starter (1/2" N.C. with 1-3/16" thread length)

1шт.

15

D29910

SUPPORT

- coil lead (Replaces A42406)

1шт.

16

175-56

SCREW - coil lead (#6-32 x 3/16" truss hd.) Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal insulating (1/2 x 11/16 x 3/32" rubber)

2шт.

18

A42409

BUSHING

INSULATOR - terminals (Order A43701 package)

2шт.

20

D30006

WASHER

- (1/2 x 7/8 x 1/32" steel)

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

4шт.

22

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
