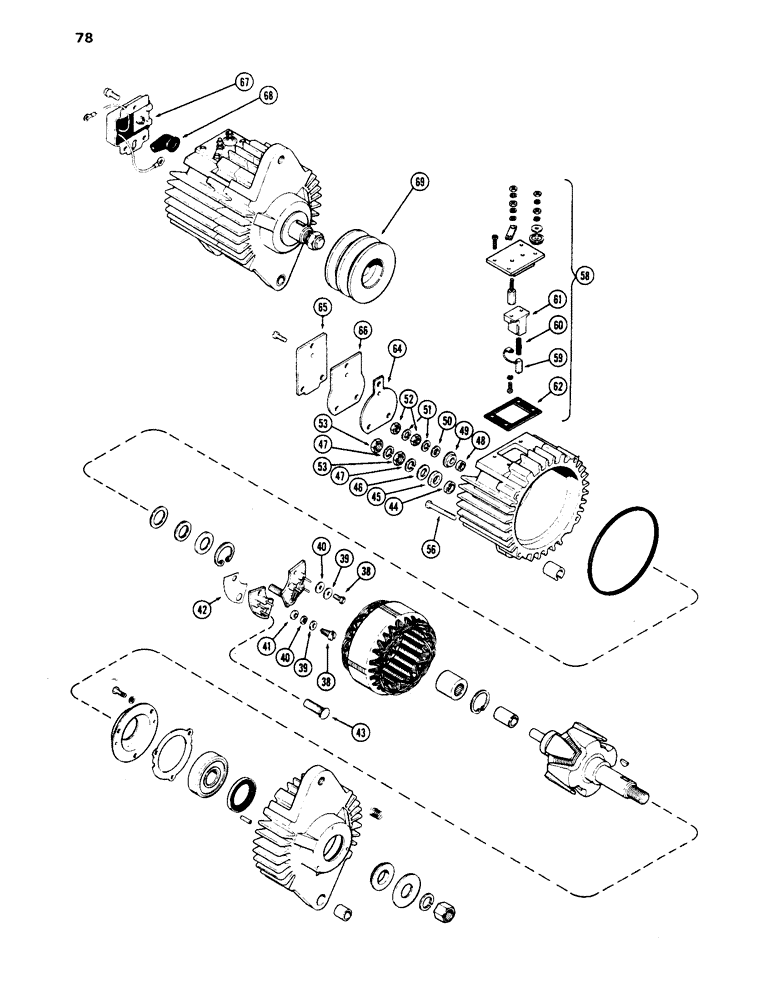

Запчасти Case 1450 (078) - R27267 AND R34730 ALTERNATORS (04) - ELECTRICAL SYSTEMS

A44794

ALTERNATOR

ALTERNATOR ASSY. - (continued from figure 76), Includes: Ref. 38 - 66

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

A45276

STUD

PACKAGE - terminal stud, Includes: Ref. 38 - 50

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - plate mtg. (#10-24 x 11/16" self tapping)

2шт.

39

NSS

NOT SOLD SEPARAT

WASHER - plate screw (3/16 x 9/16 x 3/64" steel)

2шт.

40

NSS

NOT SOLD SEPARAT

INSULATOR - plate screws (3/16 x 5/16 x 1/8")

2шт.

41

NSS

NOT SOLD SEPARAT

WASHER - insulating (3/16 x 9/16 x 1/16")

1шт.

42

NSS

NOT SOLD SEPARAT

INSULATION - positive plate

1шт.

43

NSS

NOT SOLD SEPARAT

STUD - positive terminal (7/16" N.C. x 1-1/2")

1шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - pos. term. (7/16 x 9/16 x 11/32")

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - insulating, pos. term. (7/16 x 3/4 x 1/8")

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - pos. term. (7/16 x 3/4 x 3/64" steel)

1шт.

47

NSS

NOT SOLD SEPARAT

WASHER - pos. term. (7/16" lock)

2шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - neg. term. (1/4 x 3/8 x 5/16")

1шт.

49

NSS

NOT SOLD SEPARAT

INSULATOR - neg. terminal (1/4" dia. hole)

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER - neg. term. (1/4 x 9/16 x 3/64" steel)

1шт.

51

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Neg. term. 1/4"

2шт.

52

25-114

NUT,1/4"-28, G5

NUT - neg. term. (1/4" N.F. hex.)

2шт.

53

25-107

NUT,7/16"-14, G5

NUT - pos. term. (7/16" N.C. hex.)

2шт.

56

A45247

BOLT

BOLT - thru (Replaces A44465)

4шт.

58

A44445

HOLDER

HOLDER ASSY. - brush, Includes: Ref. 59 - 62

1шт.

59

A44447

BRUSH, COMMUTATOR

BRUSH BRUSH SET - (Set of 2)

1шт.

60

A44450

SPRING

SPRING SET - brush (Set of 2)

1шт.

61

A44446

SPARE PART HOLDER - brushes

1шт.

62

A44449

SPARE PART GASKET - brush, Serial Range: holder-head

1шт.

A44461

KIT

PACKAGE - reg. mtg. parts, Includes: Ref. 64 - 66

1шт.

64

A44462

SPARE PART GASKET - regulator

1шт.

65

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

66

NSS

NOT SOLD SEPARAT

GASKET - cover plate

1шт.

67

A45256

REGULATOR

REGULATOR ASSY. - voltage (Repl. A44572), Includes: Ref. 68

1шт.

68

S64612

BOOT

BOOT - reg. terminals

2шт.

69

A44442

PULLEY

PULLEY - alternator

1шт.
