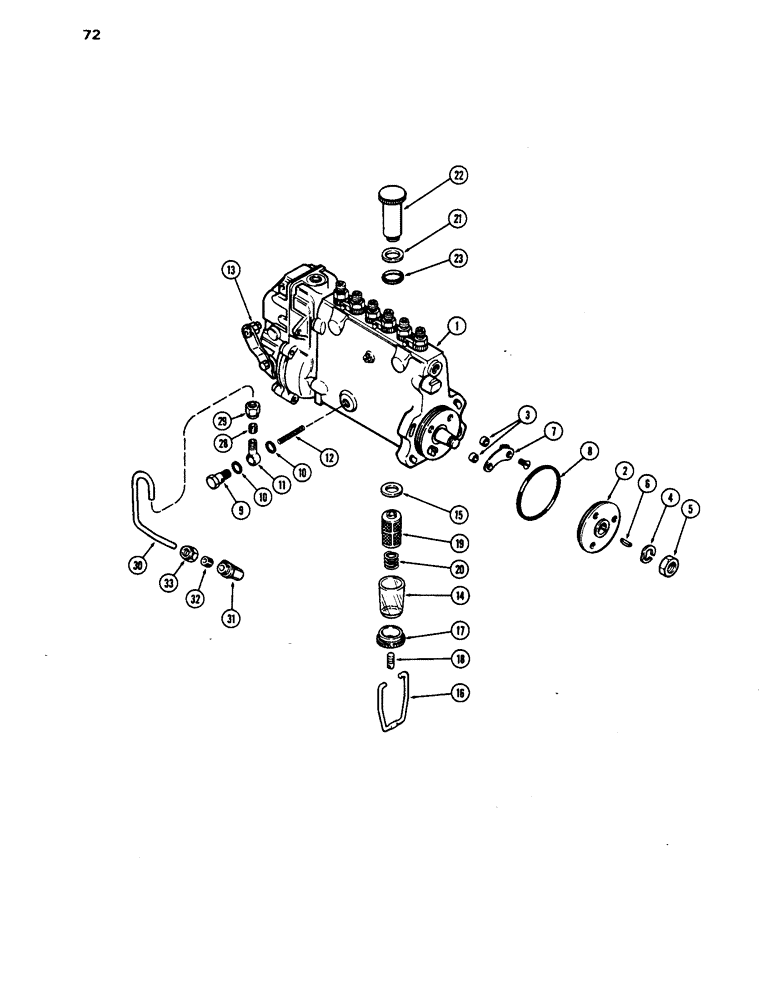

Запчасти Case 1450 (072) - A66215 INJECTION PUMP, WITH LUBE TUBE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM

1

A66215

PUMP

ASSY. - fuel injection, Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- (2-15/16 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting (copper)

2шт.

11

A25191

FITTING

- oil tube (banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

513-2200

BOLT

SCREW - lock, stop control cable

1шт.

14

A43347

BOWL

- filter (glass)

1шт.

15

A43346

GASKET

- filter bowl

1шт.

16

A43350

CLAMP

BAIL - bowl hanger

1шт.

17

A43348

NUT

- bowl seat

1шт.

18

A43349

STUD

- nut tension

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- port (copper)

1шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (Replaces A44761)

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

30

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY., Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
