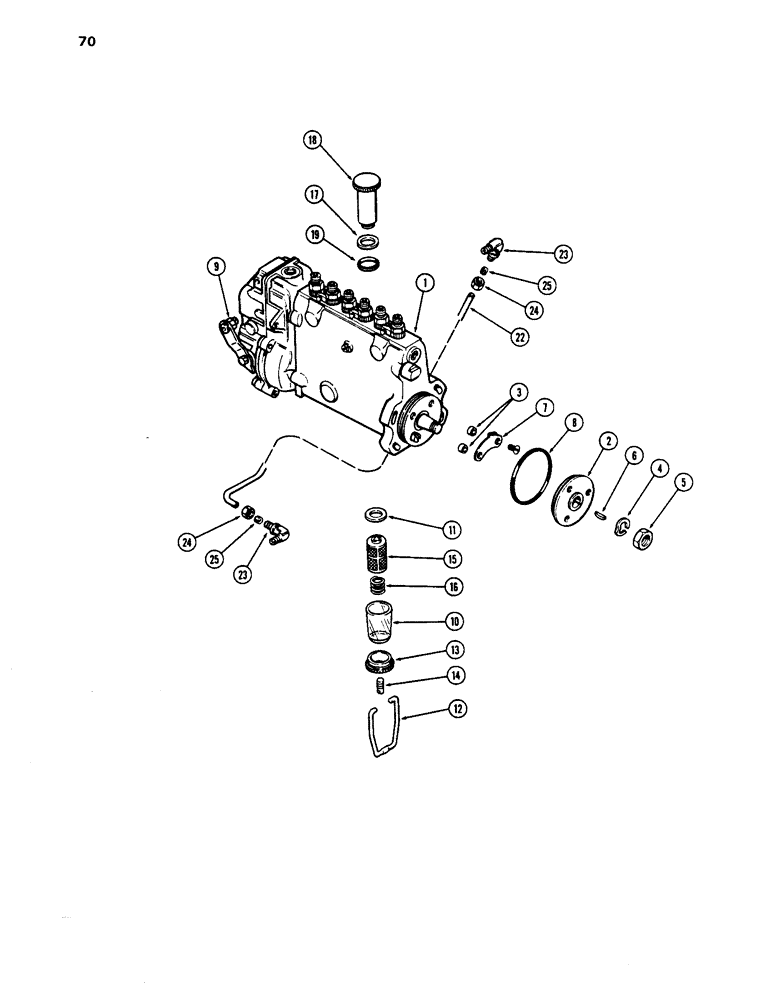

Запчасти Case 1450 (070) - A138065 INJECTION PUMP, WITH LUBE TUBE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

1

A138065

PUMP

ASSY. - fuel injection, Includes: Ref. 2 - 19

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub retaining

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- (2-15/16 x 3-3/16 x 1/8")

1шт.

9

513-2200

BOLT

SCREW - lock, stud control cable

1шт.

10

A43347

BOWL

- filter (glass)

1шт.

11

A43346

GASKET

- filter bowl

1шт.

12

A43350

CLAMP

BAIL - bowl hanger

1шт.

13

A43348

NUT

- bowl seat

1шт.

14

A43349

STUD

- nut tension

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element

1шт.

17

A43351

SEAL

- port (copper)

1шт.

18

A43343

CARTRIDGE

PRIMER ASSY. - hand pump, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand pump

1шт.

22

A136903

TUBE

-, Serial Range: pump-block

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY., Includes: Ref. 24 and 25

2шт.

24

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.
