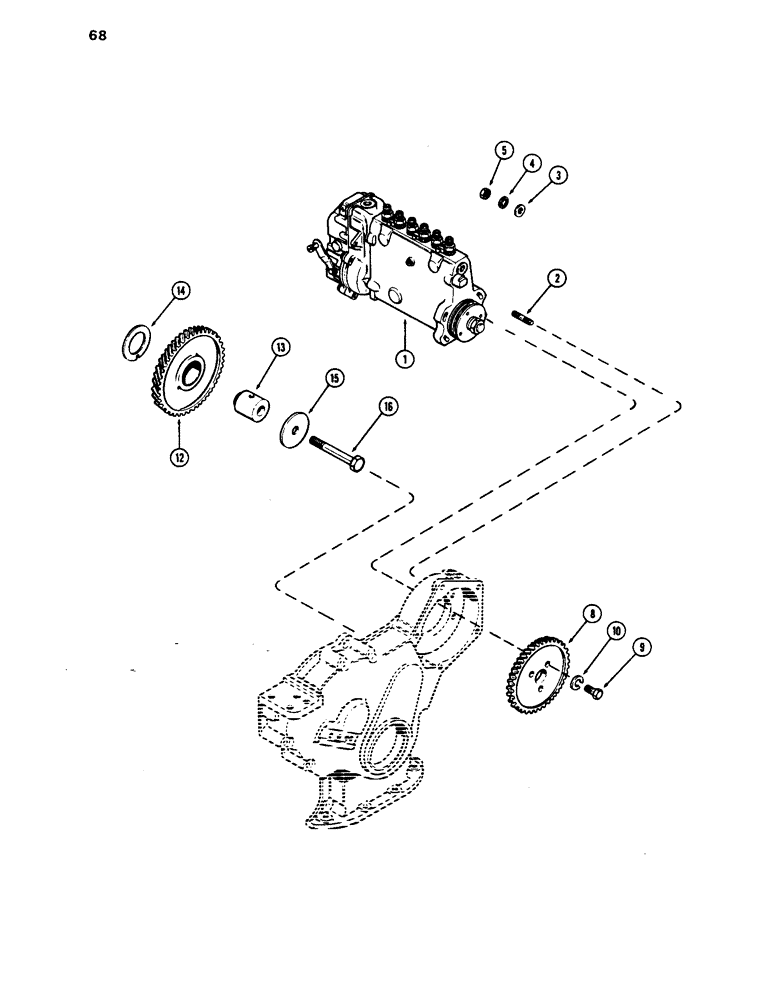

Запчасти Case 1450 (068) - INJECTION PUMP DRIVE, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figures 70 & 72)

1шт.

2

A58689

STUD

Pump mounting (3/8" N.C. x 1-7/8")

3шт.

2

A142092

STUD

Pump mounting (3/8" N.C. x 1-7/8" with hole for anti-tamper wire)

1шт.

3

A57470

WASHER

3/8 x 11/16 x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

(Used with A58689 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

(Used with A142092 stud)

1шт.

8

A58693

GEAR

Injection pump drive

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

12

A62542

GEAR

ASSY, Idler, with bushing

1шт.

13

A58690

SHAFT

Idler gear

1шт.

14

A58691

WASHER

Thrust, idler gear

1шт.

15

A58692

PLATE

Thrust, idler gear

1шт.

16

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler gear (1/2 x 4-1/2" N.C. hex.)

1шт.
