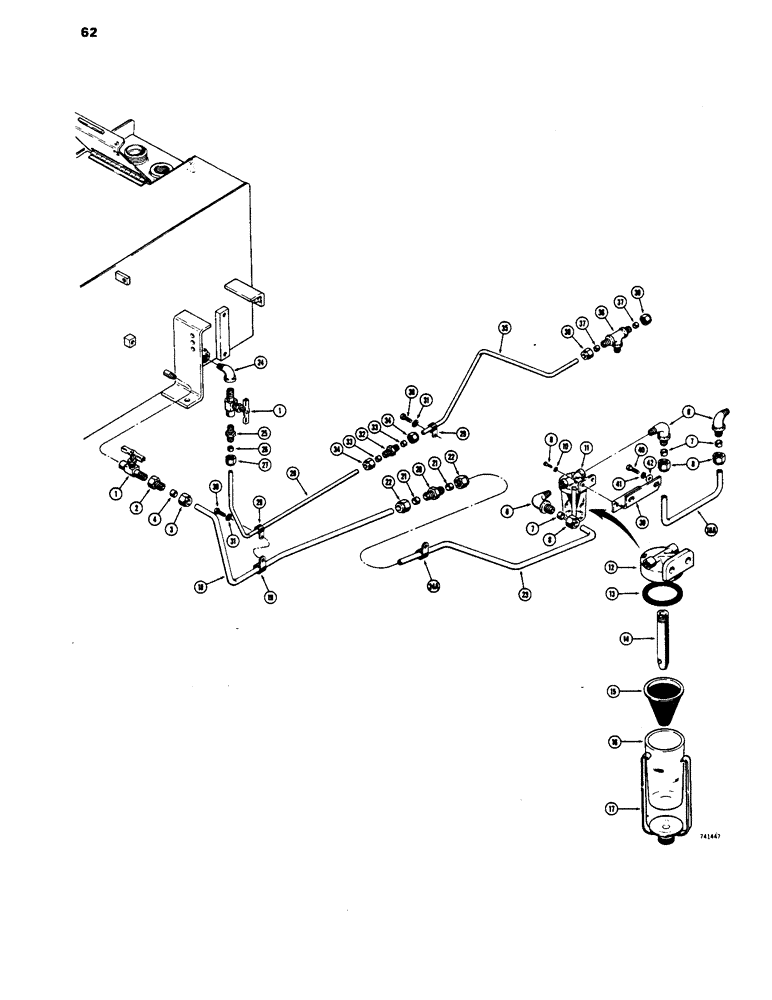

Запчасти Case 1450 (062) - FUEL LINES (03) - FUEL SYSTEM

1

217-94

SHUT-OFF VALVE

SHUT-OFF - fuel

2шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

ADAPTER - compression fitting, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

3

222-114

NUT,5/8"-24

NUT - adapter

1шт.

4

222-104

SLEEVE,3/8" Tube

- adapter

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - flex, male, Includes: Ref. 6 - 8

3шт.

6

NSS

NOT SOLD SEPARAT

BODY - 90deg.

1шт.

7

222-104

SLEEVE,3/8" Tube

1шт.

8

222-114

NUT,5/8"-24

NUT

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

R18798

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 12 - 17

1шт.

12

R21356

HOUSING

BODY - strainer

1шт.

13

R21357

GASKET

- bowl

1шт.

14

R21360

TUBE,0.687" DIA x 3.344" L

- strainer

1шт.

15

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

16

R21361

BOWL

- strainer

1шт.

17

R21358

CLAMP

BAIL - strainer

1шт.

18

R31147

TUBE

- fuel supply, rear

1шт.

18a

R31149

TUBE

- supply, strainer to injection pump

1шт.

19

49852

PTO SHAFT

- tube

1шт.

222-5

FITTING,5/8"-24 Flex Tube

- flex, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - straight

1шт.

21

222-104

SLEEVE,3/8" Tube

2шт.

22

222-114

NUT,5/8"-24

NUT

2шт.

23

R31148

TUBE

- fuel supply, front

1шт.

24

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

FITTING - 90deg., street

1шт.

24a

A20688

CLIP

CLAMP - tube

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

- connector, flex, straight, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - straight

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT

1шт.

28

R31151

TUBE - fuel return, rear

1шт.

29

49851

SHIELD

- tube

2шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

222-3

FITTING,1/2"-24 Flex Tube

- flex, straight, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - straight

1шт.

33

222-102

SLEEVE,1/4" Tube

2шт.

34

87017024

TUBE NUT,1/2"-24

NUT

2шт.

35

R31150

FUEL TUBE,0.25" OD

TUBE - fuel return, front

1шт.

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - male, compression, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

TEE - male

1шт.

37

222-102

SLEEVE,1/4" Tube

Tee 1/4" Tube

2шт.

38

87017024

TUBE NUT,1/2"-24

NUT - tee

2шт.

39

R31146

MOUNT - strainer, fuel

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

195-25

WASHER,3/8"

- flat, 3/8"

2шт.
