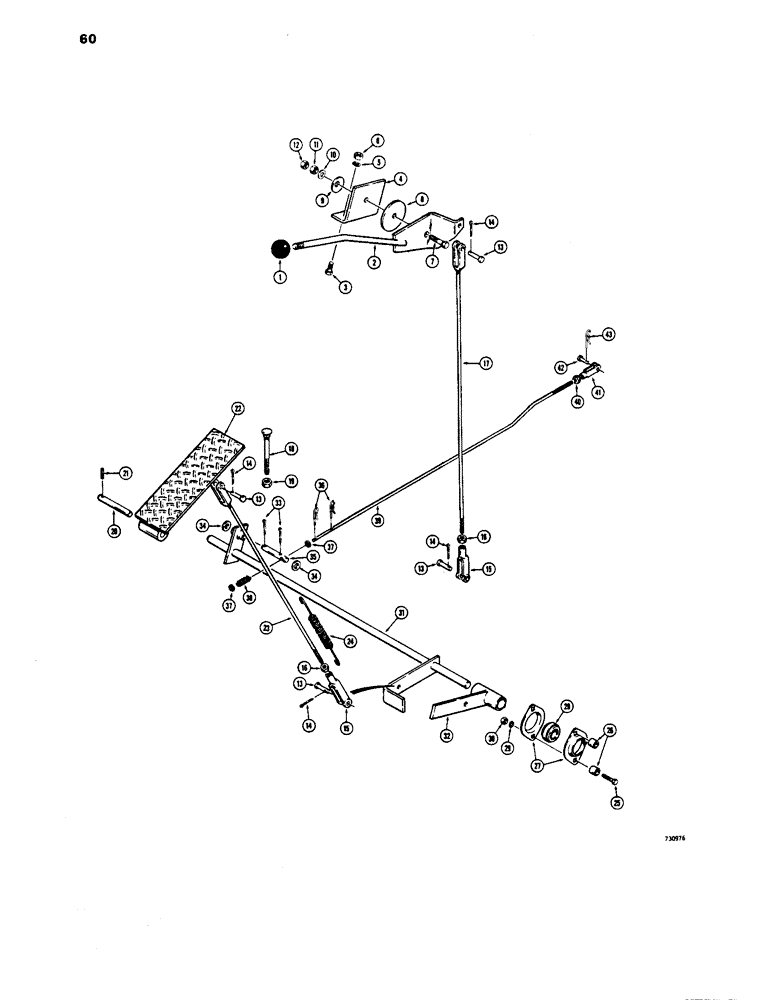

Запчасти Case 1450 (060) - HAND AND FOOT THROTTLE CONTROLS (03) - FUEL SYSTEM

1

D49996

KNOB

- lever

1шт.

2

R29348

LEVER

- hand throttle

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R29347

BRACKET

- mounting, hand throttle

1шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R15071

DISC

- friction

1шт.

9

R14771

WASHER

- Belleville

1шт.

10

95-8

WASHER,1/2"

flat 1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

1шт.

13

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

14

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable

2шт.

16

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

17

R28795

ROD

- connecting, hand throttle to connecting lever

1шт.

18

111-503

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - round head, square shoulder, 1/2" - 13 NC x 4"

1шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

20

R17364

SHAFT

- pedal, foot throttle

1шт.

21

135-737

GROOVED PIN,5/32" x 1", Type E

PIN - roll, 5/32" x 1"

1шт.

22

R28786

PEDAL

- foot throttle

1шт.

23

R28796

ROD

- connecting, foot throttle to cross shaft

1шт.

24

R33370

SPRING

- throttle return, pedal

1шт.

25

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

4шт.

26

D34162

SPACER

- bearing

4шт.

27

F13526

FLANGED BEARING

FLANGE - bearing

4шт.

28

R25295

BALL BEARING,0.627" ID x 1.575" OD x 1.095"

BEARING ASSEMBLY - ball

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

25-104

NUT,1/4"-20, G5

4шт.

31

R28787

SHAFT

- cross, throttle connecting

1шт.

32

R28791

LEVER

- connecting, hand throttle

1шт.

33

132-26

COTTER PIN

PIN - cotter, 3/32" x 1/2"

2шт.

34

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

35

D47686

SHAFT

- override

1шт.

36

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - cotter, hair

2шт.

37

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

38

F62245

SPRING

- override

1шт.

39

R28794

ROD

- connecting, accelerator

1шт.

40

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

41

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable

1шт.

42

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

43

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - cotter, hair

1шт.
