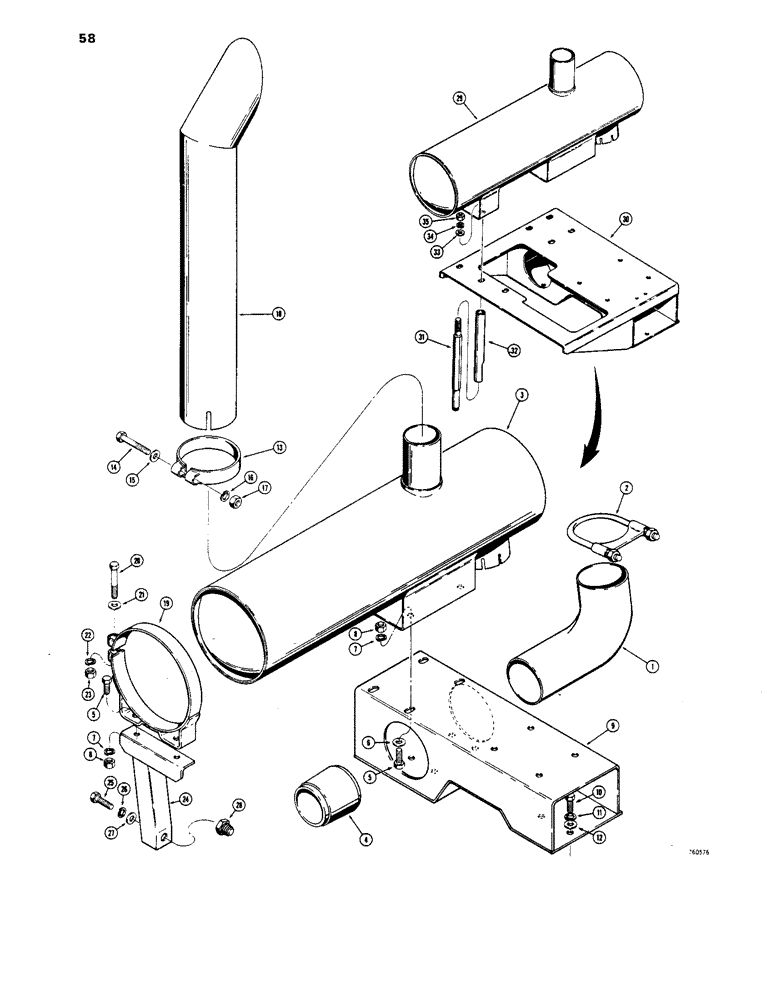

Запчасти Case 1450 (058) - MUFFLERS (02) - ENGINE

1

R28775

TUBE,3.874" ID x 4" OD x 9.5, 5.5" L

- muffler

1шт.

2

A64801

CLAMP

- tube M

1шт.

3

R29596

MUFFLER

- exhaust, before tractor sn 8379608

1шт.

Models with aspirated cup, must have 1-1/2" (38.1 mm) cut off muffler outlet.

1шт.

This model has one connector should dealer want to order.

1шт.

4

A65554

TUBE

CONNECTOR -, Serial Range: muffler-blower

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

9

W129234

TUBE

SUPPORT - R29596 muller

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

13

R29460

CLAMP

- stack

1шт.

14

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

R29457

MUFFLER

STACK - exhaust, pipe

1шт.

Models with aspirated dust cup, must have 2" x 3-13/32" (50.8 mm x 61.214 mm) slot cut into stack.

1шт.

19

R32640

BAND

- R29596 muffler mounting

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

21

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

24

R32635

SUPPORT - R29596 muffler, rear

1шт.

25

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

1шт.

26

92-8

LOCK WASHER,1/2"

1шт.

27

95-8

WASHER,1/2"

flat 1/2"

1шт.

28

R32639

ADAPTER

- support, R29596 muffler

1шт.

29

R36974

MUFFLER

- exhaust, used tractor sn 8379608 and after

1шт.

Models with aspirated cup, must have 1-1/2" (38.1 mm) cut off muffler outlet.

1шт.

This model has two connectors should dealer want to order.

1шт.

30

R36968

SUPPORT

- R36974 muffler

1шт.

31

R36975

STEM

POST - R36974 muffler

1шт.

32

R36976

BUSHING

SPACER - R36974 muffler

1шт.

33

95-8

WASHER,1/2"

flat 1/2"

1шт.

34

92-8

LOCK WASHER,1/2"

1шт.

35

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
